With purposeful organization, Unity projects can easily avoid becoming overwhelming and difficult to navigate. In this tutorial, you'll learn some best practices for keeping your projects organized.

Games

Film

Automotive

Introduction to 3D Interactive Development - Workshop project files

Introduction to 3D Mobile Games for Engineers--Companion Tutorials (2019.1)

Introduction to 3D Mobile Games for Artists--Companion Tutorials (2018.4)

Preparing CAD Assets for Unity with PiXYZ Studio--Companion Tutorials (2019.3)

Creating Mobile AR Applications with AR Foundation--Companion Tutorials (2019.2 i)

VR Curricular Framework Resources

AR Curricular Framework Resources

Game Design Curricular Framework Resources

Architecture, Engineering and Construction Curricular Framework Resources

Unity for Artists Curricular Framework Resources

AI, ML Curricular Framework Resources

This tutorial has been verified using Unity 2019 LTS

Projects in Unity often contain many types of files; the quantity of which usually increases dramatically as the project grows. New users often describe having difficulty finding a specific object in a scene or an asset in a large project. However, with purposeful organization, Unity projects can easily avoid becoming overwhelming and difficult to navigate. Unity assets are not file path specific, meaning that you may freely move objects, create new folders, and generally reorganize the Assets folder without any references being lost.

1. Right click in the Project window and click on Create > Folder.

2. Give the folder a descriptive name that will reference what it will contain.

3. Left-click and drag the appropriate object types into the folder (Figure 01).

Project folders can also be freely moved and nested beneath other folders.

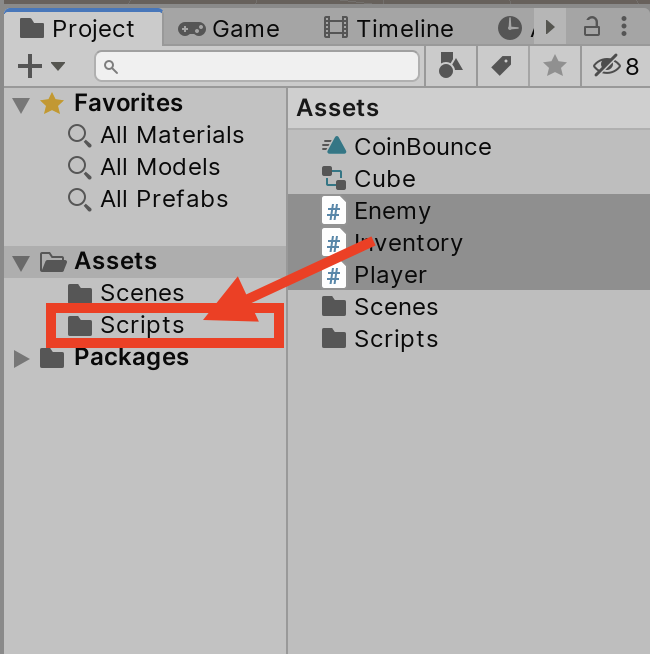

Figure 01: Left-click and drag files into new folders.

Complex scenes often have a very long list of objects in the Hierarchy. Empty GameObjects can be used to group common objects together to help with organization.


1. Right-click in the Hierarchy and select Create Empty.

2. In the Inspector, rename the GameObject to reflect what it will group.

3. Reset the transformations so it appears at 0, 0, 0. Alternatively, move the GameObject to an area in the scene that would represent the appropriate pivot point of the group.

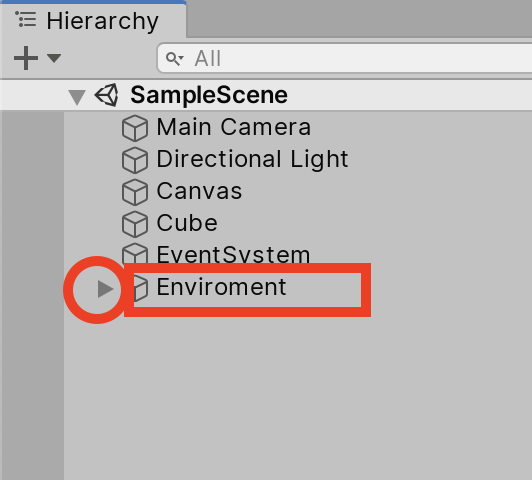

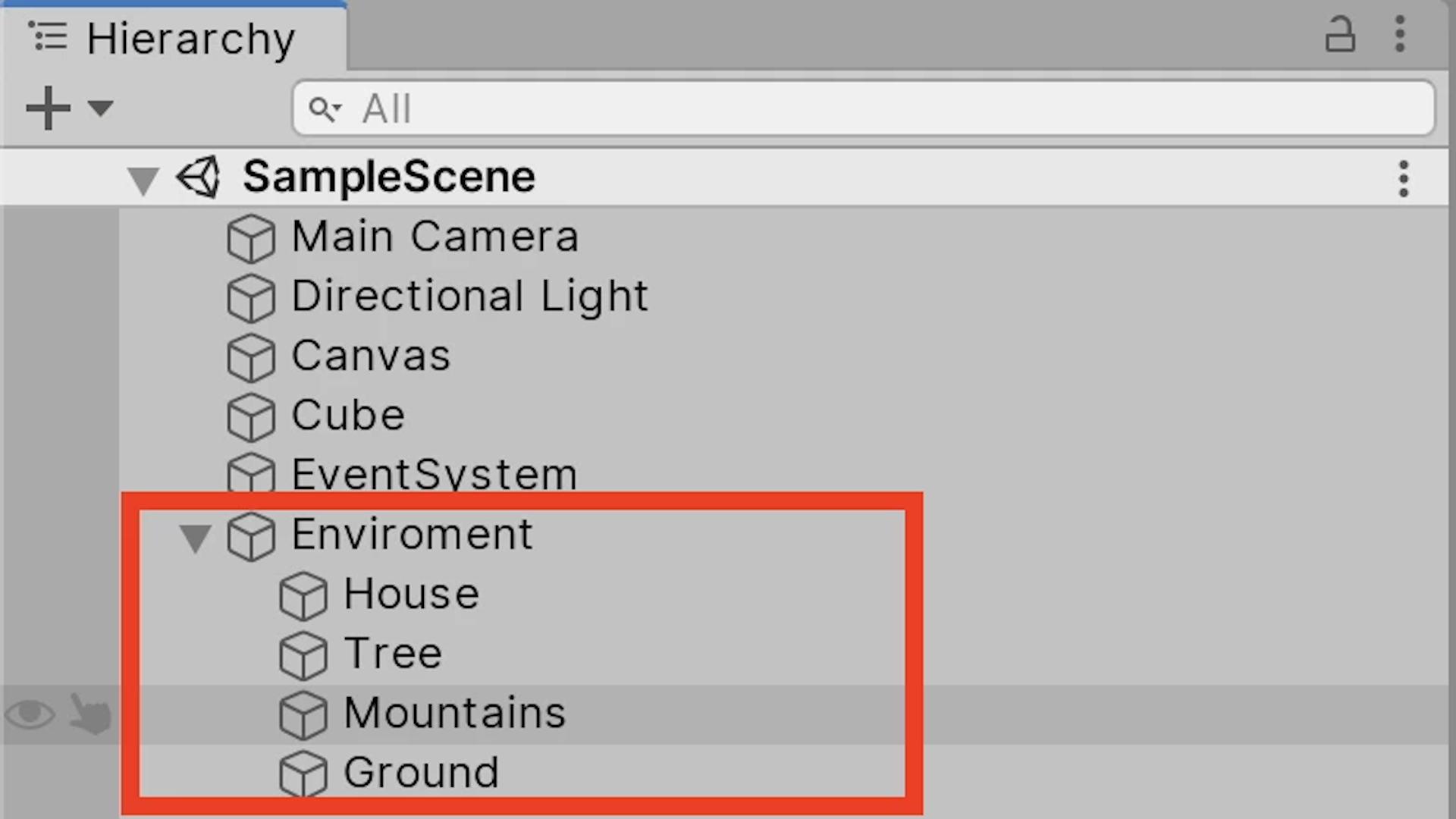

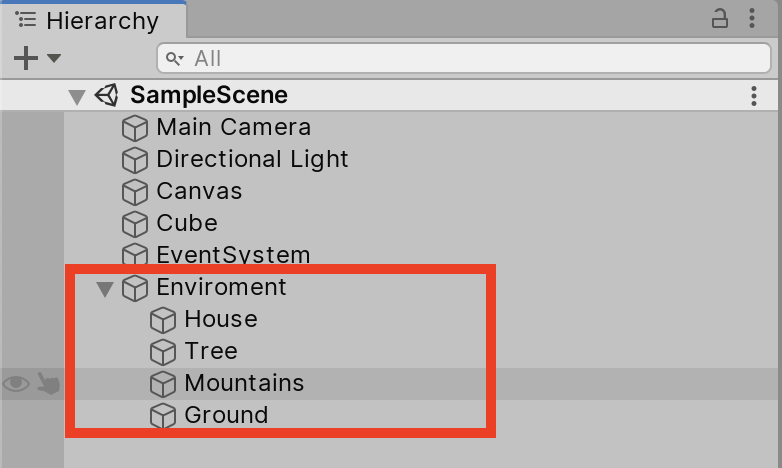

4. Select all of the objects to be grouped on top of the GameObject. The group can now be collapsed in the Hierarchy (Figure 02).
