Challenge: Apply Nodes to the Flag

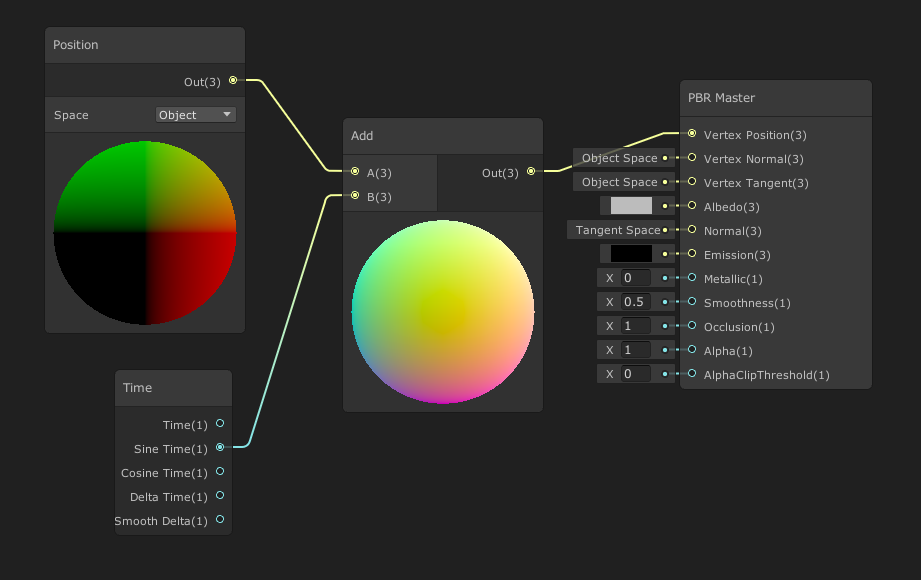

Use the position node to offset the vertices in the Flag asset.

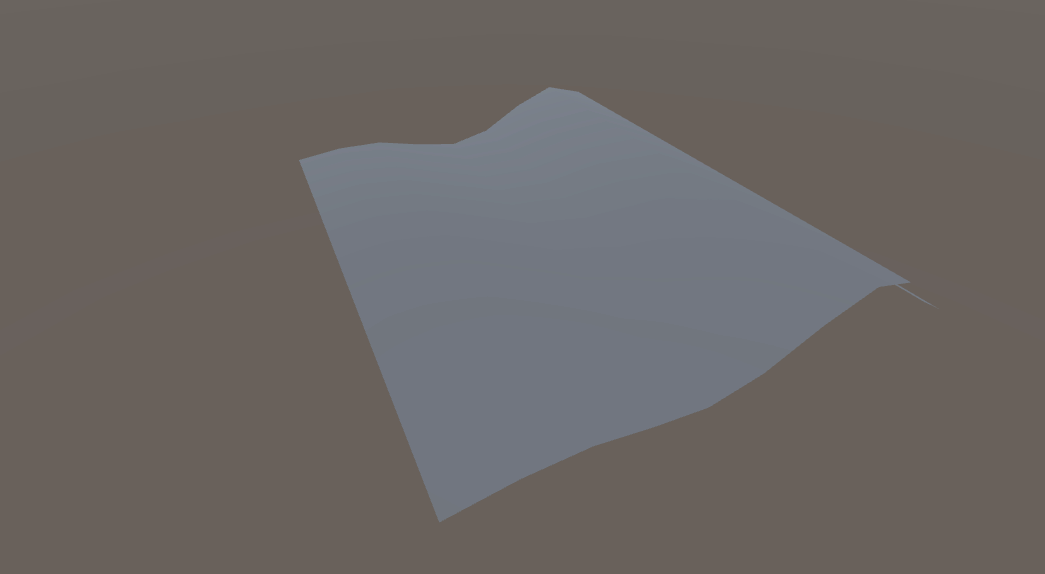

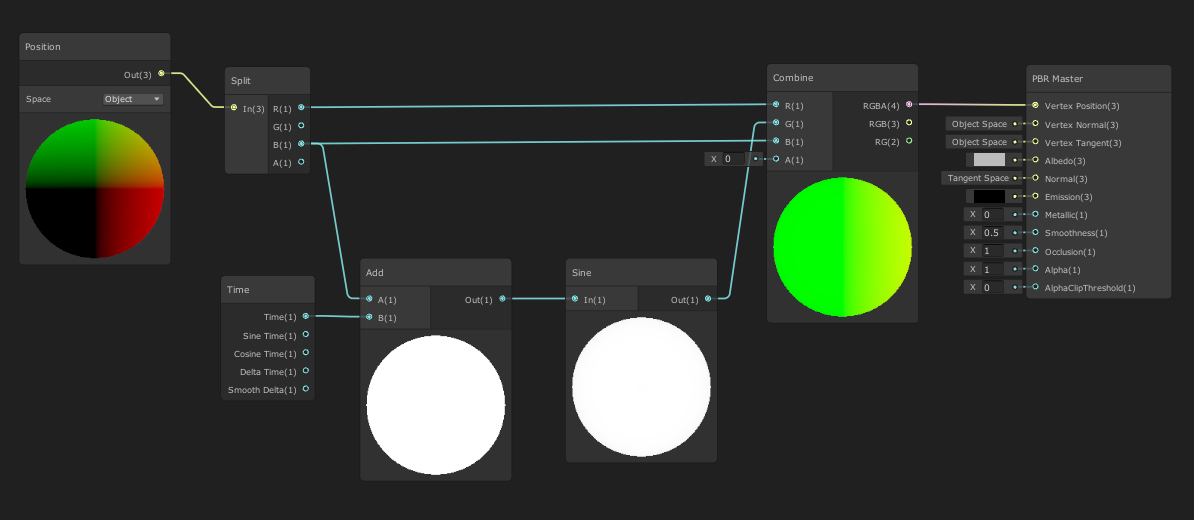

Add a Sine node and Time node to adjust the vertices over time. Then isolate the effect to one axis to give wave effect.

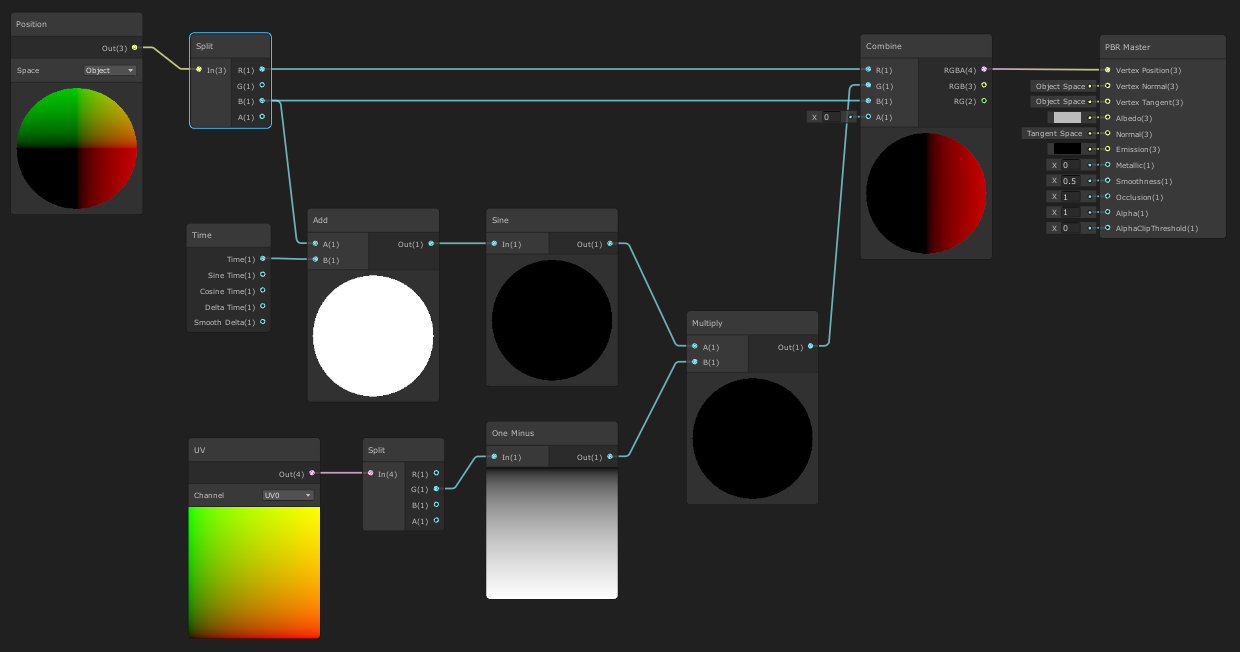

Use a UV node to mask the movement of the flag to make one edge remain stationary (end attached to flag pole) while the other end is free to move

• If you have successfully been able to make your flag wave consider adding parameters to control frequency and amplitude.

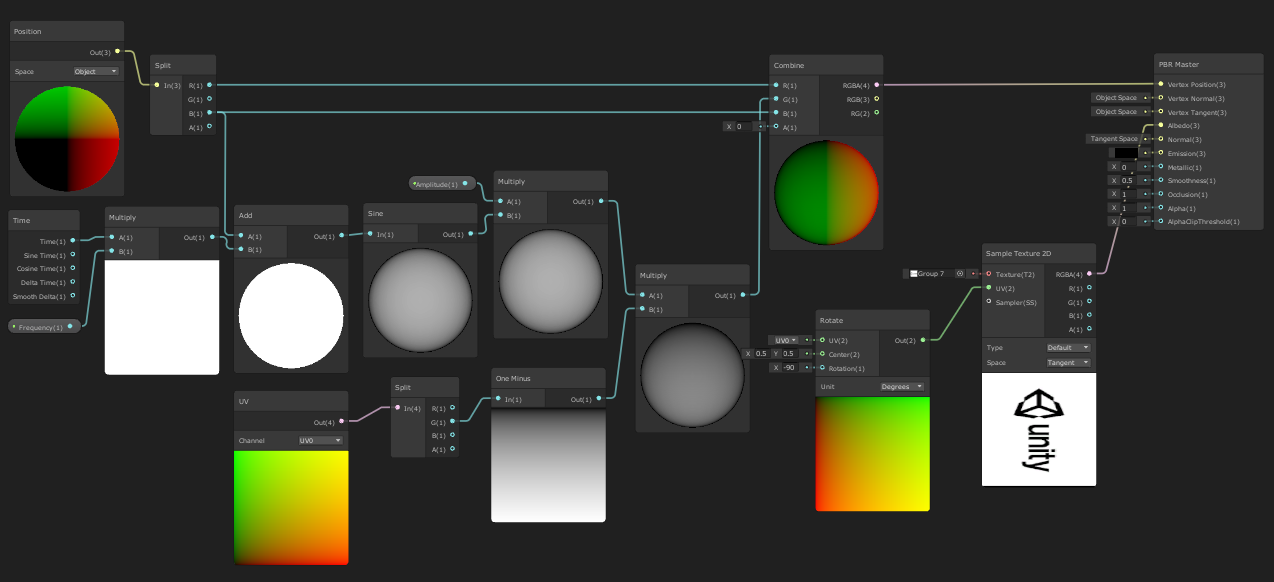

• Then use the Texture2D node to give the flag a texture

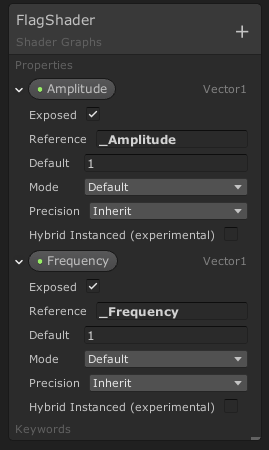

Blackboard Properties can be exposed and edited the Hierarchy, while being treaded like other nodes in the Shadergraph.
