This tutorial is a review and reference of the essentials of the Unity Editor. Keep this tutorial handy as a reminder of the windows, tools, and keystrokes you can use to manage your scenes and assets and navigate in the Scene view.

The default Unity Editor layout is organized with the most important windows you’ll need positioned to help you complete basic activities. Let’s start by reviewing them:

There are five key areas of the basic Editor interface.

In the center of the default Unity Editor layout is the Scene view. This is your interactive window into the world you are creating. You’ll use the Scene view to manipulate objects and view them from various angles.

In the default layout, the Game view also appears in this area; you’ll use the Game view to playtest your game.

The Hierarchy window is where you can organize all the things in your project. These things are called GameObjects.

If you add a GameObject to your project in Scene view, it will be listed in the Hierarchy. If you delete a GameObject from the scene, it will no longer be listed.

The Project window is where you can find all the files (assets) available for use in your project, whether you use them or not.

The Project window works like a file explorer, organized in folders. You can drag assets directly from the Project window into the Scene view to add them to the scene.

Note the difference between the Project and Hierarchy windows: the Hierarchy window contains all the GameObjects in the current scene, and the Project window contains all the assets available to your entire project.

The Inspector window is where you’ll find and configure detailed information about GameObjects.

When you select a GameObject in Scene view or in the Hierarchy, you’ll see its components in the Inspector. Components describe the properties and behaviors of GameObjects.

Use the toolbar buttons to change your point of view in the scene, and start and stop Play mode.

The scene navigation functions are hosted in a floating toolbar in your Scene view. These functions allow you to move, rotate and scale your selected GameObjects.

The Unity Editor interface with callouts for the five main areas

You can use the Layout menu, found in the under Window, to change the arrangement of the windows in the Editor. There are several layouts provided, and you can save your own layouts.

The best layout for the Editor depends on what you are doing and your own personal preferences. For example:

If you’re spending a lot of time configuring components, you might want to dock the Inspector next to the Hierarchy window.


If you’re doing a lot of environment design, you might want to make the scene view as large as possible.


If you’re editing the user interface, you’ll want to make sure the Game view is visible.

We recommend you use the default layout while you’re learning Unity.

Projects in the Unity Editor are organized into scenes. Scenes are containers for everything in the experience you are creating.

One way to think about scenes is as discrete experiences. For example, each level in a game could be a separate scene, and the game’s main menu could be another.

A Unity project can have one scene or more than a hundred, depending on its scope and complexity. There aren’t strict rules about exactly how you should organize a Unity project into scenes, except that a project in Unity must have at least one scene.

Scenes in a Unity project are typically stored in a folder named Scenes. Unity projects that we provide on Unity Learn often have this folder pre-created. If you’re creating a project from scratch though, this folder won’t exist until you create it.

To review the scenes in a Unity project, follow these instructions:

1.  In the Project window, use the navigation panel or search bar to find the Scenes folder.

You’ll see the contents of that scene in the Hierarchy window and Scene view.

When working in Unity Editor, navigating in the Scene view is very important. One way to think about navigating in this window is like operating a drone camera — it lets you examine your GameObjects from any angle or distance.

With practice, you can learn to navigate with ease. There are also more general settings you can use to configure the Scene view.

Pan: Select the Hand tool in the Toolbar, and click and drag in the Scene view to move your view.

Zoom: Holding Alt (Windows) or Option (macOS), right-click and drag in the Scene view to zoom.

Orbit: Holding Alt (Windows) or Option (macOS),  left-click and drag to orbit around the current pivot point. Note: this option is not available in 2D mode.

Focus (Frame Select): When a GameObject is selected, select F with your cursor in the Scene view to focus your view on that GameObject.

Note: If your cursor is not in the Scene view, Frame Select will not work.

You can also use Flythrough mode to navigate in the Scene view by flying around in first person, which is common in many games. To do this:

Use WASD to move the view left/right/forward/backward.

Use Q and E to move the view up and down.

Note: Flythrough mode is not available in 2D mode. Instead, holding the right mouse button down while moving the cursor pans around the Scene view.

For further guidance, you can review a complete overview in the Unity Manual.

Effective use of the transform and scene navigation tools is an essential skill in Unity, which allows you to position, scale, and view your GameObjects efficiently in 3D space. With these tools and some practice, you can develop habits to get the results you want quickly and easily.

Note: If you are in a scene without any GameObjects to practice with, right-click in the Hierarchy window and select 3D Object > Cube.

The keyboard shortcuts for the toolbars correspond to the QWERTY keys at the top left of a standard keyboard. Using these keys, you can switch quickly between the tools and keep your mouse in the Scene view.

W: Move tool, to select and change position

Y: Transform tool, to move, scale, and rotate with one Gizmo

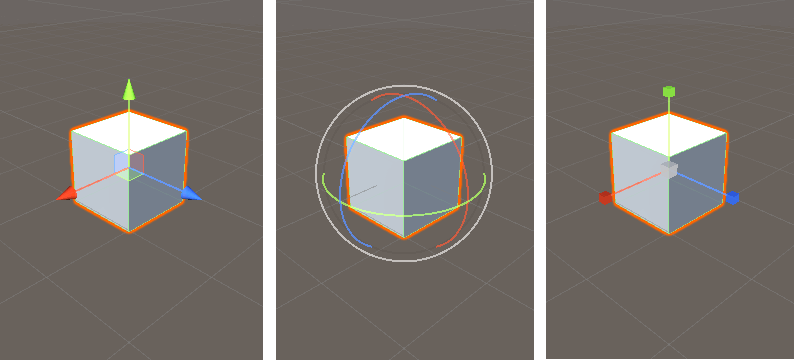

For each of the transform tools, a Gizmo appears that allows you to manipulate the GameObject along each specific axis. As you manipulate these controls, the values in the Transform Component change accordingly.

You will discover your own system for navigating the Scene view and manipulating GameObjects efficiently. For example, your system might be to rest the fingers of your non-mouse hand on the QWER keys to change tools, rest your thumb on the ALT key to orbit your view of the scene, and move your index finger to the F key to focus on a GameObject as needed.

The Toolbar captioned with the letters QWERTY to designate the keyboard shortcuts for each button


One way to develop your confidence at navigating in the Scene view and manipulating GameObjects in Unity Editor is to practice.

Try creating a Cube primitive in a Unity project, and then try the moves below. Watch the videos to see how it's done.

2.  Use the Rotate tool to rotate the cube.

3.  Use the Scale tool to resize the cube.

4.   Use the Transform tool to do any combination of move, rotate, and scale.

5.  Pan your view back and forth, so that the cube appears on the right and left sides of your screen.

6.  Zoom your view in and out, keeping the cube in view.

7.  Zoom out from the cube, and use the Focus key to zoom back into it.

8.  Orbit the cube so that you can see all six sides.

9.  Use Flythrough to move your point of view in any direction.

Tip: If you’re not sure how to complete the above exercises, review the previous two steps to refresh your memory on how to complete each task.

In this video, Unity creators share some of their best tips and tricks to help you develop your confidence in the Editor.

Note: To view transcripts of videos, select Show transcript while playing each video. You can also download a set of PDF files using the link in the Materials section at the top of each tutorial page.
