How to use the factory pattern for object creation at runtime

1. Level up your code: Factory pattern

Before you begin this tutorial, check out the video below for a brief overview of how you can use the factory pattern in a Unity project to build an interface to create objects in a superclass, while allowing subclasses to alter the type of objects.

2. Overview

Implementing common game programming design patterns in your Unity project can help you efficiently build and maintain a clean, organized, and readable codebase. Design patterns reduce refactoring and testing time, speeding up development processes and contributing to a solid foundation that can be used to grow your game, team, and business.

Think of design patterns not as finished solutions you can copy and paste into your code, but as extra tools that can help you build larger, scalable applications.

This tutorial explains the factory design pattern.

The content here is based on the free e-book, Level up your code with design patterns and SOLID.

Check out more articles in the Unity game programming design patterns series on the Unity best practices hub or via these links:

• Object pooling

• The state pattern

• The observer pattern

• The MVC and MVP patterns

• The command pattern

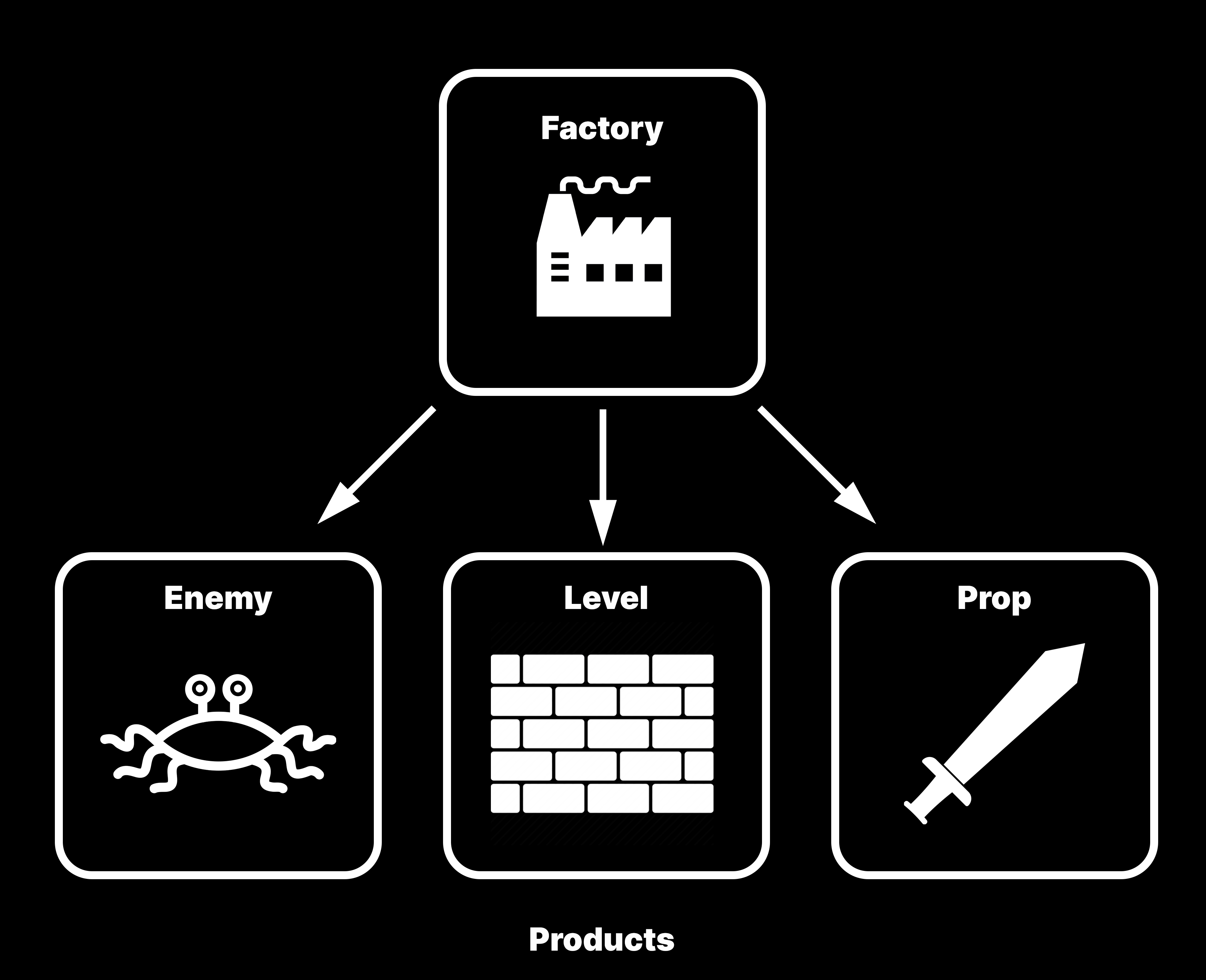

3. Understanding the factory pattern

Sometimes it’s helpful to have a special object that creates other objects. Many games spawn a variety of things over the course of gameplay, and you often don’t know what you need at runtime until you actually need it.

The factory pattern designates a special object called – you guessed it – a factory for this purpose. On one level, it encapsulates many of the details involved in spawning its products. The immediate benefit is to declutter your code.

However, if each product follows a common interface or base class, you can take this a step further and make it contain more of its own construction logic, hiding it away from the factory itself. Creating new objects thus becomes more extensible.

You can also subclass the factory to make multiple factories dedicated to specific products. Doing this helps generate enemies, obstacles, or anything else at runtime.

4. Test the factory pattern in a sample project

A sample project is available on the Unity Asset Store that demonstrates different programming design patterns in the context of game development, including the factory pattern.

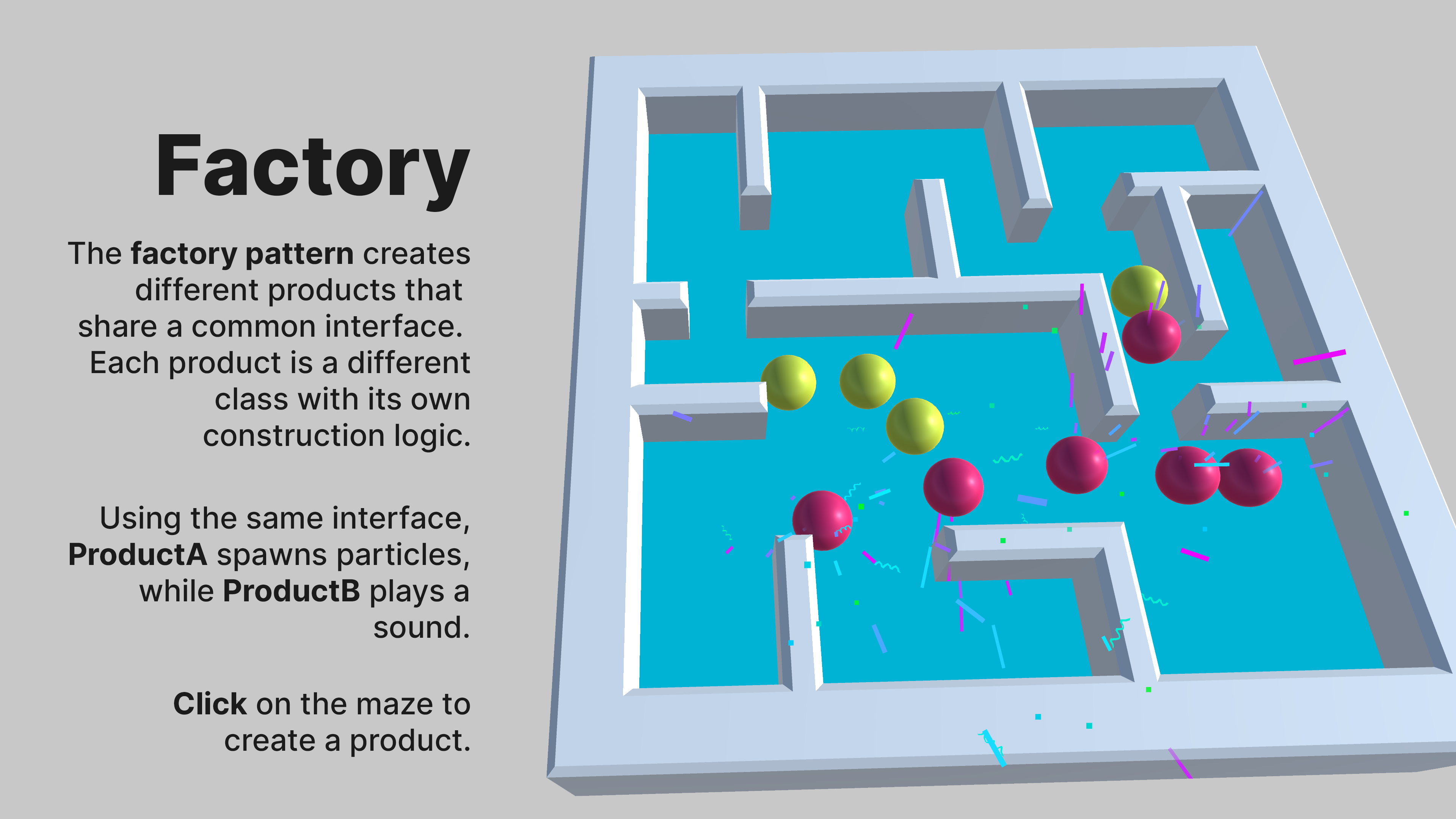

The factory pattern sample consists of code for a player to move around a maze. In the maze, you can spawn two different GameObjects called products by clicking. They both use the same interface and share a similar shape, but one spawns particles and the other plays a sound.

The factory pattern scene is in the folder named 6 Factory.

5. Creating a simple factory

Imagine you want to create a factory pattern to instantiate items for a game level. You can use prefabs to create GameObjects, but you might also want to run some custom behavior when creating each instance.

Rather than using if statements or a switch to maintain this logic, create an interface called "IProduct" and an abstract class called "Factory" as outlined in the code example below:

Products need to follow a specific template for their methods, but they don’t otherwise share any functionality. Hence, you define the IProduct interface.

Factories might need some shared common functionality, so this sample uses abstract classes. Just be mindful of Liskov substitution from the SOLID principles when using subclasses. It states that objects of a superclass should be replaceable with objects of a subclass without affecting the correctness of the program. In other words, any program that uses a superclass reference should be able to use any of its subclasses without knowing it.

6. Class structure in the factory pattern

The IProduct interface defines what is common between your products. In this case, you simply have a ProductName property and any logic the product runs on Initialize.

You can then define as many products as you need (ProductA, ProductB, etc.) so long as they follow the IProduct interface.

The base class, Factory, has a GetProduct method that returns an IProduct. It’s abstract, so you can’t make instances of Factory directly. You derive a couple of concrete subclasses (ConcreteFactoryA and ConcreteFactoryB), which will actually get the different products.

GetProduct in this example takes a Vector3 position so that you can instantiate a prefab GameObject more easily at a specific location. A field in each concrete factory also stores the corresponding template prefab.

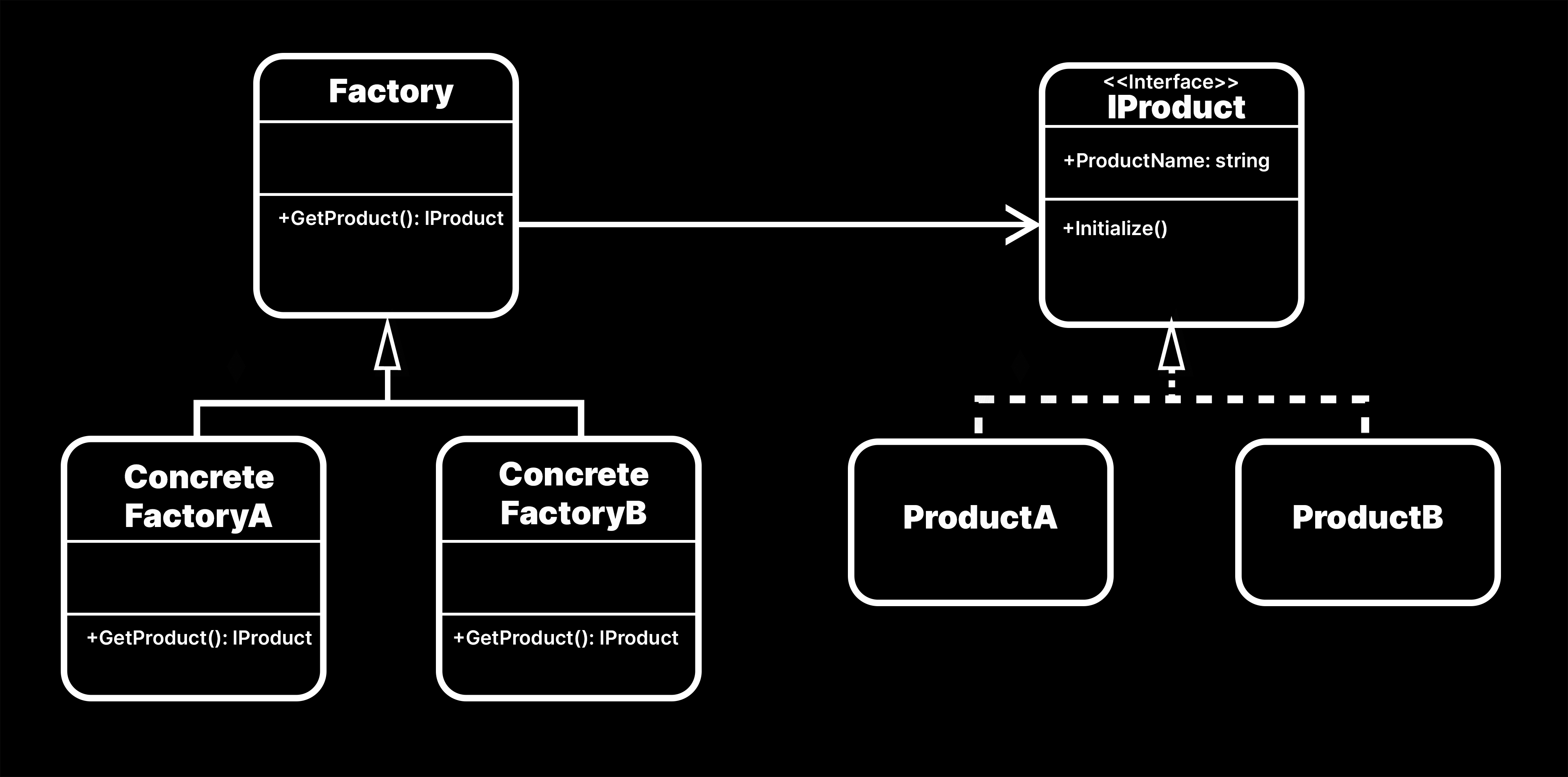

The result is a structure which looks something like the image below:

7. Code example

In the code snippet below, you can see a sample ProductA and ConcreteFactoryA:

Here, you’ve made the product classes MonoBehaviours that implement IProduct take advantage of prefabs in the factory.

Note how each product can have its own version of Initialize. The example ProductA prefab contains a ParticleSystem, which plays when the ConcreteFactoryA instantiates a copy. The factory itself does not contain any specific logic for triggering the particles; it only invokes the Initialize method, which is common to all products.

Explore the sample project to see how the ClickToCreate component switches between factories to create ProductA and ProductB, which have different behaviors. ProductB plays a sound when it spawns, while ProductA sets off a particle effect to illustrate the core concept of the product variations.

8. Pros and cons

You’ll benefit the most from the factory pattern when setting up many products. Defining new product types in your application doesn’t change your existing ones or require you to modify previous code.

Separating each product’s internal logic into its own class keeps the factory code relatively short. Each factory only knows to invoke Initialize on each product without being privy to the underlying details.

The downside is that you create a number of classes and subclasses to implement the pattern. Like the other patterns, this introduces a bit of overhead, which may be unnecessary if you don’t have a large variety of products. On the other hand, the initial time spent setting up the classes may be a good thing in the long run in terms of decoupling your code and making it easier to maintain.

9. Adapting the factory pattern

The implementation of the factory can vary widely from what’s shown here. Consider the following adjustments when building your own factory pattern:

• Use a dictionary to search for products: You might want to store your products as key-value pairs in a dictionary. Use a unique string identifier (for example, the name or some ID) as the key and the type as a value. This can make retrieving products and/or their corresponding factories more convenient.

• Make the factory (or a factory manager) static: This makes it easier to use but requires additional setup. Static classes won’t appear in the Inspector window, so you will need to make your collection of products static as well.

• Apply it to non-GameObjects and non-MonoBehaviours: Don’t limit yourself to prefabs or other Unity-specific components. The factory pattern can work with any C# object.

• Combine with the object pool pattern: Factories don’t necessarily need to instantiate or create new objects. They can also retrieve existing ones in the Hierarchy window. If you are instantiating many objects at once (for example, projectiles from a weapon), use the object pool pattern for more optimized memory management.

Factories can spawn any gameplay element on an as-needed basis. However, creating products is often not their only purpose. You might be using the factory pattern as part of another larger task (for example, setting up UI elements in a dialog box of parts of a game level).

10. More resources

Find more tips on how to use design patterns in your Unity applications, as well as the SOLID principles, in the free e-book Level up your code with design patterns and SOLID.

You can find all advanced Unity technical e-books and articles on the best practices hub. The e-books are also available on the advanced best practices page in documentation.
