Introduction to URP

1. Introduction to URP

This tutorial has been verified using Unity 2019.4 LTS

The goal of the Universal Rendering Pipeline (URP) is to provide optimized performance for developers targeting a broad range of platforms, VR, and games with limited real-time lighting needs. It does this by making some tradeoffs with regard to lighting and shading.

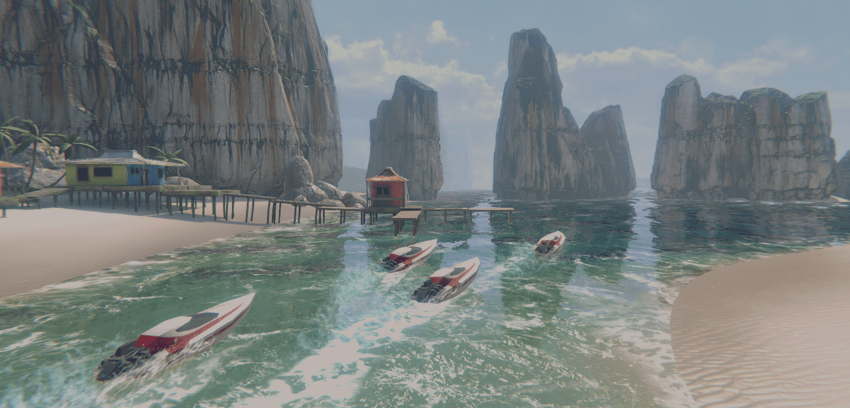

Figure 01: URP Lighting Sample

The URP performs single-pass forward rendering with one real-time shadow light and light culling per-object. By comparison, the legacy pipeline of forwarding rendering performs an additional pass per pixel light within range. This means the URP will result in fewer draw calls. It’s also supported by the Shader Graph tool, which provides additional benefits for shader authoring workflow.

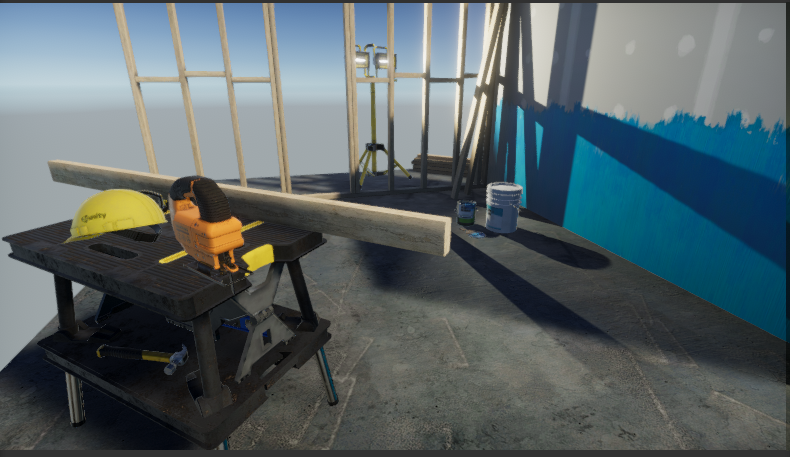

Figure 02: Sample scene using the Universal Rendering Pipeline

2. Creating a new project with URP

Let’s start a new project with URP.

1. Open Unity Hub and create a new project.

2. In the new window, select the Universal RP template (Figure 03).

Figure 03: Creating a new project with URP

3. Name your project and set the location for the project.

4. Finally click Create.

Once that’s done, your new Unity Project with the URP will be ready to go.

3. Upgrading an existing project to use URP

To upgrade an existing project, you must first download the URP using the Unity Package Manager.

1. Go to the Window > Package Manager to open the Package Manager (Figure 04).

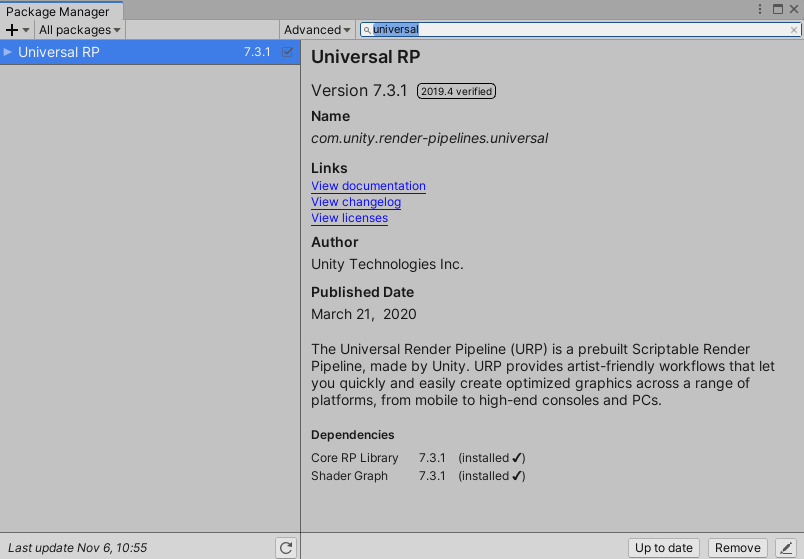

Figure 04: Package Manager Window

2. Make sure you see All Packages in the top left selected.

3. Find “Universal RP” in the list and select it.

4. Click Install.

After the package has been installed from the Package Manager, you have to add the URP Asset to the Scriptable Render Pipeline Graphics settings field.

1. Open the Project settings window by clicking Edit > Project Settings.

2. Select Player settings on the left side of the new window.

3. Set Color Space to Linear in Other Settings section of Player Settings. (Figure 05)

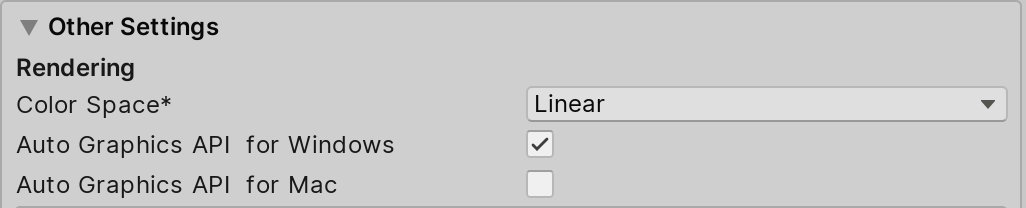

Figure 05: Setting Color Space to Linear in Player Settings

4. Create a pipeline asset by selecting the Asset drop-down and
Create > Rendering > Pipeline Asset.

5. Open the Project settings window by clicking Edit > Project Settings.

6. Select Graphic settings on the left side of the new window.

7. In the Graphics Inspector, click the circle dial and select the UniversalRenderPipelineAsset. (Figure 06)

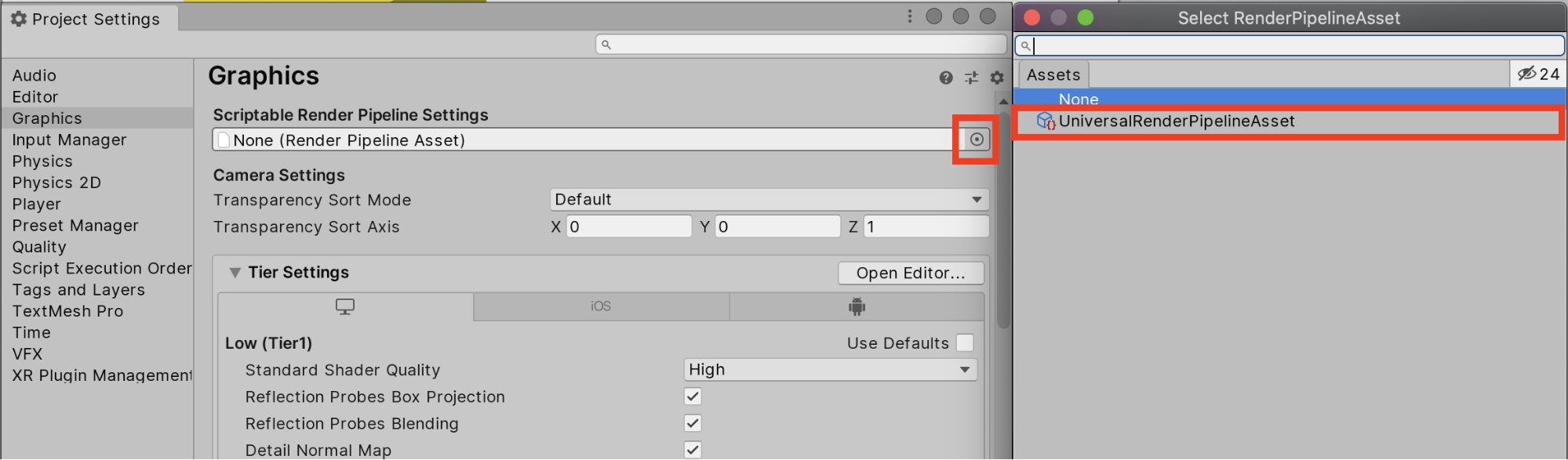

Figure 06: Placing the UniversalAsset into Scriptable Render Pipeline Settings

Now your existing project will be able to use the Universal Render Pipeline.

4. Conclusion

URP establishes standardization by bringing in restrictions and disabling features that wouldn’t be supported on lower-end devices. This allows developers to worry less about how to optimize a project and to focus more on developing projects for the wider audience.
