Challenge: Add a decal projector to the scene
Tutorial
·
intermediate
·
+0XP
·
15 mins
·
(10)
Unity Technologies
In this challenge, you will add and configure a decal projector in the scene to display the Unity logo on the wall without needing to modify the wall texture.
1. Setting up the decal projector

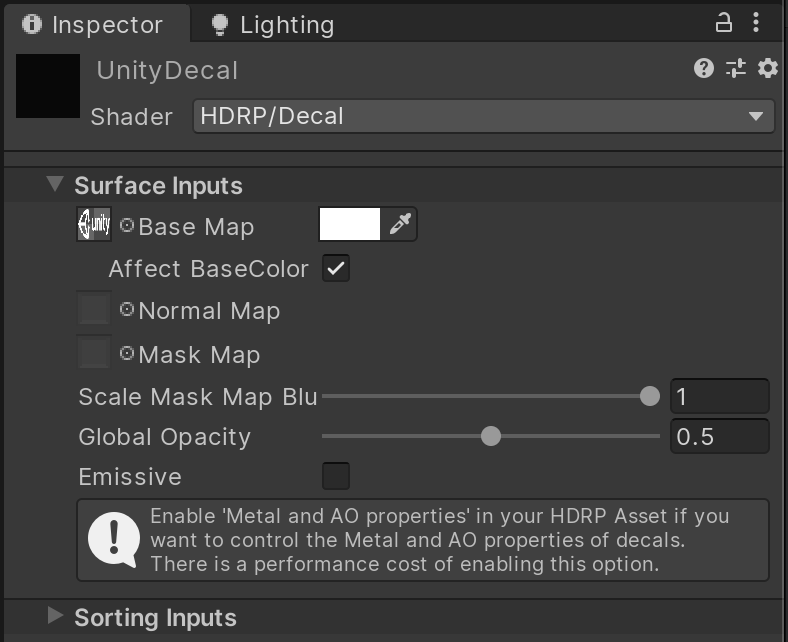

1. Create a Decal material that uses the Unity_Logo texture
Create a Decal material using the HDRP/Decal shader
2. Create and place a Decal Projector in the scene that displays the Decal material

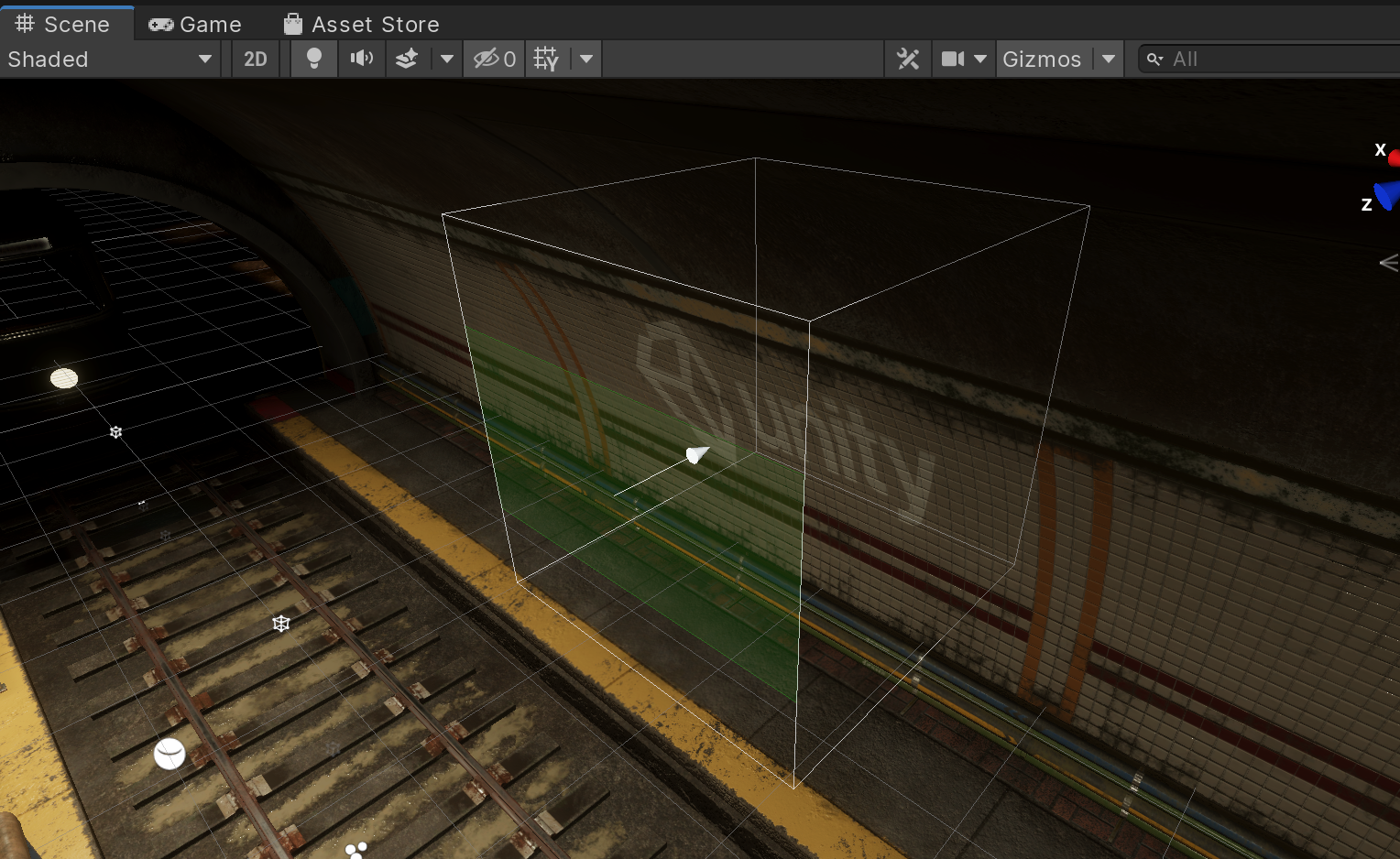

Place the Decal Project so that the decal is projected onto the wall in the main tunnel area

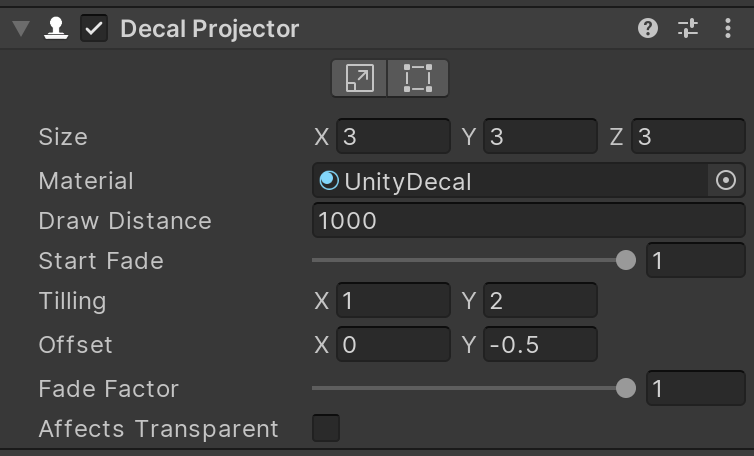

The Decal Projector component settings
Nice job! By completing these challenges you have enhanced the visual quality of the scene. These tips and tricks can be applied to any HDRP scene and help to get the best looking results possible!
