3.2 - Optimization

Before you start optimizing your code, you will want to identify your performance goals and how to evaluate if your app is meeting them.

1. Determine your device’s target frames per second (FPS):

• Use the links below as reference and write down your target FPS.

2. Determine the frames per second (fps) running on your device:

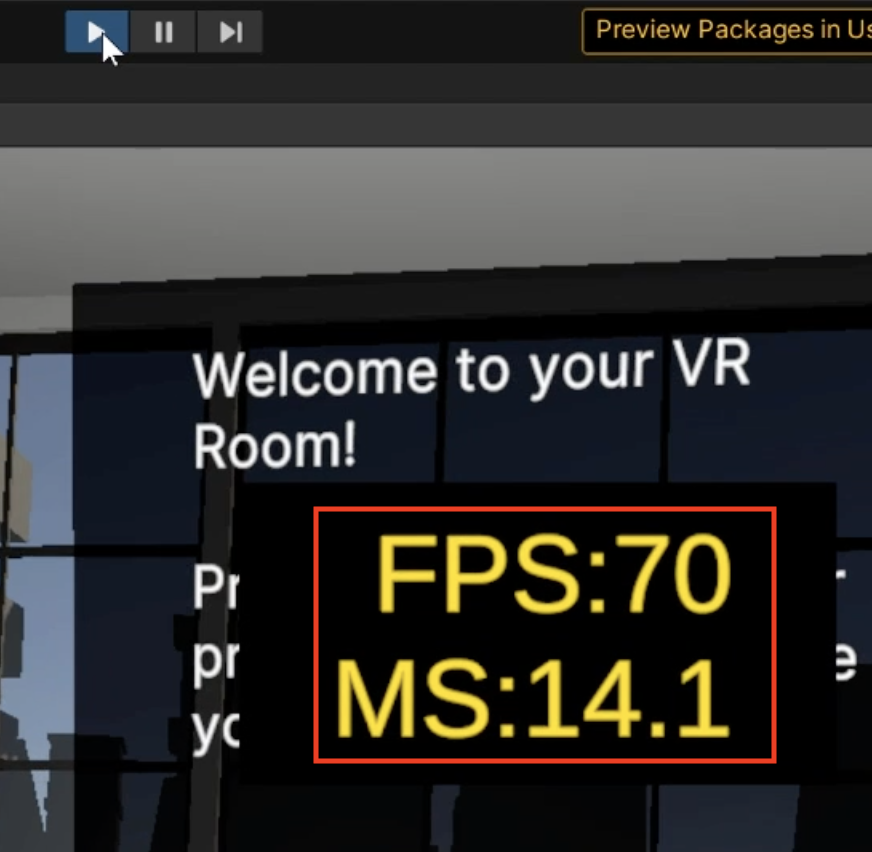

• From the Course Library > Prefabs > Testing, drag the FPS Overlay UI into your Hierarchy.
• Assign your Main Camera to the Render Camera property.
• Run your application to see your FPS.
• Note: If you are running the app through the Unity editor, this will not be an accurate prediction of the FPS.

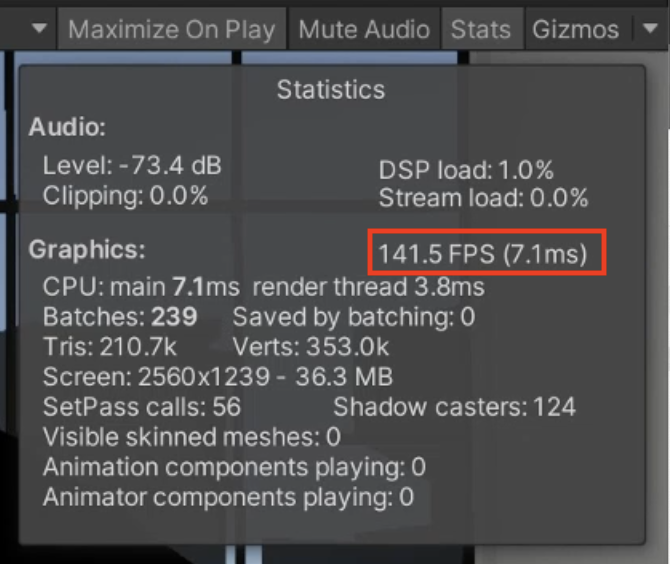

3. View the FPS in the Unity Stats window:

• In Game View, in the top-right corner, enable the Stats window, and locate the FPS number.

4. Explore the Unity Profiler:

• Click the Play button.
• From the top menu bar, select Window > Analysis > Profiler.
• Click the red circular record button in the Profiler window.

5. To test the true frames per second running on a mobile headset:

• Build and run the app on your device with no connection to the computer.

You should now know where to find target metrics for your device and how to find the frames per second on your device.

Related resources:

• Target performance metrics
  • HTC Vive performance targets
  • Oculus performance targets
• Unity Tools
  • Stats window
  • Frame debugger
  • Profiler

In order to render a single frame, Unity “draws” things to the screen in “batches” of objects. Every time Unity “calls” on the engine to “draw” something to the screen is called a “draw call”. If you can minimize draw calls, you can improve performance.

1. Determine your device’s target draw calls (batches):

• Consult your platform’s website to find your target “Draw Call” metric.

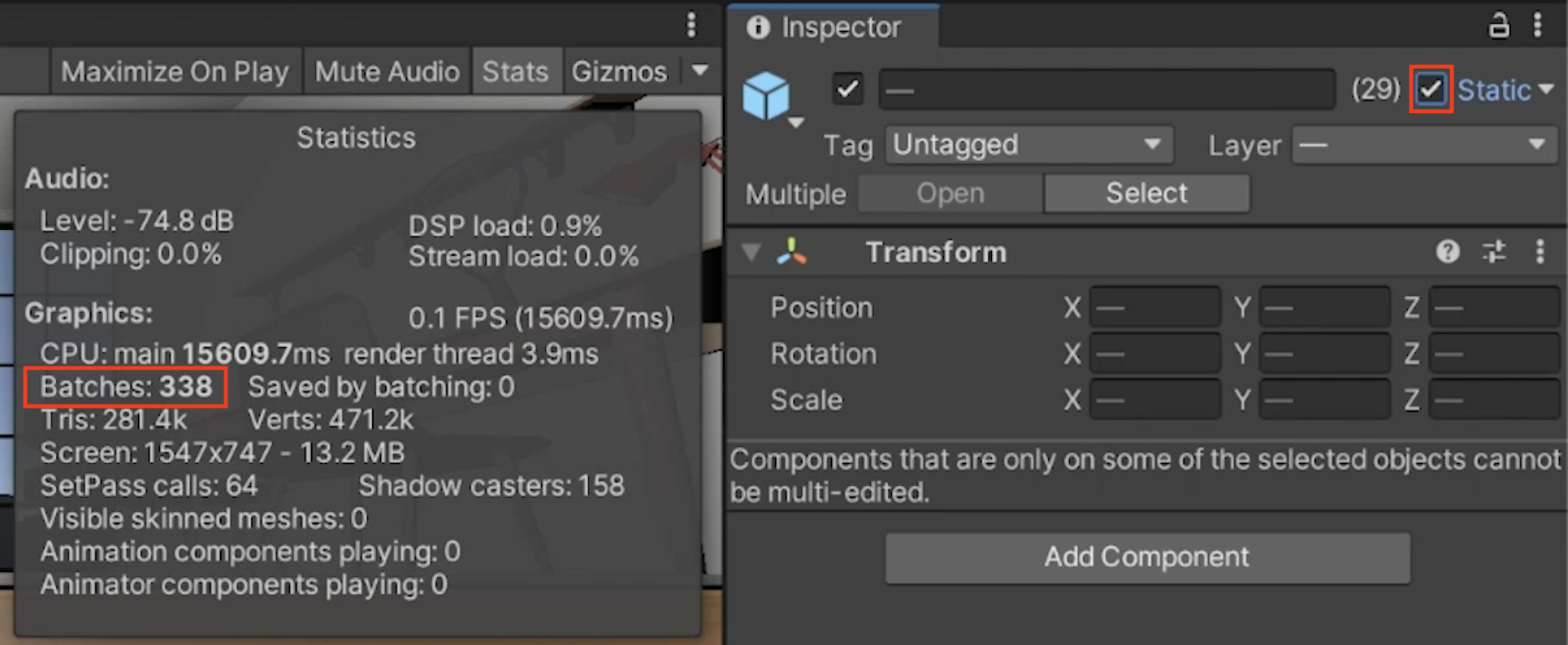

2. Find the number of draw calls in your scene:

• Open the Game Stats window and locate the “Batches” (draw call batches) value.


3. Visualize how batching and draw calls can affect frame rate:

• In the top menu, select Window > Analysis > Frame Debugger.
• Click Enable.
• Use the left/right arrows in the Frame Debugger window and watch in the Game view to see the step-by-step creation of a single frame.


4. Make sure “Static Batching” is enabled:

• From the top menu, select Edit > Project Settings > Player panel.
• In the Other Settings foldout, make sure Static Batching is enabled.


5. Improve batching by marking unmoving objects as “Static”:

• Make sure your Hierarchy is organized so that all static objects can be selected easily.
• Select all static objects (including lighting objects like lamps and chandeliers).
• At the top of the Inspector select the Static checkbox.
• When prompted, choose “Yes, change children”.
• Notice the effect this has on Batches when you click Play.

6. If your Batches number is still very high (over 175):

• Consider removing the mirror object from the scene.

You should have now reduced the number of draw calls through batching objects with shared materials.

Related resources:

• Draw call batching

The most straight-forward performance metric is the poly (polygon) count. The poly count is often measured in “Tris” counting triangles or “Verts” counting vertices.

1. Determine your device’s target polycount (triangles):

• Consult your platform’s website to find your target “triangles” metric.

2. Find the number of triangles in your scene:

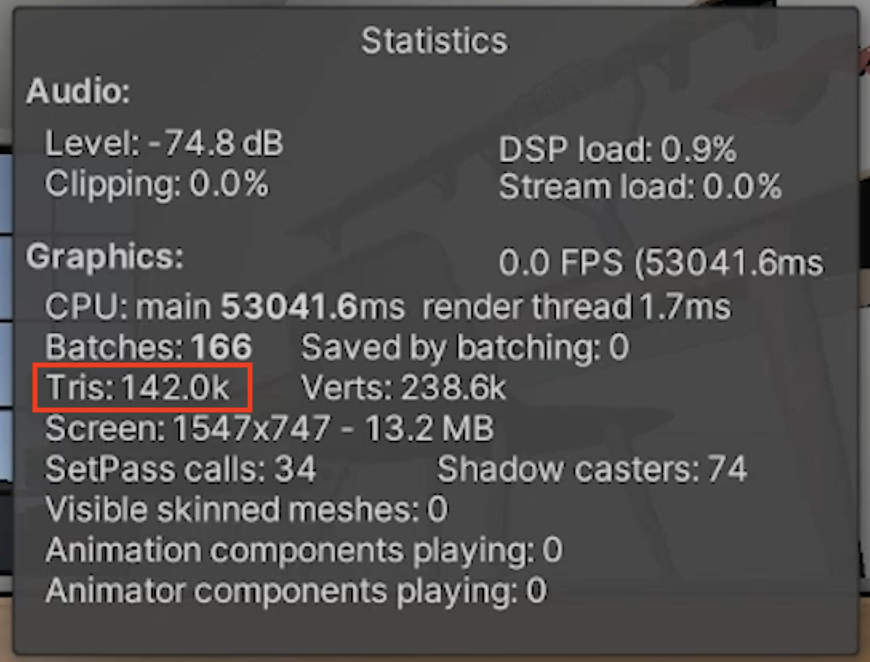

• Open the Game Stats window and locate the “tris” (triangles) value.

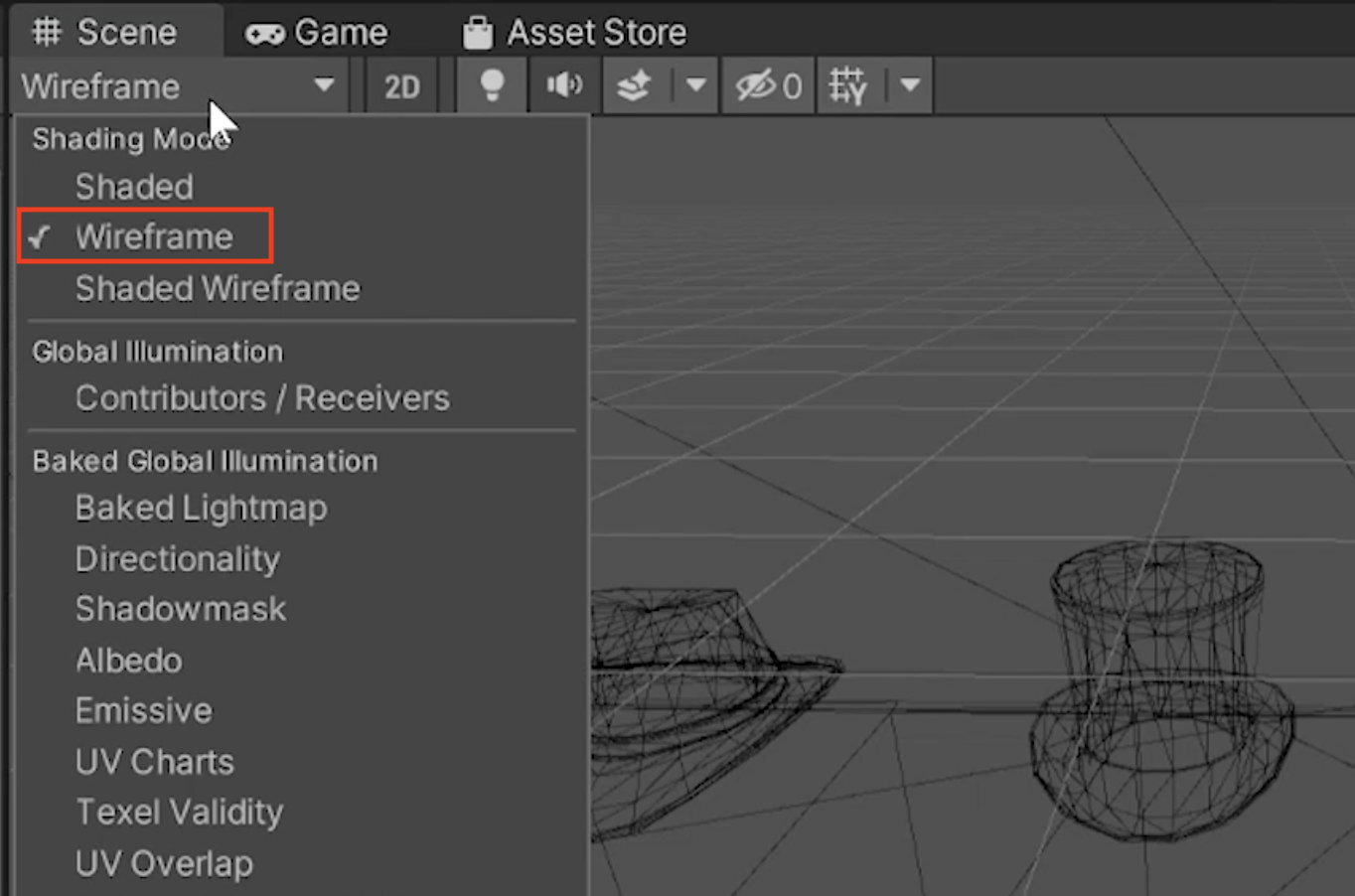

3. Visualize your triangles more clearly:

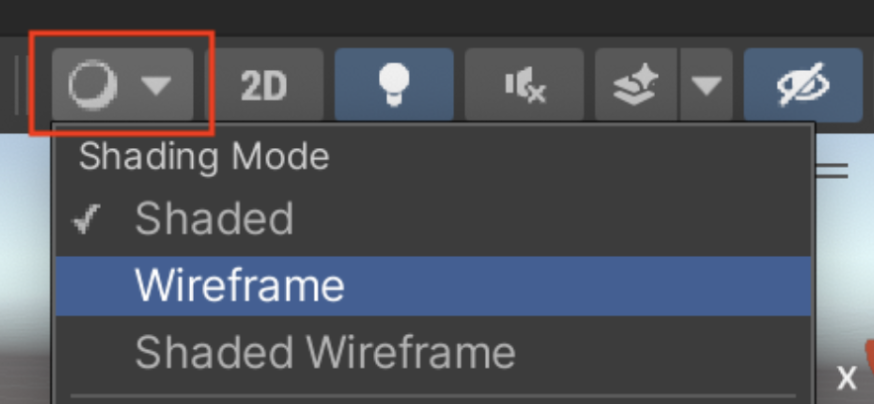

• From the Scene view, change from the “Shaded” draw mode to the Wireframe draw mode.

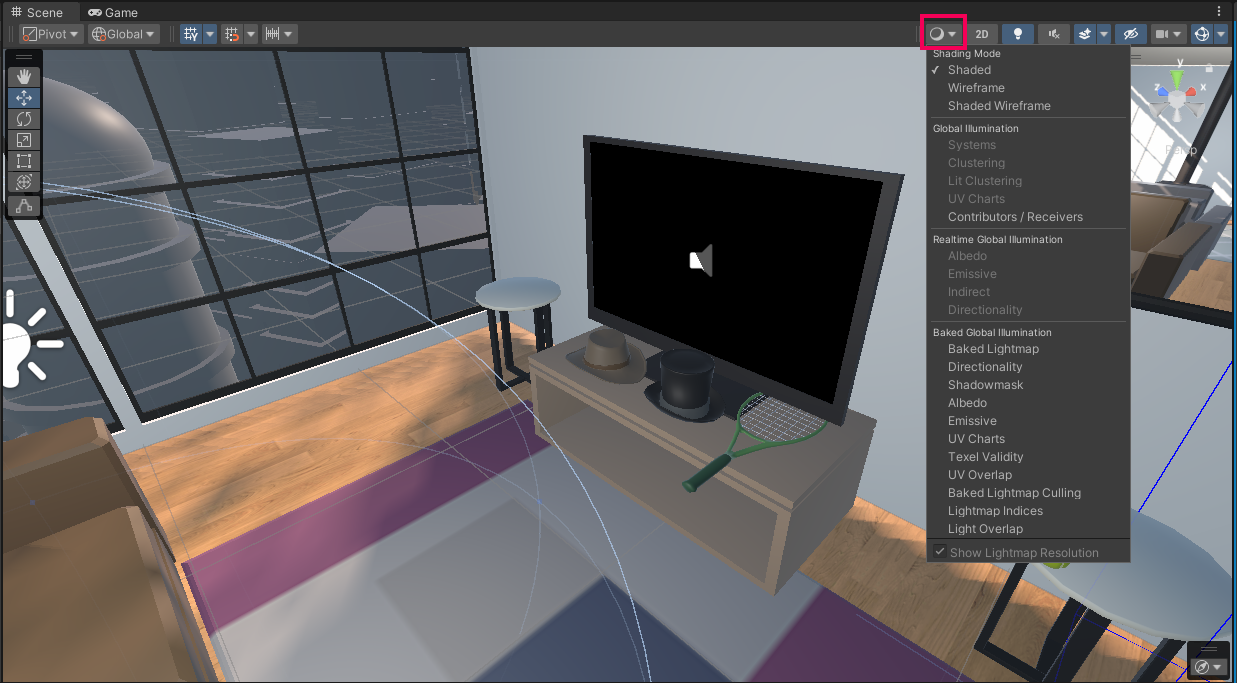

• Note: In Unity 2021 LTS: the draw mode dropdown is represented by a circular icon at the top of Scene view:

4. Determine the number of triangles for an individual object:

• Select an object.
• In its Mesh Filter component, click its Mesh.
• Select that Mesh in the Project window to view its triangle count in the Inspector.
• Note: Anything under 1,000 tris is pretty “low poly”

5. Notice how your tris change depending on what objects are in frame:

• Monitor the stats window as you rotate the XR Rig around.

6. If you are not hitting the suggested target for Tris:

• Remove or replace assets with high polygon counts until you reach your target
• You can also try removing the mirror from your scene.

You should now be hitting your target for Tris and have an understanding of where you are spending your tri budget.

Related resources:

• Occlusion culling

Note: Depending on which version of the Unity Editor you’re using, the Scene display settings may be an icon in the upper right of the viewport and not in the upper left as shown in the video.

In addition to evaluating the draw calls Unity makes, it is also important to consider the size of the textures used in your scene.

1. Add a painting to the scene to better analyze the impact of texture settings:

• From the Course Library > Prefabs > Art, add a piece of Art to a wall in your scene.

2. Access the material for the objects in your scene:

• In the painting’s Mesh Renderer component, expand the Material section at the bottom of the inspector..

3. Locate the texture atlas used for the material:

• From the material’s Surface Inputs foldout, click the thumbnail next to Base Map to locate the texture in the Project window.
• Click this texture to view the texture’s Import Settings.

4. Experiment with the texture settings:

• At the bottom of the texture’s settings, adjust the Max Size, Resize Algorithm, Format, and Compression properties.
• Click Apply to see the impact each setting has on the visuals in your scene.
• Once you have observed the difference, revert back to the original settings.

5. Enable “mip maps”: to automatically reduce the resolution of textures seen from a distance :

• Locate and select the InteriorColorSwatch texture in the Project window.

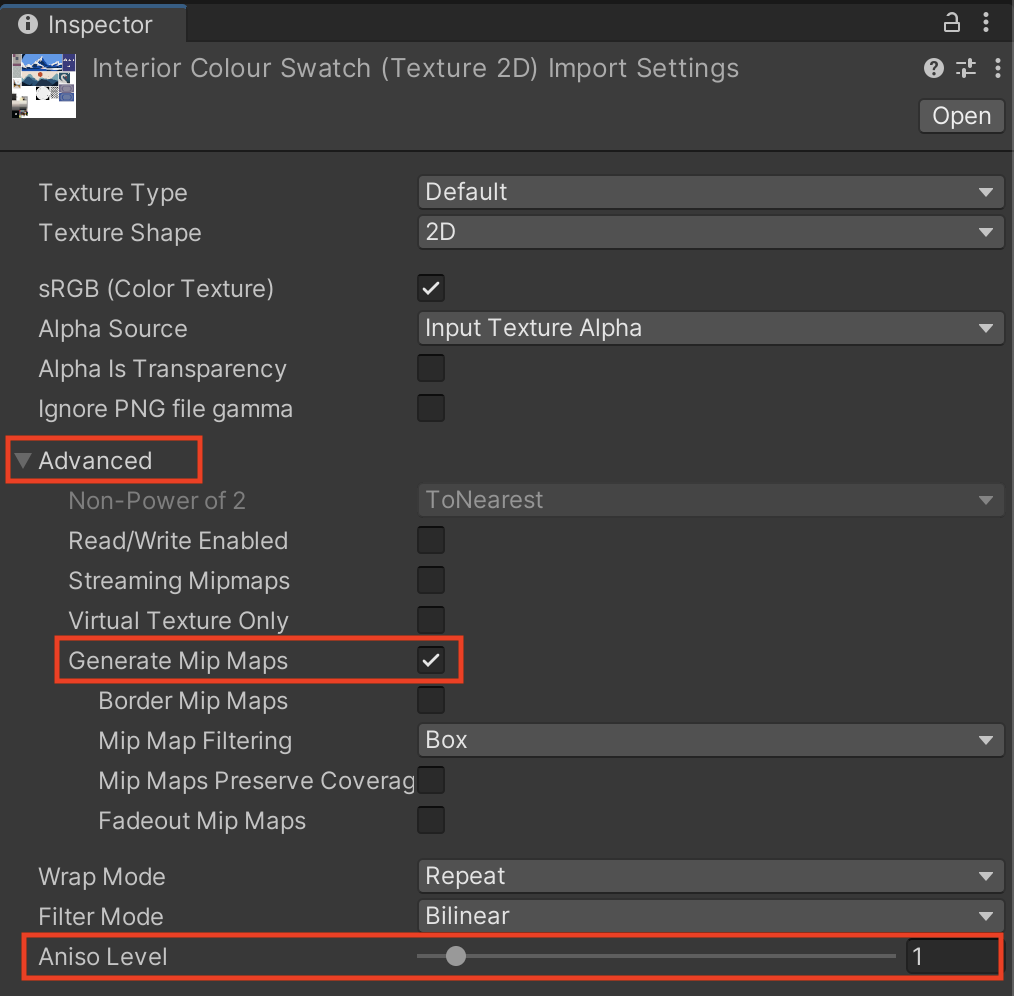

• In the Inspector, expand the Advanced fold-out, and select Generate Mip Maps.
• Click Apply. This will generate and apply lower quality textures on farther-away objects.

6. Enable “Anisotropic Filtering” to improve the visuals of textures when viewed at a shallow angle:

• Locate and select the WoodFloor_Texture in the Project window.
• In the Inspector, drag to increase the Aniso Level slider.
• Click Apply. This will increase Anisotropic Filtering to improve texture visuals when viewed at shallow angles.

You should now know which settings exist to optimize textures for performance and/or visual quality.

Related resources:

• Importing Textures
• Texture import settings (and mip maps)
• Anisotropic Filtering

Particles and post-processing also impact performance. You will look at how these can affect frames per second and ensure they are not causing performance issues in the project.

1. Optimize the particle’s shader so that it does not respond to dynamic lights:

• Select the Particle_Fire object.
• Locate the Shader property drop-down at the bottom of the Inspector.
• Make sure your particle is using the Universal Render Pipeline > Particles > Unlit shader.

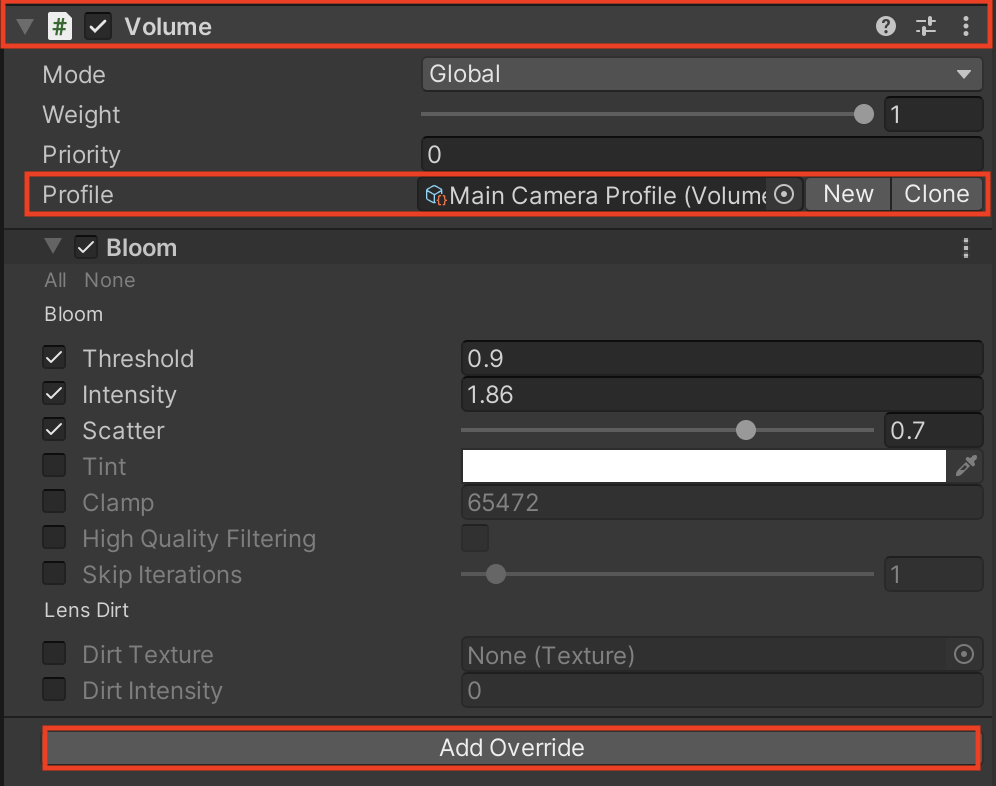

2. Experiment with Post-processing:

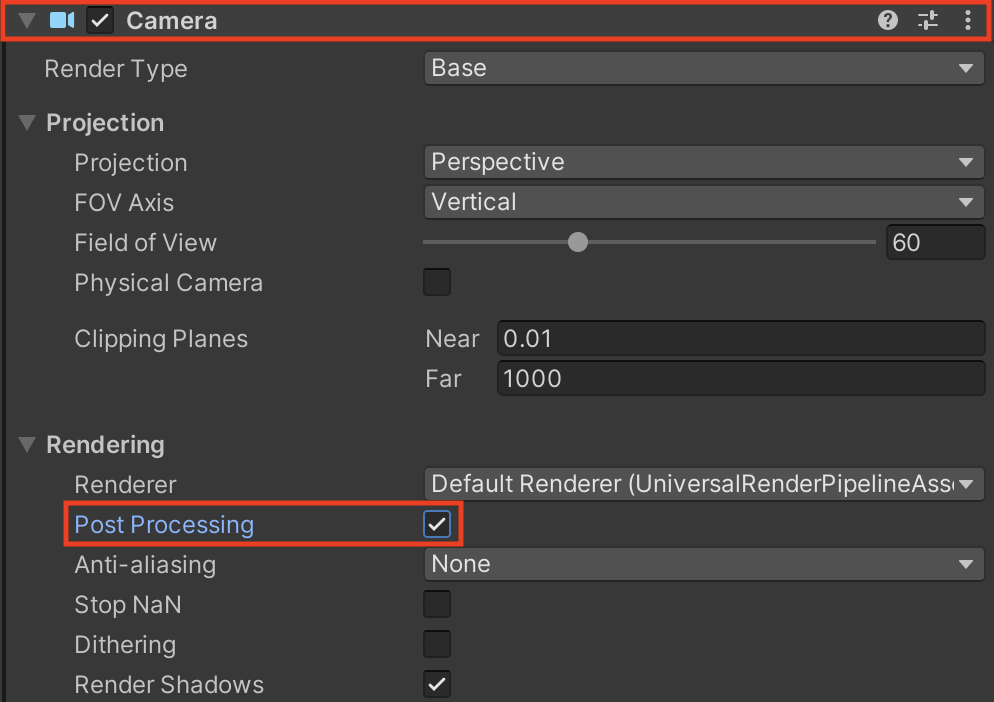

• In your Main Camera object’s Camera component, enable the Post-processing setting.
• Add a Volume component.
• Click the New button to create a new Post-Processing profile.
• You can then experiment by clicking the Add Override button and enabling new effects.
• Warning: If you are going to add any post-processing effects, color adjustments are a good option. Lens distortions and motion blurs induce cyber sickness; avoid using these effects.

You should now have appropriate particles and post-processing for your app.

Related resources:

• Choosing shaders in URP
• Post-processing in the Universal Render Pipeline

You may have noticed that the edges of some of the 3D objects appear jagged. This can be immersion-breaking in VR. We can smooth these jagged edges with anti-aliasing.

1. Access the render pipeline settings:

• In the Project window, search for “UniversalRenderPipelineAsset” and select it to see its properties in the inspector.

2. Enable anti-aliasing in the Universal Render Pipeline (URP) asset:

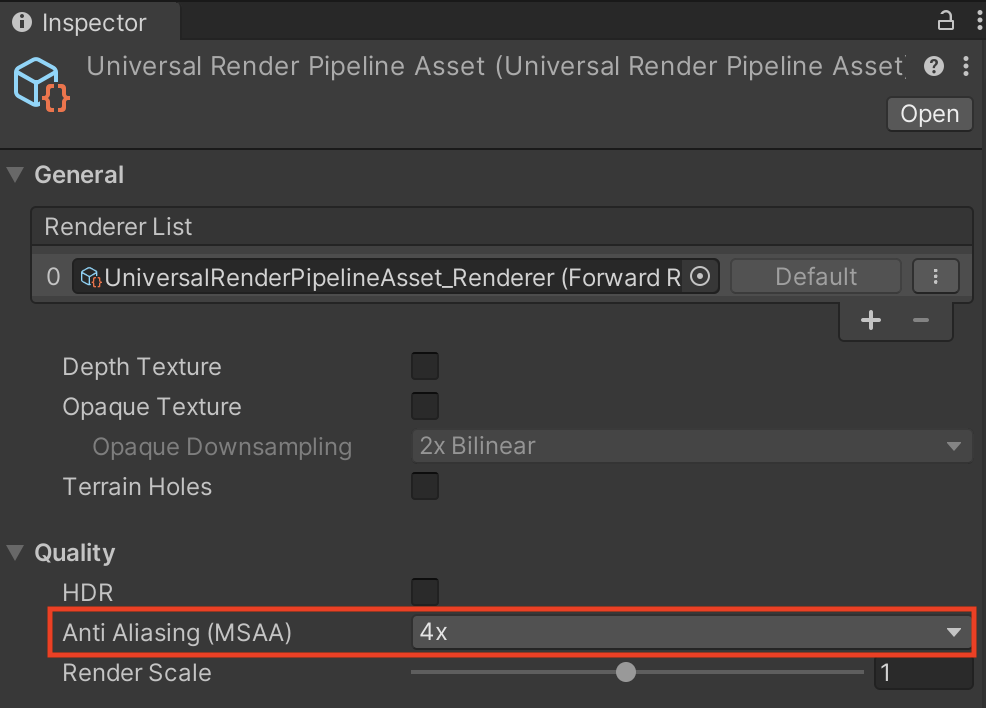

• In the Quality fold-out, change the Anti-Aliasing setting from Disabled to 4x.

3. If you want to add additional anti-aliasing on the main camera:

• On your Main Camera object, in the Camera component, expand the Rendering fold-out.

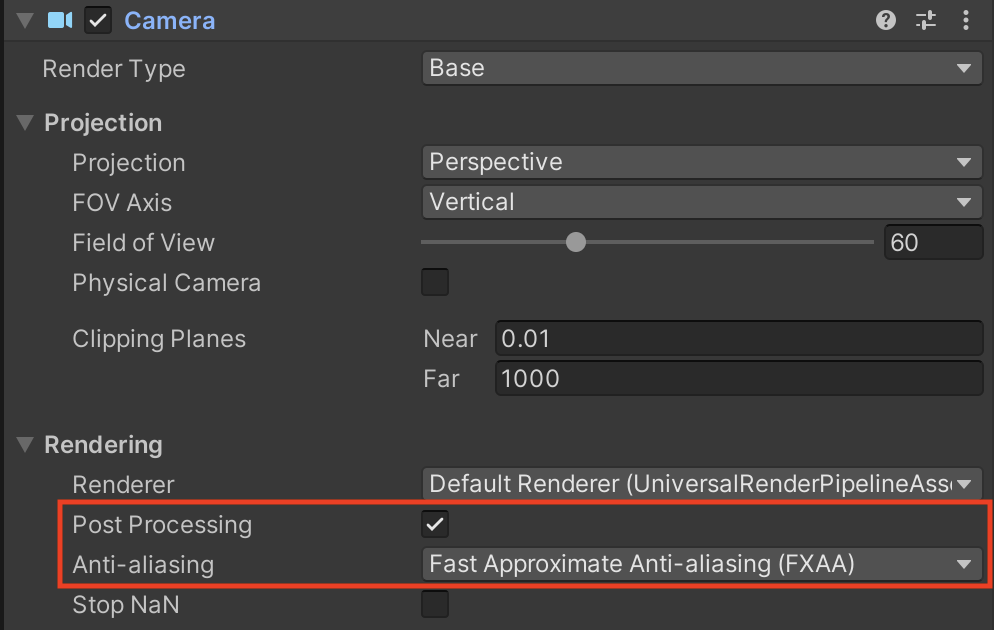

• Change the Anti-Aliasing setting to “Fast Approximate Anti-Aliasing (FXAA).
• Make sure the Post-Processing setting is enabled to be able to see the effect.
• Note: This may have a significant impact on FPS.

4. Apply anti-aliasing to the mirror:

• Locate the “Mirror_Texture” in your project.
• Change the Anti-Aliasing property from “None” to “4 samples”.

Your main camera and your mirror should now have much smoother edges than they did before.

Related resources:

• Anti-Aliasing

New Functionality:

• Higher frame rate

New Concepts and Skills:

• Target metrics for VR
• Polycount
• Draw calls
• Texture and materials optimization
• Particles and FX optimization
• Anti-aliasing

Next Lesson:

• Lighting
