Challenge — Configure Waypoint Teleportation

In this challenge, you will implement the FreeTeleport script into the construction site scene.

VR Functionality

In this challenge, you will implement the FreeTeleport script into the construction site Scene. Once implemented, you can explore the Scene in the Editor or build the project to the Oculus Go to test it out there.

In this Scene, you will implement Free Teleport to give your users the ability to move freely around the Scene. To do this, you will:

Attach the Free Teleport component to the OVRCameraRig

Configure the Free Teleport component appropriately

Ensure the teleport surface has a Collider component attached

Exploring the Scene at runtime

Create five Empty GameObjects and position them around the Scene so the user can see different areas of the Scene. (Below are some recommended locations, but feel free to position them to your liking)

Note: You may see some messages appear in the console window. Don't worry — they will not affect your project. If you would like, you can click the "Clear" button to clear the messages

Create five empty GameObjects (Create > Empty GameObject).

Rename them Waypoint Position 1, Waypoint Position 2, Waypoint Position 3, Waypoint Position 4, and Waypoint Position 5.

Position them around the Scene in places you think the user would like to see (use the above images as a guide).

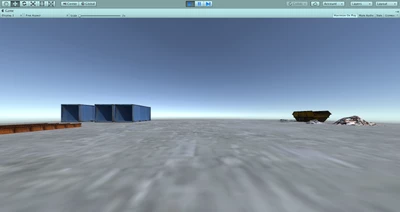

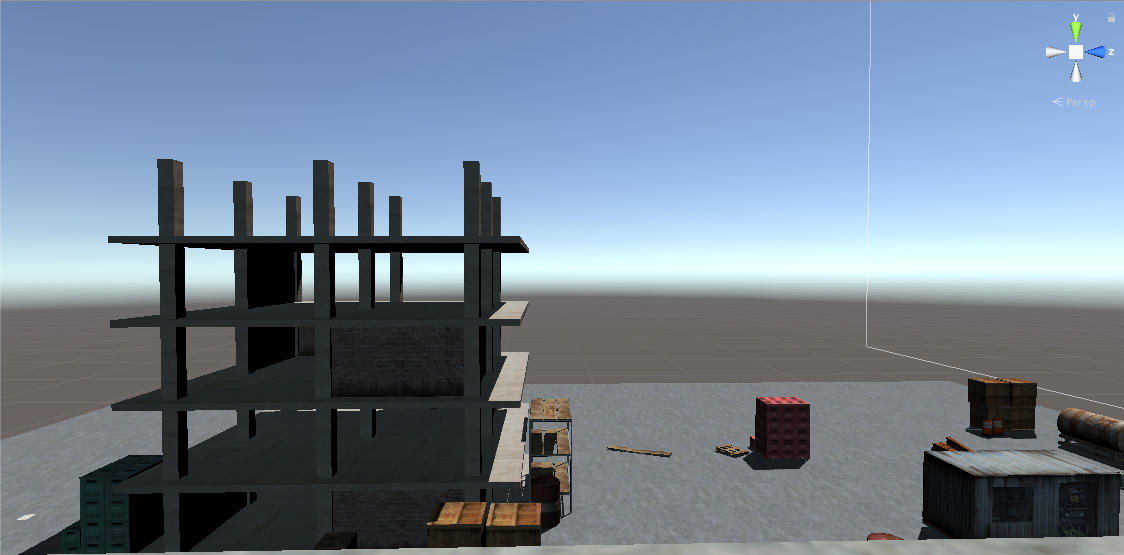

Waypoint Position 1: Positioned on the ground

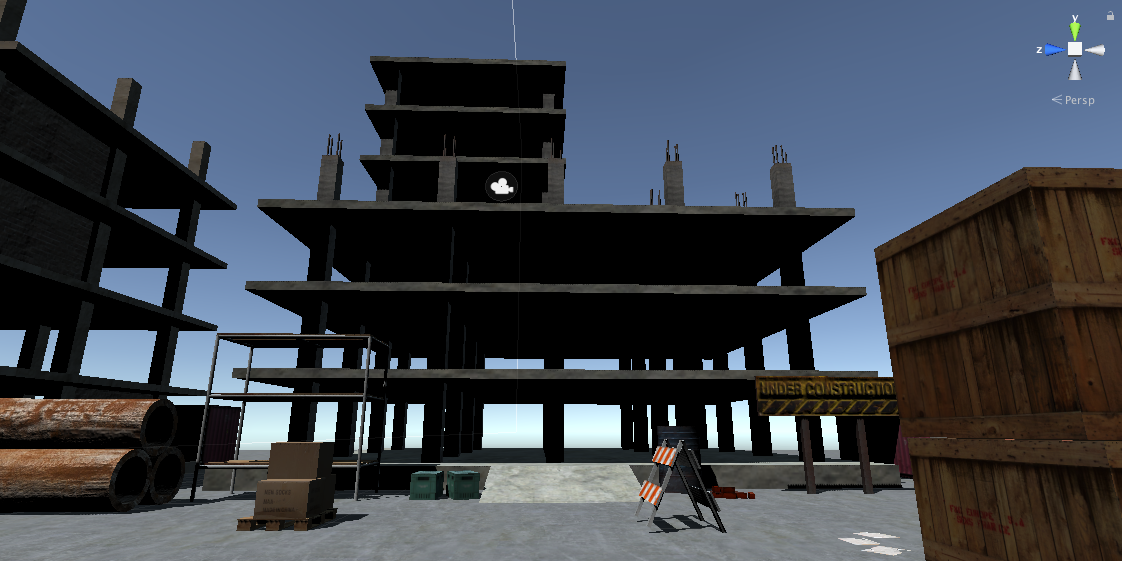

Waypoint Position 2: On second floor of building

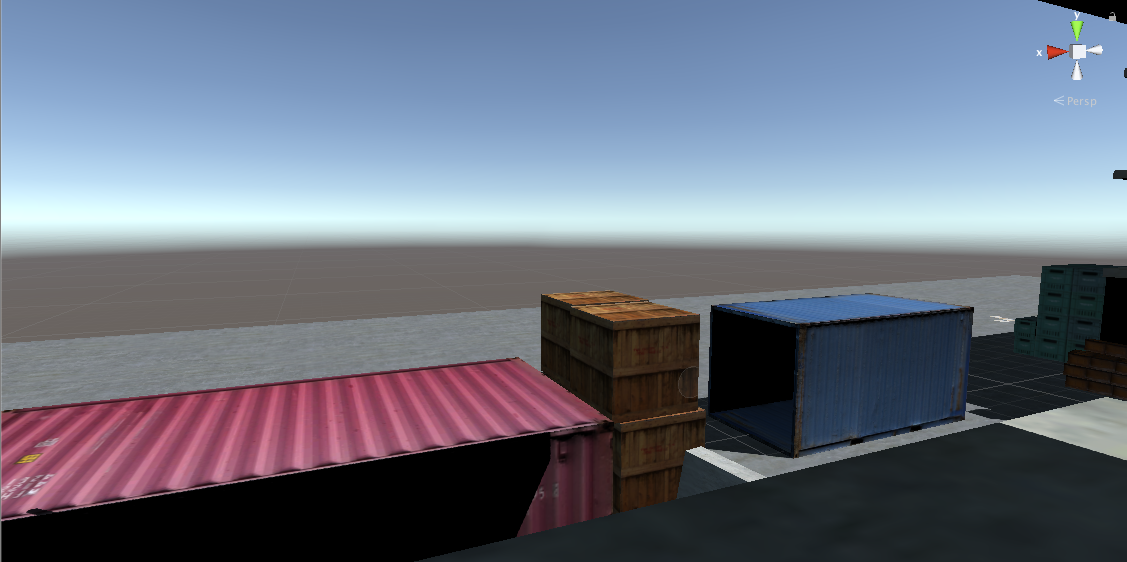

Waypoint Position 3: Fourth floor of the building

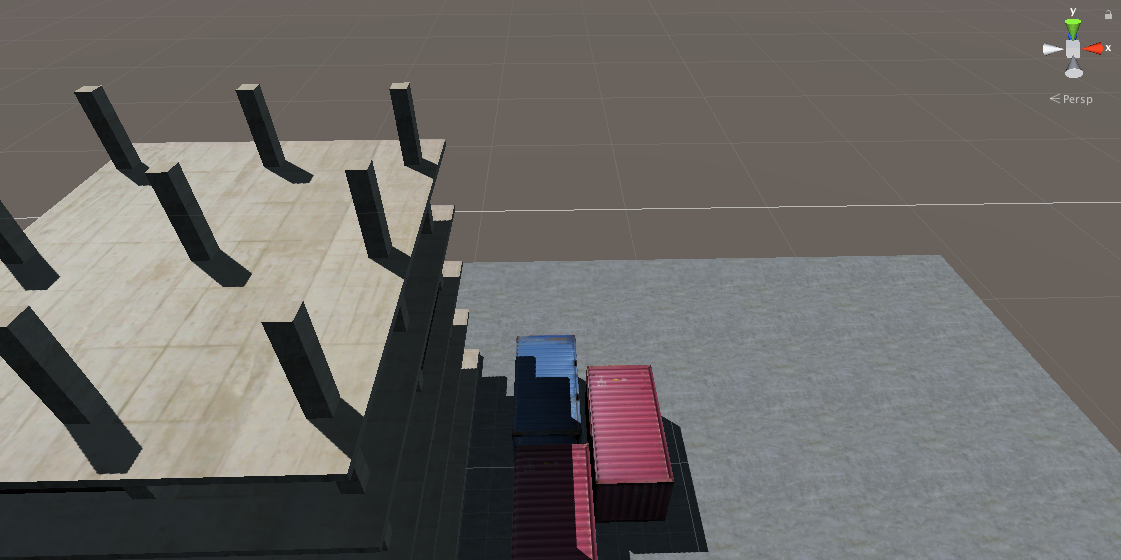

Waypoint Position 4: On the roof, looking down the side of the building with containers

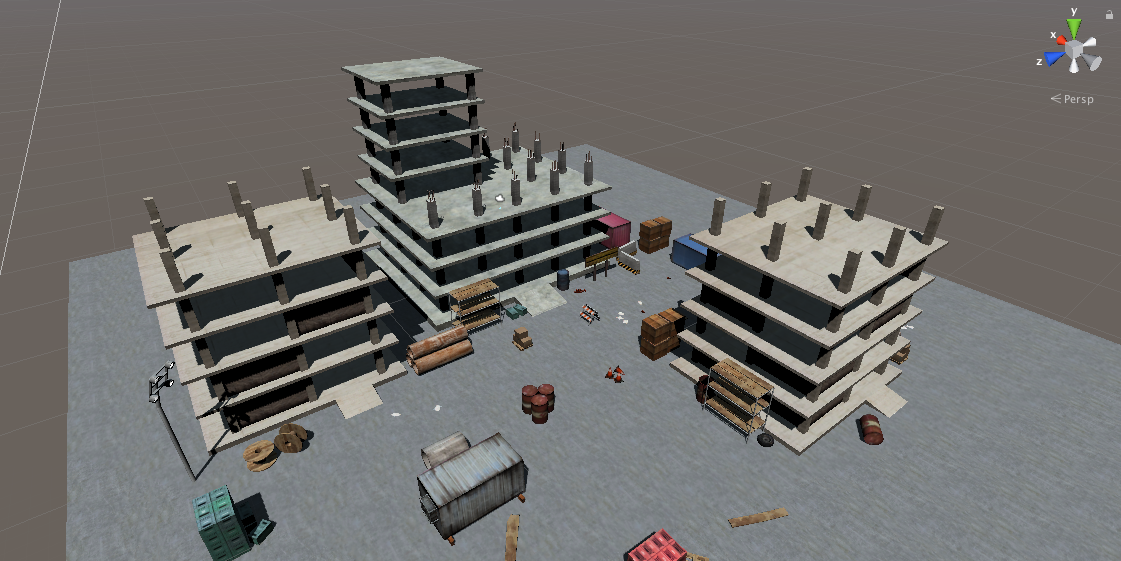

Waypoint Position 5: All three buildings should be visible

Add the newly created Waypoint Positions to the Waypoint Positions list on the Waypoint Teleport component.

Locate the Waypoint Teleport component on the TeleportRig GameObject.

In the Inspector, adjust the Waypoint Positions list size to five on the Waypoint Teleport component.

Drag each of the Waypoint Teleport positions into the list.

(Hint: Adjust the size of the Waypoint Positions list to reveal additional references.)

Use the arrow icon to collapse components to keep the Inspector clutter-free.

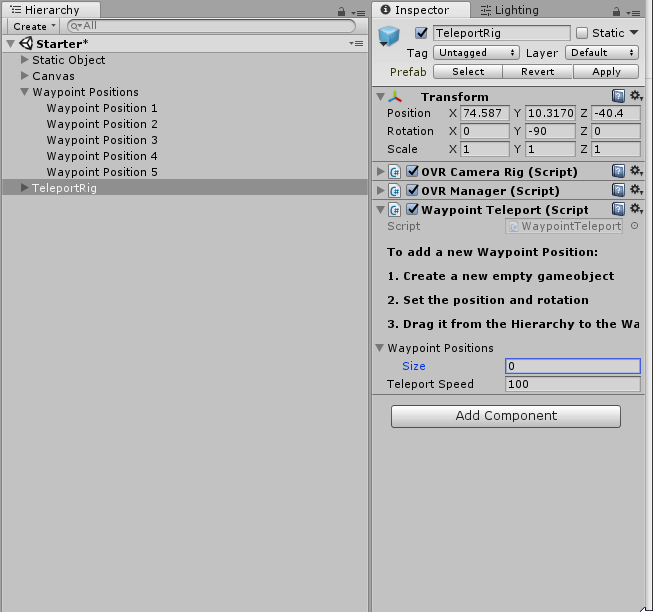

Setting up the Waypoint Teleport component

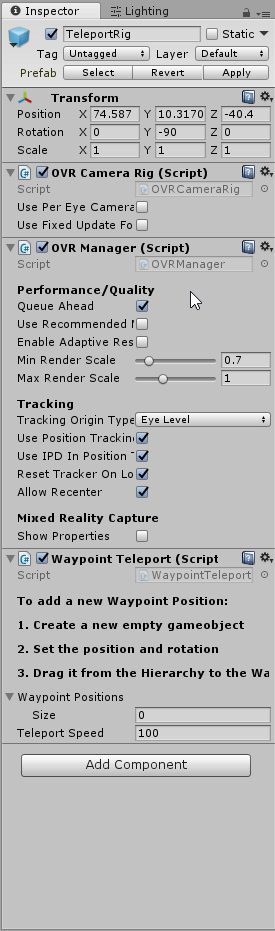

Collapsing components in the Inspector

Press play and use the provided UI buttons to test the functionality of your newly create Waypoint Positions.

In the Game view, use the provided UI to cycle through the Waypoint Positions you created.

If you don’t like the position of a Waypoint, adjust its position and rotation and repeat Steps 1 and 2.

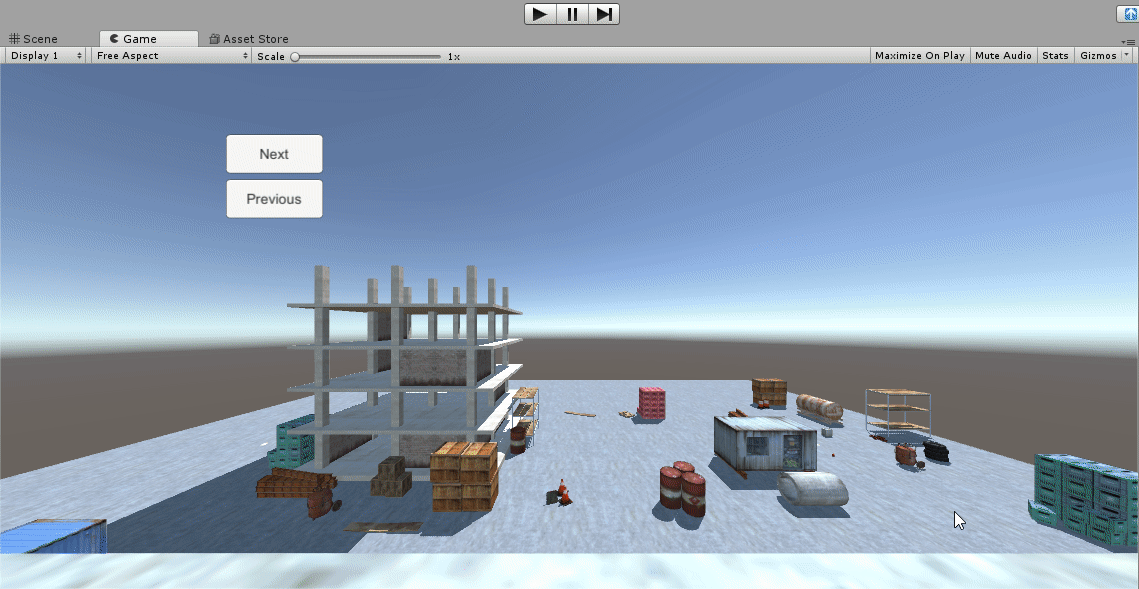

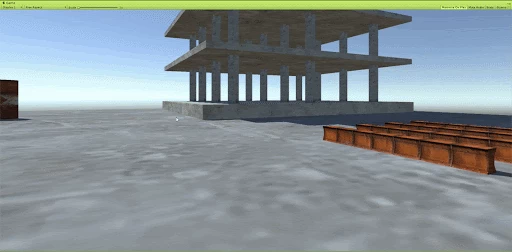

Testing the Waypoints

Add additional Waypoint Positions to the Scene and position them so the user can see the rest of the Scene.

Additional Waypoints

You've now set up and configured the Waypoint Teleport component to work with your uniquely positioned Teleport Positions. You can now implement this form of locomotion with custom teleport positions in any of your VR projects.

By completing this module, you’re now able to:

Create and position new Waypoints for the VR user to visit

Connect them to the WaypointTeleport Component
