Implement data persistence between sessions

Right now, when you’re testing the work-in-progress application in Unity Editor, the color that you select for the forklifts in the warehouse won’t be saved the next time you test the application. If you create a build of this app, it will be a standalone experience each time the user runs it.

It would be helpful to save the user’s last chosen color, so that it’s automatically selected when they start the application. In this tutorial, you’ll build on your previous work to implement data persistence between scenes and do so between sessions.

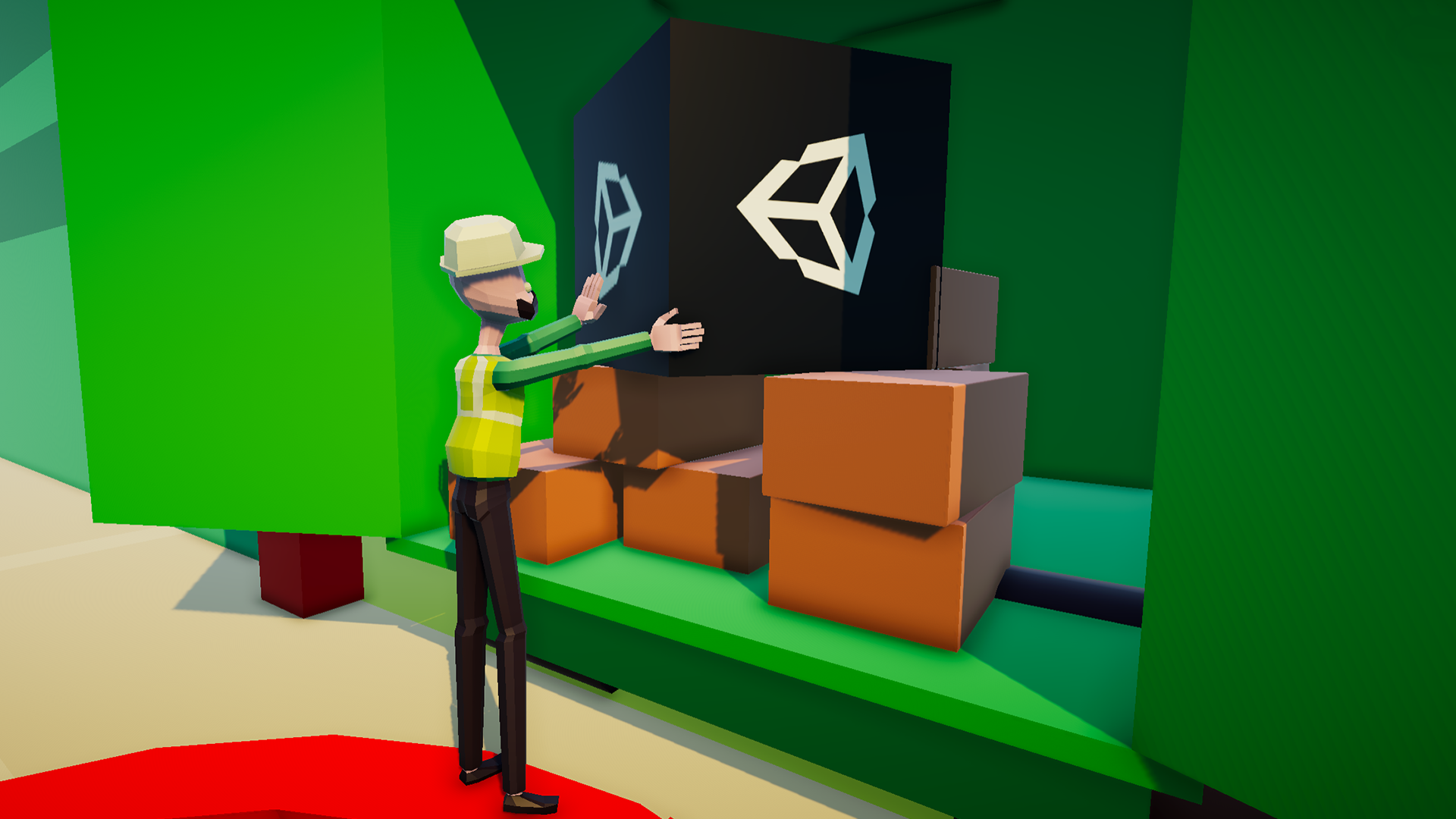

Here’s what that might look like in your project:

Tip: If you’ve taken a break between this tutorial and the previous one, you might find it helpful to review the introduction to data persistence before continuing.

In this tutorial, you’re going to write the color selected by the user to a file. Then, you’re going to configure the MainManager to check whether that file exists when the application starts. If the file does exist, then the MainManager will read the color stored to it and set the color picker to that color.

Before you get started, take a few minutes to review the project brief. Imagine that you will perform this task on your own. Write down answers to the following questions:

• What do you need to implement, and where will you implement it ? Write down your thoughts now, to compare them with the approach we take.


• Where have you encountered similar functionality before, in Create with Code or other learning experiences? Even if you can’t access the code, think about examples of data persistence between sessions that you’re familiar with.


• Beyond Unity Learn, what resources could help you do this? Think about options within the Unity ecosystem and beyond it.

Taking a few minutes to reflect on what you already know before you begin a task is a very useful exercise, particularly if that task feels challenging. If you completed Unity Essentials, you explored the mindset established creators take to learn Unity. This is a great time to refresh your memory of that approach.

Identifying the tools at your disposal and reviewing your previous learning can provide really helpful opportunities to think through different approaches to meet a brief. You can take this approach as you continue your learning journey far beyond this pathway — it’s rare that there’s only one way to do something!

For data to persist between sessions, it needs to be stored in some way. In your case, you’ll need to convert the color your user selects into a format that can be stored and then read when they load the application again.

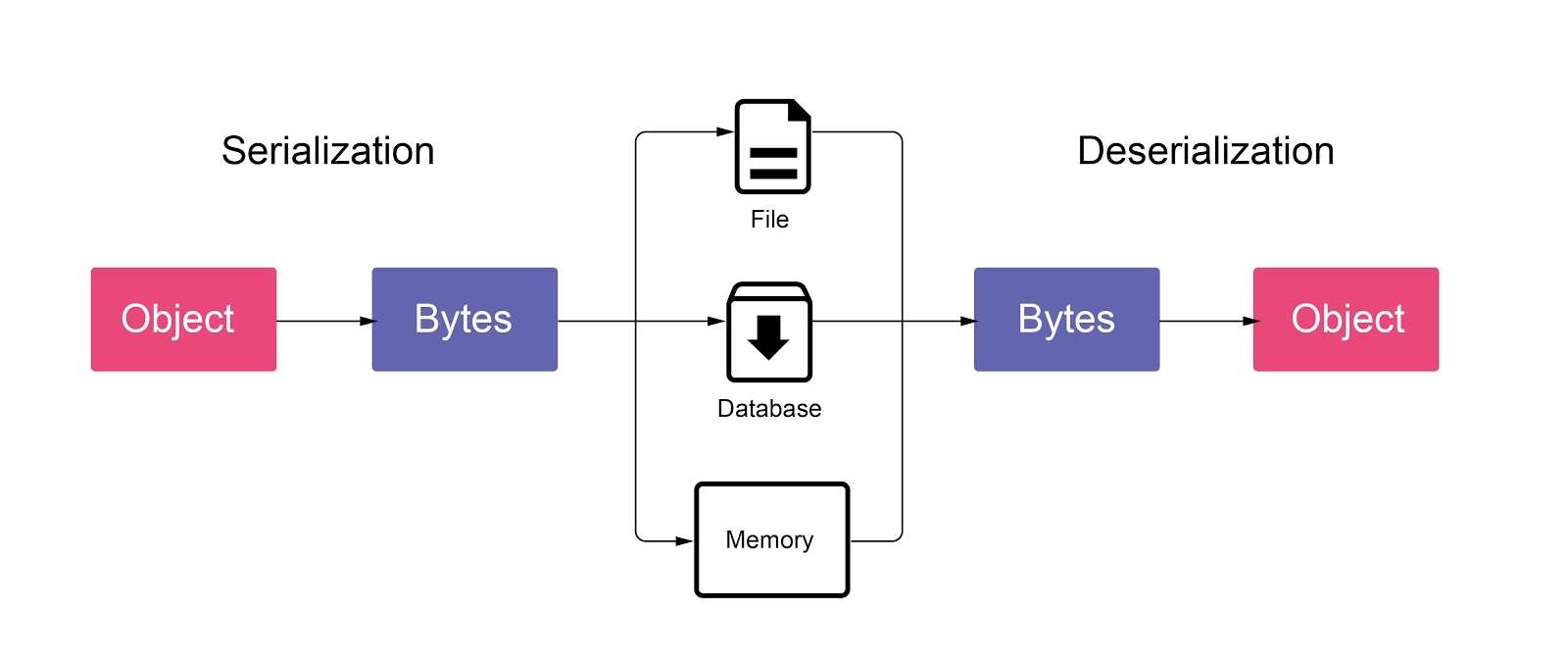

The process of converting complex data into a format in which it can be stored is called serialization. When you’re ready to access the data again, the process of converting it back is called deserialization.

There are different formats that you can use to store data, depending on what the data is and what you want to do with it. In this case, you’re going to use the JSON format.

JSON is a text format used to store data and exchange it between platforms. It was first developed for the web, and its full name is JavaScript Object Notation. It’s based on JavaScript but is language independent — you can use it whether you’re writing C# code or using any other programming language.


The JSON format stores data in the form of a key:value pair. The key is a string, and the value can be:

• a number
• a string
• a Boolean (true/false)
• an array of values
• Another JSON object

How does this format work?

The following JSON string encodes an object storing basic information about a person:

{
  "name": "John",
  "age": 27,
  "address": {
    "streetAddress": "21 2nd Street",
    "city": "New York"
  }
  "pet": [“dog”, “cat”]
}

Let’s break down the example:

• Each object is surrounded by curly braces ( { } ).
• Each entry is in the form of a key:value pair, separated by a comma.
• The entry “pet” is an array of strings — array values are listed between square brackets ( [ ] ).
• The value associated with the entry “address” is between curly braces too — this is because it is another JSON object.

JSON was developed to exchange data between very different systems, which makes it a good fit for saving data in your application. Unity has a helper class called JsonUtility, which allows you to take a serializable class and transform it into its JSON representation. Let’s see how this works for both serializing and deserializing data.

Serializing data

Consider the following PlayerData class:

[Serializable]
public class PlayerData
{
    public int level;
    public Vector3 position;
    public string playerName;
}

Imagine that you want to pass this class to JsonUtility with the following values:

PlayerData myData = new PlayerData();
myData.level = 1;
myData.position = new Vector3(3.0f, 4.4f, 2.3f);
myData.playerName = "John";

Calling string json = JsonUtility.ToJson(myData); will result in the following JSON string:

{
    “level”: 1,
    “position”: {
        “x” : 3.0,
        “y” : 4.4,
        “z” : 2.3 },
    “playerName”: “John”
}

Note that since position is a vector3, it is encoded as a new JSON object with three keys: x, y, and z. This is because the Vector3 class (extremely simplified) is:

[Serializable]
public class Vector3
{
    public float x;
    public float y;
    public float z;
}

Deserializing data

JsonUtility also has a method that does the inverse of the process you’ve just seen: FromJson<T>.

This method will take a string containing some JSON data and create an instance of the object with its fields filled in. It uses a template argument — as you may have noticed when reviewing the PlayerData JSON string, the original type of that data is not stored in the JSON file. Unity needs the template argument to read the right value in the right field.

To extend our example, calling PlayerData myData = JsonUtility.FromJson<PlayerData>(json); will fill myData with the values in the JSON string.

Limitations of JsonUtility

There are some limitations to Unity’s JsonUtility class, which was designed for performance and simplicity. JsonUtility doesn’t work on primitive types, arrays, lists, or dictionaries.

As you might expect, JsonUtility only works on the Serializable type — MonoBehaviour or the other classes/structs you write onto which you can add the [Serializable] attribute. If you try to save a class that contains multiple pieces of data and one of them won’t save, it’s probably because it isn’t serializable. For example, if you convert a class to JSON that has a dictionary in the middle, the dictionary won’t be saved because it’s not serializable. If something appears not to be saving properly in a class, check to make sure that it’s a serializable type!

For more information, consult the Unity documentation on JSON Serialization.

To save and load the user’s last chosen color, you’ll need three things in the MainManager class:

1. A SaveData class that stores the color.
2. A Save method that transforms that class into JSON format and writes it to a file.
3. A Load method that transforms the data from the JSON file back into the SaveData class.

Let’s start with the SaveData class:

1. Open MainManager.cs in your IDE.

2. Add the following code at the end of the MainManager class (within the scope of its closing brace):

[System.Serializable]
class SaveData
{
    public Color TeamColor;
}

3. The final line will be highlighted as an error in your IDE because we need to add a new namespace to the script. At the top of your script, add the following:

using System.IO;

Review the new code

SaveData is a simple class, which only contains the color that the user selects. Note that you have added a [System.Serializable] attribute above it. This line is required for JsonUtility, as you just learned — it will only transform things to JSON if they are tagged as Serializable.

Why are you creating a class and not giving the MainManager instance directly to the JsonUtility? Well, most of the time you won’t save everything inside your classes. It’s good practice and more efficient to use a small class that only contains the specific data that you want to save.

Next, let’s add the SaveColor method:

1. Leave a line free after the SaveData class.

2. Add the following code:

public void SaveColor()
{
    SaveData data = new SaveData();
    data.TeamColor = TeamColor;

    string json = JsonUtility.ToJson(data);

    File.WriteAllText(Application.persistentDataPath + "/savefile.json", json);
}

Review the new code

Let’s break down this new method in sequence. First, you created a new instance of the save data and filled its team color class member with the TeamColor variable saved in the MainManager:

SaveData data = new SaveData();
data.TeamColor = TeamColor;

Next, you transformed that instance to JSON with JsonUtility.ToJson:

string json = JsonUtility.ToJson(data);

Finally, you used the special method File.WriteAllText to write a string to a file:

File.WriteAllText(Application.persistentDataPath + "/savefile.json", json);

The first parameter is the path to the file. You’ve used a Unity method called Application.persistentDataPath that will give you a folder where you can save data that will survive between application reinstall or update and append to it the filename savefile.json.

Note: The Unity Scripting API lists the actual paths per platform.

The second parameter is the text you want to write in that file — in this case, your JSON!

Now let’s add the LoadColor method:

1. Leave a line free after the SaveColor method.

2. Add the following code:

public void LoadColor()
{
    string path = Application.persistentDataPath + "/savefile.json";
    if (File.Exists(path))
    {
        string json = File.ReadAllText(path);
        SaveData data = JsonUtility.FromJson<SaveData>(json);

        TeamColor = data.TeamColor;
    }
}

Review the new code

This method is a reversal of the SaveColor method:

string path = Application.persistentDataPath + "/savefile.json";

It uses the method File.Exists to check if a .json file exists. If it doesn’t, then nothing has been saved, so no further action is needed. If the file does exist, then the method will read its content with File.ReadAllText:

if (File.Exists(path))
{
    string json = File.ReadAllText(path);

It will then give the resulting text to JsonUtility.FromJson to transform it back into a SaveData instance:

SaveData data = JsonUtility.FromJson<SaveData>(json);

Finally, it will set the TeamColor to the color saved in that SaveData:

TeamColor = data.TeamColor;

Double check your new code

Before you continue, double check the code you’ve added to make sure it’s within the scope of the MainManager class:

[System.Serializable]
class SaveData
{
    public Color TeamColor;
}

public void SaveColor()
{
    SaveData data = new SaveData();
    data.TeamColor = TeamColor;

    string json = JsonUtility.ToJson(data);

    File.WriteAllText(Application.persistentDataPath + "/savefile.json", json);
}

public void LoadColor()
{
    string path = Application.persistentDataPath + "/savefile.json";
    if (File.Exists(path))
    {
        string json = File.ReadAllText(path);
        SaveData data = JsonUtility.FromJson<SaveData>(json);

        TeamColor = data.TeamColor;
    }
}

You’re nearly finished, but first you need to load the saved color (if one exists) when the application starts and save the color on exit. Let’s implement that now:

1. In MainManager.cs (which you should still have open), find the Awake method.

2. Call the LoadColor method at the end of Awake:

LoadColor();

3. Save your changes, then open MenuUIHandler.cs in your IDE.

4. At the end of the Start method, add the following code:

ColorPicker.SelectColor(MainManager.Instance.TeamColor);

This line will pre-select the saved color in the MainManager (if there is one) when the menu screen is launched.

5. At the beginning of the Exit method, add the following code:

MainManager.Instance.SaveColor();

This line will save the user’s last selected color when the application exits.

Finally, let’s add some quick testing functionality to the MenuUIHandler so that you can save and load the color from the application instantly:

1. Add the following two methods to MenuUIHandler.cs:

public void SaveColorClicked()
{
    MainManager.Instance.SaveColor();
}

public void LoadColorClicked()
{
    MainManager.Instance.LoadColor();
    ColorPicker.SelectColor(MainManager.Instance.TeamColor);
}

2. Save your changes.

3. Link these methods to the Load and Save Color buttons. If you need to recap this process, review how you configured the Start button.

Test in the Editor

Test your changes to the application thoroughly, including the standard save on exit and load on launch.

In this tutorial, you’ve implemented data persistence between sessions in your application, so that the last color chosen by the user is pre-selected when they reload the application. Great stuff!

Next, you’ll prepare a submission by applying what you’ve learned to meet a basic game brief in a new Unity project.
