9-slicing is a 2D technique which allows you to reuse an image at various sizes without needing to prepare multiple assets. It’s often useful to be able to dynamically resize graphic elements in a game or application. In this tutorial, you will learn to create and use the 9-Slicing technique.

Games

Developing Interactive User Interfaces--Companion Tutorials (2019.2+)

Introduction to 3D Mobile Games for Artists--Companion Tutorials (2018.4)

This tutorial has been verified using Unity 2019.4.10f1 LTS - https://learn.unity.com/tutorial/using-9-slicing-for-scalable-sprites-2019-3

Dialog boxes, portraits, and other informational displays often use the same frame, despite being different sizes. Rather than creating duplicate art at various sizes, Unity can dynamically stretch and tile designated parts of a Sprite to allow one Sprite to serve as the border (or the background) for UI elements of many sizes. Games like Arkanoid and Pong, for instance, use paddles to defend the goal from balls. Depending on difficulty level, and through the use of power-ups, the designer may want to change the size of the paddle during play. A 9-Sliced Sprite can scale as necessary to accommodate changes in real time.

Designating borders in the Sprite Editor is known as 9-Slicing. From the original Sprite (Figure 02), the entire image is scaled by keeping the corners at their original size and either stretching or tiling the top, bottom, left, and right slices (Figure 07).

For the first part of this tutorial, we’ll create a panel to demonstrate how to 9-slice a Sprite and use Sliced vs. Tiled modes. Then we’ll build a simple paddle as one might use in a game like Arkanoid, where you move the mouse to move the paddle horizontally, and use the scroll wheel to adjust the paddle size.

In order to complete this tutorial, you must add the 2D Sprite package via the Package Manager.

1. Open the Package Manager window by clicking Window > Package Manager.

2. Search for 2D Sprite and click Install (Figure 01).

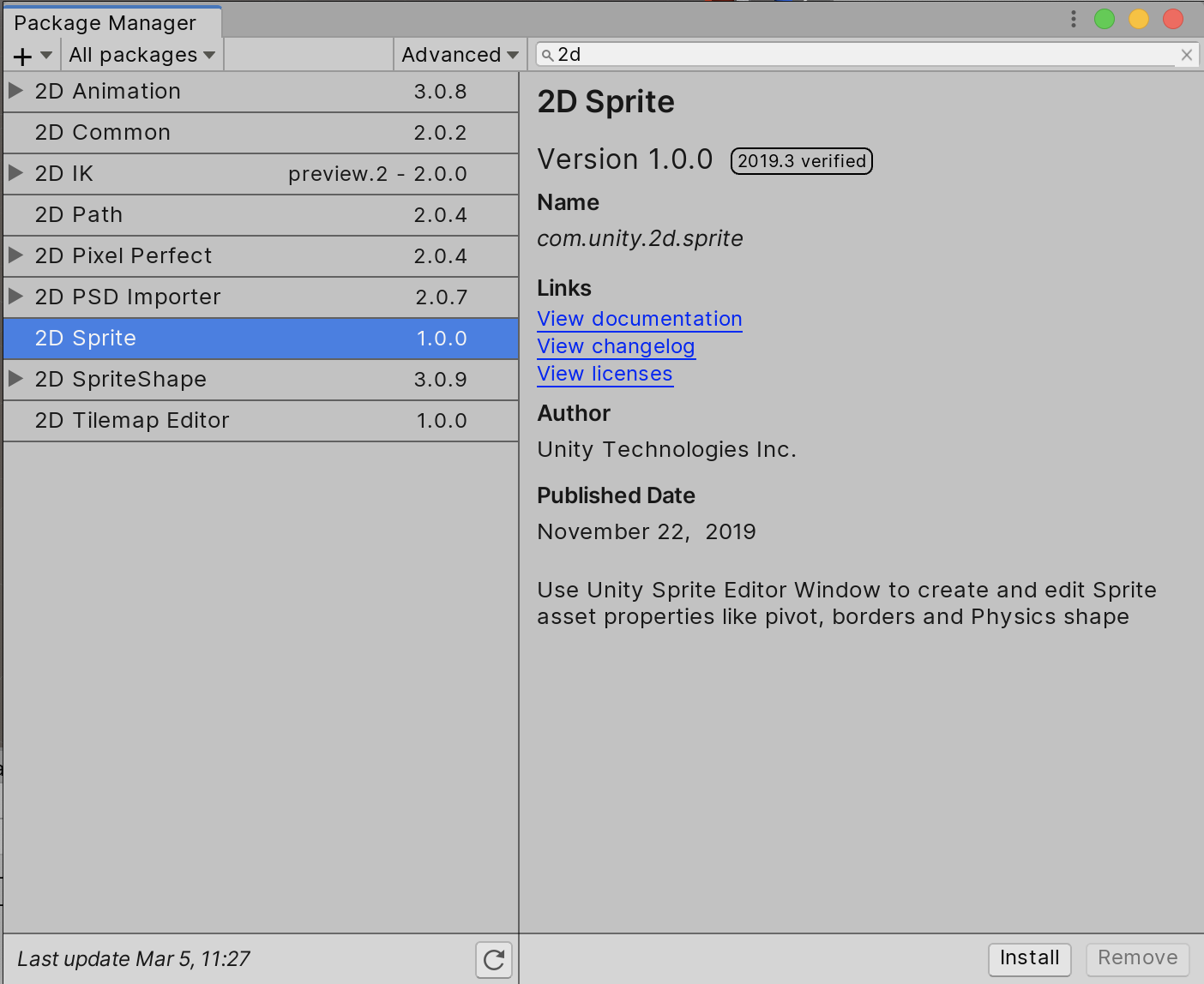

Figure 01: 2D Sprite in Package Manager

1. Using your art tool of choice, create a Sprite to represent your panel border and background. See Figure 02 for an example.

2. Drop the Sprite into your project, highlight it in the Project window, set its Texture Type to Sprite (2D and UI) and its Mesh Type to Full Rect (Figure 03).

3. Click Apply at the bottom of the Inspector, and click to open the Sprite Editor (Figure 04)

4. Either drag the green lines at the edges of the Sprite inward, or set the border fields to mark the top, bottom, left, and right borders (Figure 05).

5. Click Apply at the top of the Sprite Editor window and close the Sprite Editor.

6. From the GameObject drop-down, select UI > Panel.

7. Using Image (Script), located in the panel’s Inspector, set the Source Image to your Sprite. By default, the panel image is partially transparent (Figure 06).

8. Adjust color and transparency, if desired.

9. When changing the values in the panel’s Rect Transform for the offsets and size, or manipulating the edges and size directly with the Rect Tool, notice how the 9-sliced edges and center are stretched to fill the panel with one instance of the source image.

10. In Image (Script), set Image Type to Tiled.

11. Adjust the canvas settings to your preference.

12. Sprite import settings as well as the Canvas’ UI Scale Mode settings — dictated by project needs — directly affect the appearance of 9-sliced Sprites. Here, the panel was set to 640x360 pixels, and the Canvas Scaler was set to scale with screen size to match a reference resolution of 640x360, using the Sprite’s pixels per unit setting (Figure 07).

Figure 02: Our 9-sliced Sprite.

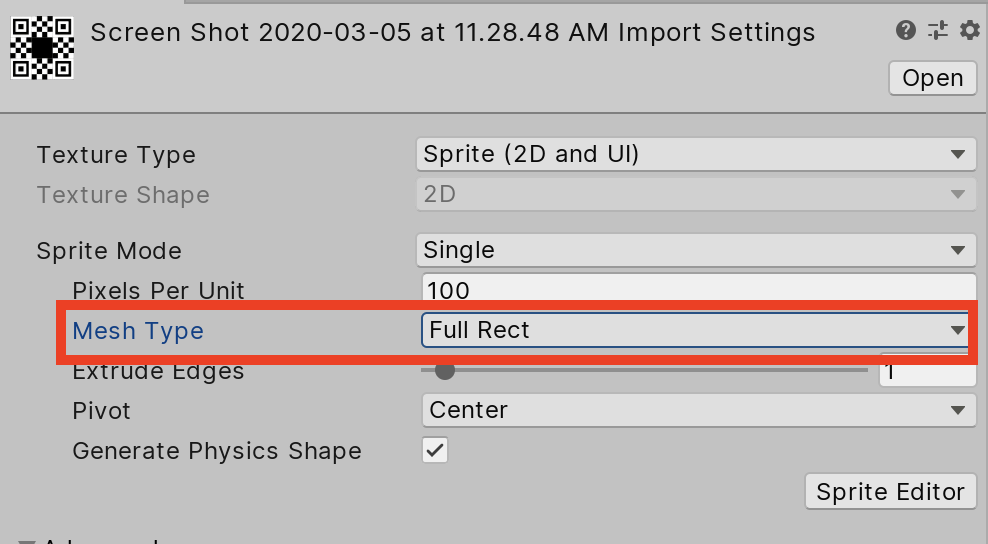

Figure 03: Setting the Sprite’s Mesh Type to Full Rect ensures it will display correctly when 9-sliced.

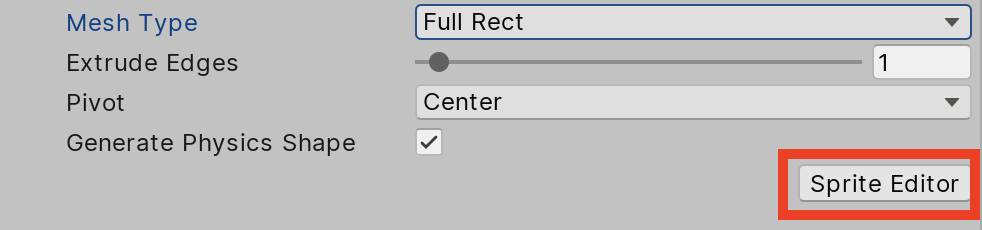

Figure 04: If you open the Sprite Editor before applying changes, Unity will ask you to apply or revert changes.

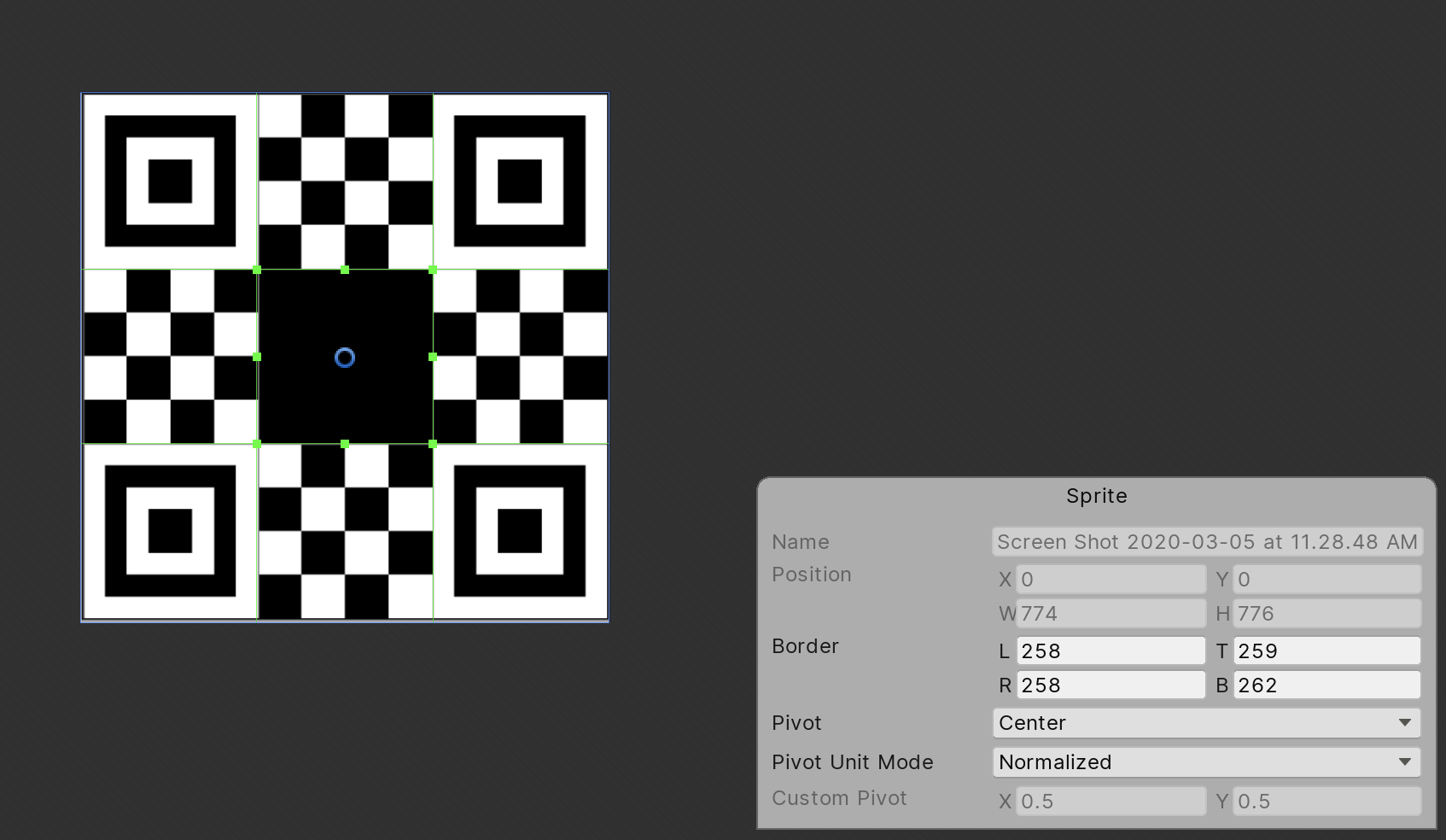

Figure 05: The example Sprite was created to emulate 8-bit systems, but the center, corners, and edges don’t need to be the same size.

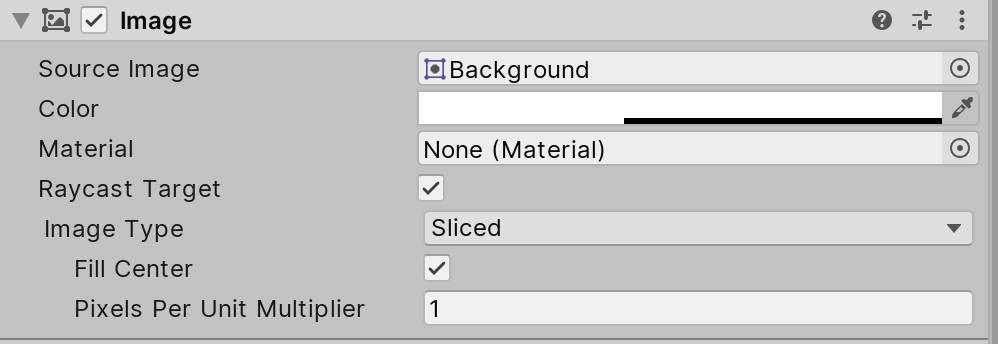

Figure 06: The default settings for the UI panel

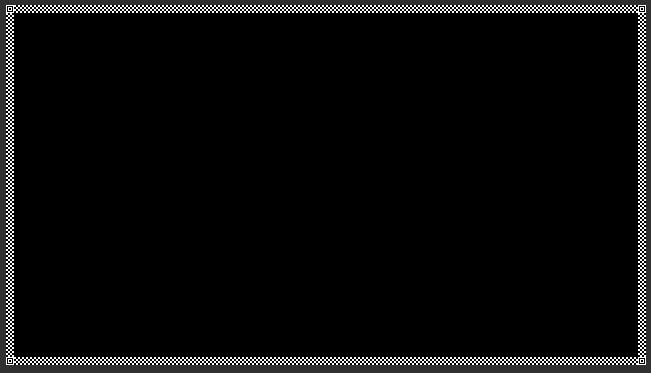

Figure 07: For this image, the Canvas was set to Scale with Screen Size. This lets the panel resolution match a preset target across many display types and resolutions.

1. Delete or hide the panel from the above exercise.

2. Create an Empty GameObject and name it DynamicPaddle.

3. Create a new C# script called Paddle, and attach it to DynamicPaddle. Double-click Paddle in the Project window to open it in your selected script editor.

4. Beginning just inside the class definition (line 7), type:


float minSize = 5;
float maxSize = 10;
float resizeSpeed = 3;
float positionY;
SpriteRenderer sprite;

5. In Start ( ), beginning on line 14, type:

Cursor.visible = false;
sprite = GetComponent<SpriteRenderer>();
sprite.size = new Vector2(7.5f, sprite.size.y);
positionY = -Camera.main.orthographicSize + sprite.size.y * 0.5f;

6. In Update ( ), beginning on line 22, type:

float sizeX = sprite.size.x;
sizeX += Input.GetAxisRaw("Mouse ScrollWheel") * resizeSpeed;
sizeX = Mathf.Clamp(sizeX, minSize, maxSize);
sprite.size = new Vector2(sizeX, sprite.size.y);
Vector3 mousePosition = Camera.main.ScreenToWorldPoint(Input.mousePosition);
transform.position = new Vector3(mousePosition.x, positionY);

7. Paddle is now complete. Save changes and return to the Unity Editor.

8. Highlight DynamicPaddle and add a Sprite Renderer component.

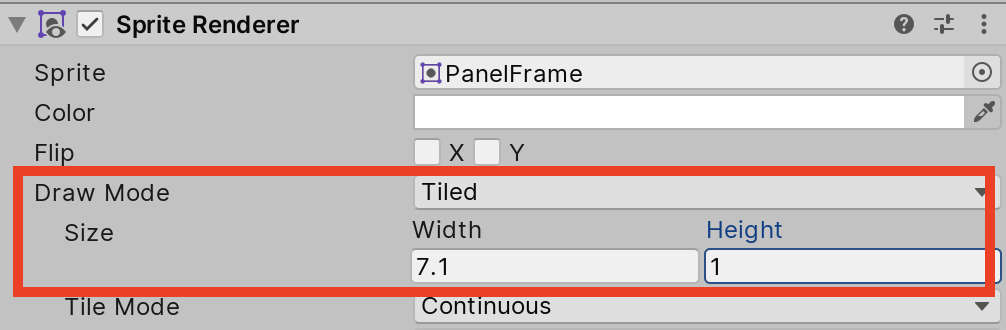

9. Set the Sprite to your 9-sliced Sprite from earlier. Set the Draw Mode to Tiled, and set the Width to 7.5 (Figure 08).

10. Press Play to enter Play mode and scroll the mouse wheel to change the size of the paddle. Press Escape when you’re done to make the mouse cursor visible again before exiting Play mode (Figure 09).

11. Optionally, change the Draw Mode to Sliced and try the demo again.

Figure 08: Depending on your art, a different height may work better.

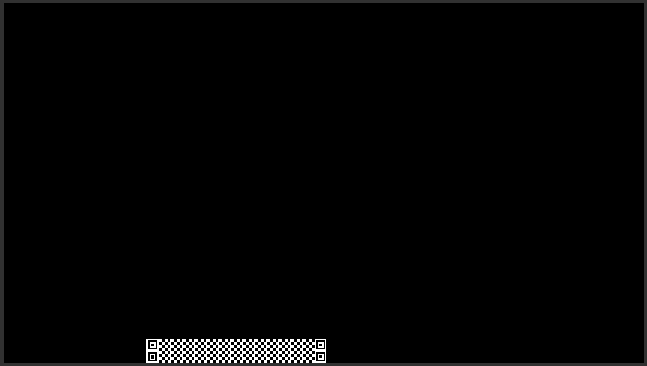

Figure 09: Our resizable paddle in action

These are just two of the ways 9-slicing can be used so that one piece of artwork can appear in various sizes across potentially many Sprite-based elements.
