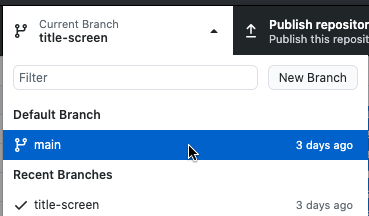

Create a branch for your title screen and commit changes

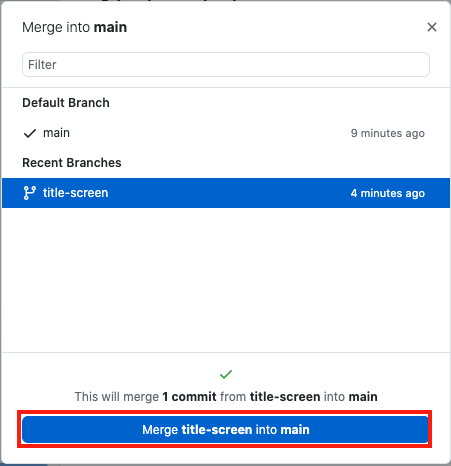

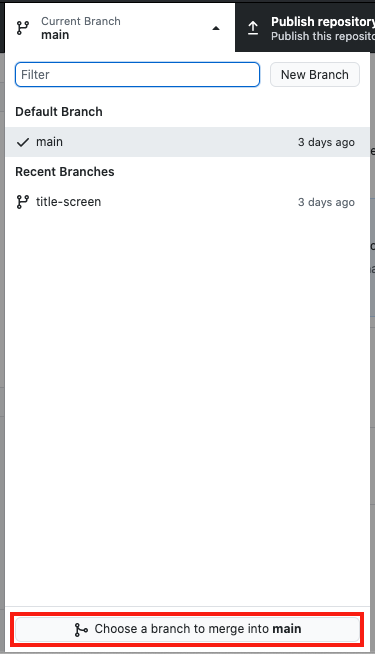

Merge your branch with the master branch

Continue working on your submission

Submit your project

Click on the object to know what shape it is and it's color

Jr. Programming Submission

Dagger_Ayush

i forgot to create a gift hub,(just do a menu scene and chose what type monster) can change the type of monster in inspector for grass, water and fire, they do more damage for each type of monster

Monster Clash

jeanlucasyfortunatti

Endless runner prototype using a faun creature I created in Blender.

Faun Run_6.mp4

Faun Run

VelcoStudios

My submission showing some code example of the 4 OOP pillars use

Supercar Engine Symphony

Yozhyk_69

Aura Farming Simulator

carmstrong_unity722

Tile sliding and matching game with a Japanese garden theme

https://play.unity.com/en/games/82d75ca9-c3bf-41e5-9e34-35acac255e4b/yottsu-ishi

Yottsu Ishi

DrCopter60

Cook up some white powder with a possibly inaccurate process in my first game.

Crack House Simulator (Alpha)

Charmanpk_Dev

cube and sphere inherited from object, which has default move action. and they also overwrite the parent move action.

Movie_001.mp4

sdyy

Use best practices and Unity's Profiler window to improve performance in code.

Level 1 Code optimization

Joy Horvath

Instructional Designer

Demonstrate an understanding of core version control functionality in order to maintain, integrate, and modify projects kept in repositories.

Level 1 Version control

ベストプラクティスと Unity の Profiler ウィンドウを使用して、コードのパフォーマンスを向上させます。

全くの初心者のためのコード最適化

HISAO SETOGUCHI

Technical Lead Writer

Now that you understand the pillars of object-oriented programming and how they are implemented, you’re ready to apply them in a brand new project. This is also a good opportunity to practice branching and merging in a version control repo.

Deduce the script method that uses the most CPU time (vs. a script method that does not) by using the CPU profiler in the Profiler window

Differentiate a loop that efficiently goes through a collection once in an Update() call from many loops that go through the same collection in an Update() call

Recognize possible issues that might cause performance problems (e.g., too many RigidBody components, too many Colliders, too many shadows, etc.), given a scenario

Investigate performance issues caused by poly count, texture sizes, or too many objects on the screen by using Unity's Stats window

Deduce the script method that uses the most CPU time (vs. a script method that does not) by using the CPU profiler in the Profiler window

Differentiate a loop that efficiently goes through a collection once in an Update() call from many loops that go through the same collection in an Update() call

Recognize possible issues that might cause performance problems (e.g., too many RigidBody components, too many Colliders, too many shadows, etc.), given a scenario

Investigate performance issues caused by poly count, texture sizes, or too many objects on the screen by using Unity's Stats window

Debug performance issues

Identify the different version control solutions that can be used to maintain a project

Describe how version control is used to maintain a project

Prevent code loss by correctly resolving merge conflicts

Prototype or experiment with different code concepts by using branching

Communicate your changes on the project to the team by using commit messages

Access, modify, and contribute to a project by using core version control functionality

Maintain a project by correctly implementing version control

Profiler ウィンドウの CPU プロファイラーを使用して、最も CPU 時間を消費するスクリプトメソッドとそうでないスクリプトメソッドを推測する

Update() の呼び出しで一度だけ効率的にコレクションの要素を処理するループと、Update() の呼び出しで同じコレクションの要素を処理する多数のループを区別する

シナリオを想定し、パフォーマンスの問題を引き起こす可能性のある問題（RigidBody コンポーネントが多すぎる、Collider が多すぎる、シャドウが多すぎるなど）を認識することができる

Unity の Stats ウィンドウを使用して、ポリ数、テクスチャサイズ、画面上のオブジェクト数が多すぎることによるパフォーマンスの問題を調査する

シナリオを想定し、パフォーマンスの問題を引き起こす可能性のある問題（RigidBody コンポーネントが多すぎる、Collider が多すぎる、シャドウが多すぎるなど）を認識できる

パフォーマンスに関する問題のデバッグ

Just in case we refreshed this mission while you weren't looking, please be sure you have completed this content before attempting this submission:

Mission — Junior Programmer: Manage scene flow and data

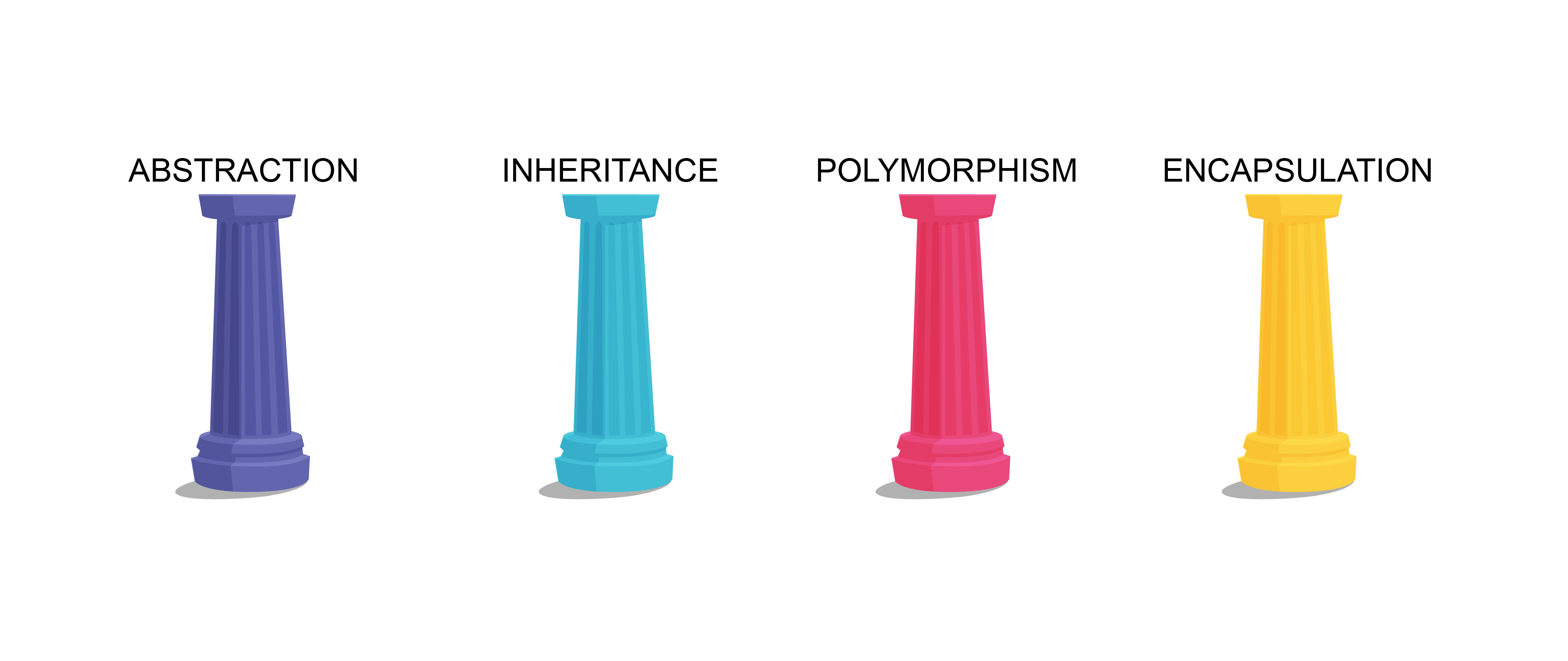

In the previous tutorials, you learned about the four pillars of object-oriented programming and how they are applied:

Abstraction: reducing duplicate code by “abstracting out” repeated details or information.

Encapsulation: “encapsulating” data and the methods that manipulate that data together in a class, protecting it from misuse by other classes.

Inheritance: child classes deriving (or “inheriting”) behavior from parent classes.

Polymorphism: changing (“morphing”) methods into many (“poly”) forms (i.e., method overloading and method overriding).

In this submission challenge, you will create a new project from scratch, demonstrating each of these pillars in the code.

Carefully plan your program’s architecture at a high level before you begin coding. Along the way, you’ll have an opportunity to practice branching and merging code using version control software.

This challenge is not going to be easy, but you’ll be a more thoughtful, strategic programmer by the time you complete it!

A link to your project’s GitHub repo, showing multiple commits with commit messages and at least two branches

Demonstration of abstraction (higher-level methods that abstract unnecessary details)

Demonstration of inheritance (parent/child classes)

Demonstration of polymorphism (method overriding or overloading)

Demonstration of encapsulation (getters and setters)

Before you get too involved in theoretical programming constructs, make sure your project is set up properly for version control.

1.  Create a new repo configured for Unity named something like “Programming-Theory-Repo.”

2.  Create a new empty 3D Unity project in your repo named something like “Programming Theory Project.”

3.  After your project is created, do an initial commit to the repo.

You should now have an empty Unity project backed up in a new version control repo.

If you need a reminder of how to do any of the above tasks, refer to the more detailed steps in the previous submission.

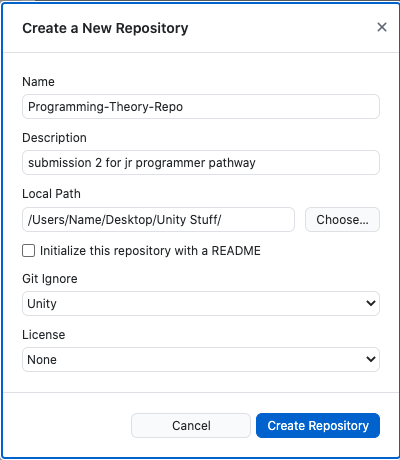

Create a New Repository window from GitHub Desktop with Name set to “Programming-Theory-Repo and Git Ignore dropdown set to Unity.

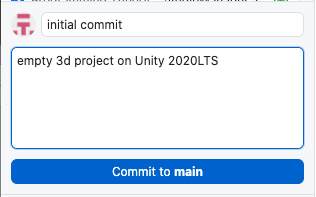

Commit panel of Github Desktop with the Summary set to “initial commit” and the Description set to “empty 3d project on Unity 2020LTS”

With your project and repo ready to go, spend some time coming up with a concept for your project that will allow you to demonstrate the four pillars of object-oriented programming.

Keep in mind that this project can be a prototype rather than an actual full-fledged project. It can use primitive shapes or even be entirely text-based. You don’t have to start with a blank canvas either — if you completed Create with Code, you can repurpose the assets from one the prototypes or challenges. The goal is not to create a visual masterpiece from scratch — just to come up with something creative that demonstrates the OOP pillars: abstraction, encapsulation, inheritance, and polymorphism.

As you develop your concept, outline and track of your ideas in a design document or project brief. If you completed Create with Code, take inspiration from the template you used during your Personal Project labs. You could also draw from the design brief of the Resource Management project you just worked on. Your document can include a bulleted outline, sketches, diagrams — whatever best allows you organize and iterate on your ideas.

Of course, in the normal course of project development, you would never base your project features on the need to demonstrate programming concepts! It would be the reverse: the need for programming concepts would be driven by the project features. However, reversing the priorities does present a fun design challenge! How can you design a project that makes use of these four programming concepts? It might be most helpful to think through the pillars in the following order:

To begin your brainstorming, what objects can you think of that derive behaviors from a more generic object? What objects can you think of that are subtypes of other objects? For example:
