You’ve almost completed your game’s core functionality. In this tutorial you’ll add a friendly non-player character (NPC) who shares a message with the player character, explaining what the task is – to fix all the broken robots.

Note: For the purposes of this tutorial, we chose to use the Ruby’s Adventure asset set, and the images used in instructions will reflect this. If you chose another asset set, the file names will be the same, but in your corresponding theme folder.

You’ve already learned how to configure character’s GameObjects like the PlayerCharacter or the enemies of your game. The first step of this tutorial will cover some of the same setup: slicing the spritesheet, creating a new GameObject, and adding animations.

To set up the NPC character for your game, follow these instructions:

1. In the Project window, navigate to Assets > _2DAdventureGame > Art > [Your Chosen Project] > Characters, and select the NonPlayerCharacterSheet spritesheet.

2. In the Inspector window, select the Open Sprite Editor button and slice the sprite atlas in a 2 by 2 grid.

If you need to recap this process, review the guidance in Slice the tileset into sprites.

3. In the Project window, select the three sprites for the NPC animation, then drag and release them over the Hierarchy window.

This process will automatically add a new GameObject to the scene with an Animator Controller set up with an animation clip using the sprites that you have chosen.

4. When prompted with the Create New Animation dialog, name the animation “NPC” and save it in a new folder inside your 2DAdventureGame > Animation > [Your Chosen Project] folder.

5. Rename the new GameObject in the scene “NPC”.

6. Go to the Animation window (Window > Animation > Animation), and change the Sample Rate property to 4, just as you did previously with other animations.

7. Now that the NPC sprite is visible in the Scene view, position it in the location where you want the NPC to interact with the player.

Note: If you want to change the size aspect ratio of your NPC, you can adjust the Pixels Per Unit value of its sprite sheet.

8. Add a Box Collider 2D component to the NPC GameObject and scale it to cover the bottom half of the sprite just as you did for the player and enemy characters.

9. Create a new layer for the NPC and set the NPC GameObject to that layer.

10. Turn the NPC GameObject into a prefab.

11. Test the game and make sure that the animations and collisions work as expected.

The NPC is going to tell the player that they need to fix the robot enemies, but if that text is constantly displayed on screen that’s going to take up space that could be better used. The NPC’s dialogue should only display when the player character is within a certain range, so you need to determine when the player character is close and facing the NPC.

You could use a trigger, but this means that the player character could trigger the dialogue without facing the NPC, which can feel clunky in practice. Instead, you’ll use a physics system feature called raycasting.

Raycasting is the action of casting a ray (straight line) in the scene and checking whether that ray intersects with a collider. A ray has a starting point, direction, and length. You cast a ray because the check is made from the starting point along the ray until its end.

To set up the raycast, follow these instructions:

1. Open the PlayerController script in your IDE.

2. At the top of the class, declare a new public input action, as you did for the projectile launch action:

public InputAction TalkAction;

3. Save your changes

4. In the Unity Editor, set up an event-based Input Action for the X key or your choice of alternative input, as you did when implementing projectile launch functionality in Detect input to launch a projectile.

5. In your PlayerController script, enable the Input Action in the Start function:

TalkAction.Enable();

6. In the Update function, add the following instructions:

RaycastHit2D hit = Physics2D.Raycast(rigidbody2d.position + Vector2.up * 0.2f, moveDirection, 1.5f, LayerMask.GetMask("NPC"));
if (hit.collider != null)
{
FindFriend(hit);
}

Here’s an explanation of this code:

• The RaycastHit2D type variable hit stores the result of a raycast, which is obtained by calling Physics2D.Raycast. There are multiple versions of Physics2D.Raycast; the version used here has four arguments (values you can pass to it).
  • The first argument is the starting point for the ray. Here it’s an upward offset from the position of the PlayerCharacter GameObject, which will test from the center of the sprite rather than its feet.
  • The second argument is the direction that the player character is looking, using moveDirection.
  • The third argument is the maximum distance for the ray – 1.5 units keeps the test within a short distance from the start point, because the characters aren’t shouting.
  • The final argument defines a layer mask, which is a way to only check within specified layers. Any layers that aren’t within the mask are ignored during the intersection test. The NPC layer is the only layer relevant for this test, so it’s the only one in the mask.
• If the raycast detects a GameObject that meets the defined conditions, the if statement below will execute and call the FindFriend function. You’ll see an error for now because the function hasn’t been defined yet – you’ll define the function next.

7. Create the function FindFriend that will first check if the correct input action was activated:

void FindFriend(RaycastHit2D hit)
{
if (TalkAction.WasPressedThisFrame())
       {

	}
}

The FindFriend function takes one parameter of type RaycastHit2D. This is because the hit variable calculated earlier will be used inside the function.

8. Within the nested if statement code block, add the following instruction to print the GameObject found in the Console window:

Debug.Log("Raycast has hit the object " + hit.collider.gameObject);

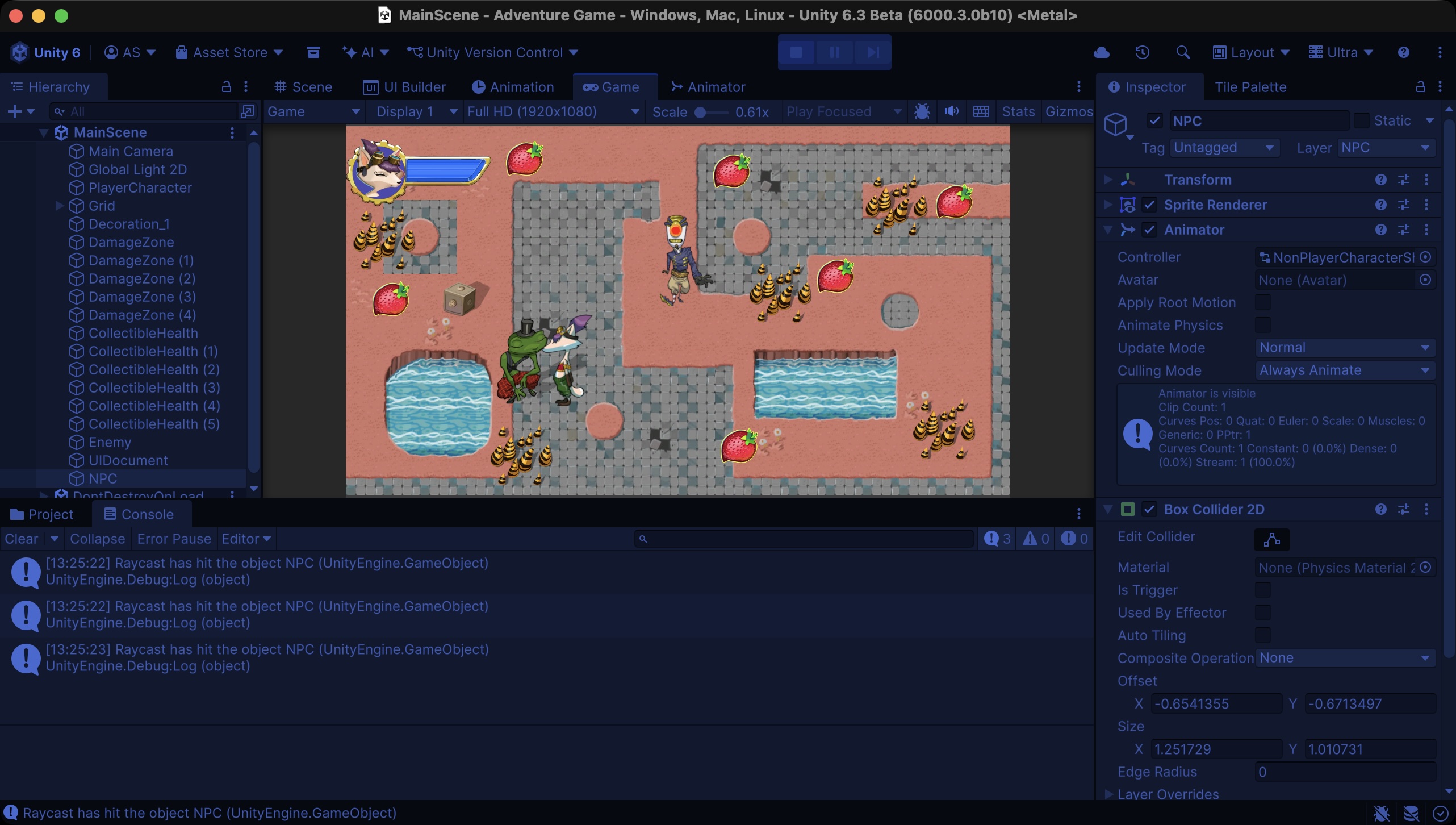

9. Save your changes, then return to the Unity Editor and test your game to confirm that the raycast works.

Next you’re going to create the UI window to display the NPC dialogue to the player.

Note: If you need more support to complete this step, refer back to Create a health display with UI Toolkit for detailed guidance.

To set up the NPC dialogue UI, follow these instructions:

1. In the Project window, inside the Assets folder, create a new UI Document asset, call it “NPCDialogue” and open it.

2. In the Hierarchy pane add a VisualElement and name it “Background”.

3. In the Inspector pane, use the foldout (triangle) to expand the Inlined Styles section and then the Background section, open the Image property dropdown, and select Sprite.

4. Select the Image property picker (⊙), then search for and select the correct UIDialogueBox sprite for your asset pack.

5. Still in the Background section, select the Color property box and set its A (alpha) value to 0.

This will make the dialogue box transparent.

6. Use the foldout (triangle) to expand the Size section and set the Size property’s Width and Height values to 100% so that it fills the entire canvas.

To add a Label element to the UI that will display the NPC’s dialogue to the player, follow these steps:

1. In the Library pane, under the Controls section, click and drag theLabel element into the Hierarchy pane as a child element of the Background element.

2. In the Size section, set the Label element’s Size property’ Width and Height values to 100%.

3. In the Inspector pane, use the foldout (triangle) to expand the Spacing section. In the Margin property box enter “0” and in the Padding property box enter “25px”, to set the same value for all sides.

Feel free to experiment with bigger or smaller values to find one that looks right to you.

4. In the Inspector pane, use the foldout (triangle) to expand the Text section, and set the Font, Size, and Color properties as you like.

5. Still in the Text section, set the Wrap property to normal.

6. Use the foldout (triangle) to expand the Attributes section. In the Text box, enter what you want the NPC to say to the player.

An example of what you could add is: “Press C to shoot cogs and help me fix these broken robots! Come speak to me when you’re finished!”

7. Save your changes.

To link the dialogue window to the rest of the game UI, follow these instructions:

1. In the Editor, double-click the GameUI asset to open it in the UI Builder window.

2. In the Library pane, select the Project button. Use the foldout (triangle) to expand the Assets section.

You’ll find the two UI Document assets that you’ve created listed.

3. Click and drag the NPCDialogue asset into the Hierarchy pane – this instantiates the UI Document, like a prefab can instantiate a GameObject. Rename it “NPCDialogue”.

Note: The instance of the NPCDialogue asset in the Hierarchy pane has a different icon.

Adding the additional UI here means that you can modify the individual asset you’ve created and the instance in the GameUI will reflect those changes. If you added multiple dialogue windows in your UI, you would then have to change the source asset once to update all instances.

4. With the NPCDialogue still selected, in the Inspector pane, use the foldout (triangle) to expand the Position section, then set the Position Mode property to Absolute.

5. Set the remaining property values in the Position section as follows:

• Top to 70%
• Right to 10%
• Bottom to 0%
• Left to 10%

If you want to adjust the exact positioning of the dialogue window on the screen, you can adjust the position values.

Important: Remember to set your Canvas GameObject to match the Game view so the Viewport pane reflects the positioning that players will encounter in the game. If you need a reminder on how to do this, check the instructions in Set the UI Canvas size to match the Game view.

Now that you’ve created the UI for the dialogue, you need to update your scripts to ensure that it’s displayed for a short amount of time after a raycast that finds the NPC’s collider.

To update the UIHandler script, follow these instructions:

1. Open the UIHandler script in your IDE.

2. At the top of the UI Handler class, declare the following three variables:

public float displayTime = 4.0f;
private VisualElement m_NonPlayerDialogue;
private float m_TimerDisplay;

Here’s an explanation of this code:

• The float variable displayTime stores the length of time that the dialogue window will be displayed, initialized to 4 but made public so you can adjust this in the Inspector window.
• The private VisualElement variable m_NonPlayerCharacterDialogue will store the reference to the VisualElement when you retrieve it.
• The private float variable timerDisplay is set to the value of displayTime when the dialogue window is instantiated, and will count down the time until the window needs to be hidden.

3. In the Start function, add the following three instructions:

m_NonPlayerDialogue = uiDocument.rootVisualElement.Q<VisualElement>("NPCDialogue");
m_NonPlayerDialogue.style.display = DisplayStyle.None;
m_TimerDisplay = -1.0f;

Here’s an explanation of this code:

• The first instruction stores the reference to the NPCDialogue element in the m_NonPlayerDialogue variable.
• The second instruction hides the element when the UIDocument GameObject is instantiated at the start of the game.
• The third instruction sets the m_TimeDisplay countdown to -1. This value is just below zero, and so can be used as a default for not displaying the UI.

4. Save your changes.

You’ve encountered a challenge!

Here, we encourage you to try writing the code on your own. But don’t worry – if you want to make sure you did it correctly, you can review the script in the next step.

You need to write two additional functions for the UIHandler script:

1. An Update function that decrements (decreases) the display timer if it’s above zero and then resets m_NonPlayerDialogue to DisplayStyle.None when the timer reaches zero.
2. A public function to display the NPCDialogue window when called and set the timer variable to begin the countdown.

Apply what you’ve learned so far in this course and try to write these functions yourself before you read on to review the solution.

Check the solution

To check your functions for the NPC dialogue window, follow these instructions:

1. Create a new Update function:

private void Update()
{

}

2. Add an if statement inside the Update function and code block that decrements the m_TimerDisplay variable by Time.deltaTime if the variable value is greater than zero:

if (m_TimerDisplay > 0)
{
m_TimerDisplay -= Time.deltaTime;

}

3. Nested within that same code block, add another if statement that hides the dialogue window when the countdown is over:

if (m_TimerDisplay < 0)
{
m_NonPlayerDialogue.style.display = DisplayStyle.None;
}

4. Check the full Update function before you continue:

private void Update()
{
if (m_TimerDisplay > 0)
       {
           	m_TimerDisplay -= Time.deltaTime;
           	if (m_TimerDisplay < 0)
           	{
               	m_NonPlayerDialogue.style.display = DisplayStyle.None;
           	}
       }
}

5. Create a new public function called DisplayDialogue:

public void DisplayDialogue()
{

}

6. Inside the function add the following instructions to make the UI window visible and set the timer to its full count:

m_NonPlayerDialogue.style.display = DisplayStyle.Flex;
m_TimerDisplay = displayTime;

7. Save your changes.

The final step to complete is to display the dialogue window after the raycast finds the NPC and the Talk action key binding is pressed.

To implement this functionality, follow these instructions:

1. Open the PlayerController script in your IDE and go to the FindFriend function. Find your nested if statement that currently prints to the Console window.

2. Delete the current instruction that prints to the Console window and in its place, add the following line of code:

UIHandler.instance.DisplayDialogue();

This will call the DisplayDialogue function from the UIHandler script you defined in the previous step, and thus create an instance of the dialogue UI on the screen.

3. The function no longer requires a parameter, so remove it from the function definition and delete the hit variable you passed when calling the function inside the Update method.

This is how your function should look now:

void FindFriend()
{
if (TalkAction.WasPressedThisFrame())
       {
           	UIHandler.instance.DisplayDialogue();
       }
}

4. Save your changes, then return to the Unity Editor and test the game.

Now the NPC dialogue should display for a short time when the PlayerCharacter is close to and facing the NPC and then provides the required input.

If you want to further develop your skills, explore new concepts, or improve your project, check out some of the optional activities below. Each one is tagged as either Easy, Medium, or Difficult, so you can choose the level of challenge.

These activities are entirely optional, so if you’re not interested, no problem – just skip this step. We do recommend attempting at least one of them in order to get the most out of this learning experience. Good luck!

Important: The Medium: Add Controls UI challenge is marked as optional, but it’s actually essential for a good gameplay experience, so we strongly encourage you to complete it. After this step, the affected script updates will be reflected in the Check your scripts sections at the end of the tutorials. To avoid confusion between the provided scripts and your own code, please make sure you complete this challenge first.

Medium: Add a controls UI

Right now, there’s a small issue: as the developer, you know which key activates the Talk action, but the player doesn’t. UI elements help guide players through the game, showing how to move, interact, and make decisions. You’ve already used UI to display the player’s health and added text instructions for launching projectiles, but you still need to show how to interact with the NPC.

To fix this, you’ll add a small dialogue bubble that appears when the PlayerCharacter detects the NPC with the raycast, showing the correct key to press, and disappears when the PlayerCharacter moves away.

1. In the Project window, go to the _2DAdventureGame > Tutorial_Demo > Demo_Art > Common folder, find the DialogueBox asset, and add it to your scene.

This asset is a sprite that already includes the X key printed on it, indicating which key should be pressed. If you chose a different key for the TalkAction binding, you’ll need to create your own sprite or find another way to display the correct key visually.

2. Resize the sprite and use the Move Tool to position it above the NPC. Then, set the Order in Layer value in the Sprite Renderer component to 2 so it appears above the characters and background.

Note: You’ve already learned earlier in this course how to control sprite rendering order using Sorting Layers and the Order in Layer property in Set the tilemap Order in Layer.

4. Set the new DialogueBox GameObject as a child of the NPC.

5. Now, create a new NonPlayerCharacter script and open the script in your IDE.

6. Delete the Update function.

7. Create one public variable called dialogueBubble of type GameObject:

public GameObject dialogueBubble;

8. In the Start function, set the dialogueBubble GameObject to inactive.

void Start()
{
dialogueBubble.SetActive(false);
}

You only want it to appear when the PlayerCharacter’s raycast detects the NPC.

9. Save the script.

10. In the Unity Editor, assign the script to the NPC GameObject as a component and assign the DialogueBox GameObject to the dialogueBubble property.

The main purpose of this script is to identify the NPC GameObject through code so that you can access its child GameObjects.

11. Open the PlayerController script and declare a new private NonPlayerCharacter variable.

private NonPlayerCharacter lastNonPlayerCharacter;

12. In the Update method, after calculating the raycast to detect the enemy, and inside the if statement that checks hit.collider != null, create a new variable of type NonPlayerCharacter to store a reference to the NPC GameObject detected by the raycast:

NonPlayerCharacter npc = hit.collider.GetComponent<NonPlayerCharacter>();

Note: GetComponent is relatively resource-intensive, so avoid calling it every frame. In this situation, GetComponent is only called when the PlayerCharacter raycast detects the NPC.

13. Still within the same if code block, on the next line, but before the FindFriend() function calling, add the following lines of code:

npc.dialogueBubble.SetActive(true);
lastNonPlayerCharacter = npc;

With these instructions, you activate the DialogueBox GameObject only when the raycast detects the NPC GameObject. The script also stores the detected NPC GameObject in the lastNonPlayerCharacter variable to keep track of the interaction during the current frame.

14. Right after the if code block that checks whether hit.collider != null, add the following lines of code:

else
{
if (lastNonPlayerCharacter != null)
      	{
       	lastNonPlayerCharacter.dialogueBubble.SetActive(false);
             	lastNonPlayerCharacter = null;
      	}
}

The else statement means that the condition hit.collider != null was not met – in other words, there is no NPC GameObject in front of the PlayerCharacter. In that case, the code checks whether an NPC GameObject was previously stored in the lastNonPlayerCharacter variable. If so, it hides the DialogueBox GameObject and clears the lastNonPlayerCharacter variable.

The entire code block should look like this:

RaycastHit2D hit = Physics2D.Raycast(rigidbody2d.position + Vector2.up * 0.2f, moveDirection, 1.5f, LayerMask.GetMask("NPC"));
if (hit.collider != null)
{
NonPlayerCharacter npc = hit.collider.GetComponent<NonPlayerCharacter>();
npc.dialogueBubble.SetActive(true);
lastNonPlayerCharacter = npc;
FindFriend();
}
else
{
if (lastNonPlayerCharacter != null)
{
         	lastNonPlayerCharacter.dialogueBubble.SetActive(false);
             	lastNonPlayerCharacter = null;
  }
}

Medium: Add a second NPC with a unique dialogue

One NPC is great, but two are even better! Add a second NPC to your scene and give them something different to say than the first NPC. To accomplish this task, you should do the following:

• Make the text displayed a parameter of the DisplayDialogue function. (You’ll need to retrieve the Label child element of the DialogueWindow to change it!)
• Make the text a public property of the NonPlayerCharacter script.

By making the text a public property, you can write whatever you like for each individual NPC.

Take a moment to check that your script is correct before continuing.

PlayerController.cs

Important: This script includes the instruction to implement the optional UI added to display de controls to talk with the NPC, added in the Medium: Add a controls UI challenge, but does not contain code for any additional extension work.

using UnityEngine;
using UnityEngine.InputSystem;

public class PlayerController : MonoBehaviour
{

    	// Variables related to player character movement
    	public InputAction MoveAction;
    	Rigidbody2D rigidbody2d;
    	Vector2 move;
    	public float speed = 3.0f;

    	// Variables related to the health system
    	public int maxHealth = 5;
    	public int health { get { return currentHealth; } }
    	int currentHealth;

    	// Variables related to temporary invincibility
    	public float timeInvincible = 2.0f;
    	bool isInvincible;
    	float damageCooldown;

    	// Variables related to Animation
    	Animator animator;
    	Vector2 moveDirection = new Vector2(1, 0);

    	// Variables related to Projectile
    	public GameObject projectilePrefab;
    	public InputAction LaunchAction;

// Variables related to NPC
private NonPlayerCharacter lastNonPlayerCharacter;


    	// Start is called once before the first execution of Update after the MonoBehaviour is created
    	void Start()
    	{
        	MoveAction.Enable();
 		LaunchAction.Enable();
 		TalkAction.Enable();
        	rigidbody2d = GetComponent<Rigidbody2D>();
        	currentHealth = maxHealth;
        	animator = GetComponent<Animator>();
    	}

    	// Update is called once per frame
    	void Update()
    	{
        	move = MoveAction.ReadValue<Vector2>();

        	if (!Mathf.Approximately(move.x, 0.0f) || !Mathf.Approximately(move.y, 0.0f))
        	{
            		moveDirection.Set(move.x, move.y);
            		moveDirection.Normalize();

        	}

        	animator.SetFloat("Look X", moveDirection.x);
        	animator.SetFloat("Look Y", moveDirection.y);
        	animator.SetFloat("Speed", move.magnitude);

        	if (isInvincible)
        	{
            		damageCooldown -= Time.deltaTime;
            		if (damageCooldown < 0)
            		{
                		isInvincible = false;
            		}
        	}

if (LaunchAction.WasPressedThisFrame())
       	{
           		Launch();
       	}

		// NPC raycast detection
       	RaycastHit2D hit = Physics2D.Raycast(rigidbody2d.position + Vector2.up * 0.2f, moveDirection, 1.5f, LayerMask.GetMask("NPC"));
       	if (hit.collider != null)
       	{
			NonPlayerCharacter npc = hit.collider.GetComponent<NonPlayerCharacter>();
npc.dialogueBubble.SetActive(true);
lastNonPlayerCharacter = npc;
           		FindFriend(hit);
       	}
else
{
if (lastNonPlayerCharacter != null)
{
         			lastNonPlayerCharacter.dialogueBubble.SetActive(false);
             			lastNonPlayerCharacter = null;
}
}

    	}

    	// FixedUpdate has the same call rate as the physics system
    	void FixedUpdate()
    	{
        	Vector2 position = (Vector2)rigidbody2d.position + move * speed * Time.deltaTime;
        	rigidbody2d.MovePosition(position);
    	}


    	public void ChangeHealth(int amount)
    	{
        	if (amount < 0)
        	{
            		if (isInvincible)
            		{
                		return;
            		}
            		isInvincible = true;
            		damageCooldown = timeInvincible;
            		animator.SetTrigger("Hit");
        	}
        	currentHealth = Mathf.Clamp(currentHealth + amount, 0, maxHealth);
        	UIHandler.instance.SetHealthValue(currentHealth / (float)maxHealth);
    	}

    	void Launch()
    	{
        	GameObject projectileObject = Instantiate(projectilePrefab, rigidbody2d.position + Vector2.up * 0.5f, Quaternion.identity);
        	Projectile projectile = projectileObject.GetComponent<Projectile>();
        	projectile.Launch(moveDirection, 300);
        	animator.SetTrigger("Launch");
    	}

    	void FindFriend()
    	{
       	if (TalkAction.WasPressedThisFrame())
       	{
           		UIHandler.instance.DisplayDialogue();
       	}
   	}
}

UIHandler.cs

using UnityEngine;
using UnityEngine.UIElements;

public class UIHandler : MonoBehaviour
{
   	private VisualElement m_Healthbar;
   	public static UIHandler instance { get; private set; }

   	// UI dialogue window variables
   	public float displayTime = 4.0f;
   	private VisualElement m_NonPlayerDialogue;
   	private float m_TimerDisplay;

   	// Awake is called when the script instance is being loaded (in this situation, when the game scene loads)
   	void Awake()
   	{
       	instance = this;
   	}

   	// Start is called once before the first execution of Update after the MonoBehaviour is created
   	void Start()
   	{
       	UIDocument uiDocument = GetComponent<UIDocument>();
       	m_Healthbar = uiDocument.rootVisualElement.Q<VisualElement>("HealthBar");
       	SetHealthValue(1.0f);
       	m_NonPlayerDialogue = uiDocument.rootVisualElement.Q<VisualElement>("NPCDialogue");
       	m_NonPlayerDialogue.style.display = DisplayStyle.None;
       	m_TimerDisplay = -1.0f;
   	}

   	public void SetHealthValue(float percentage)
   	{
       	m_Healthbar.style.width = Length.Percent(100 * percentage);

   	}

   	private void Update()
   	{
       	if (m_TimerDisplay > 0)
       	{
           		m_TimerDisplay -= Time.deltaTime;
           		if (m_TimerDisplay < 0)
           		{
               		m_NonPlayerDialogue.style.display = DisplayStyle.None;
           		}
       	}
   	}

   	public void DisplayDialogue()
   	{
   		m_NonPlayerDialogue.style.display = DisplayStyle.Flex;
   		m_TimerDisplay = displayTime;
   	}
}

NonPlayerCharacter.cs

Important: This script includes the instruction to implement the optional UI added to display de controls to talk with the NPC, added in the Medium: Add a controls UI challenge, but does not contain code for any additional extension work.

using UnityEngine;

public class NonPlayerCharacter : MonoBehaviour
{
public GameObject dialogueBubble;

void Start()
{
dialogueBubble.SetActive(false);
}
}

You’ve added an NPC that guides the player through the task of completing the level by fixing the robots, making the game’s objective clearer. In the next tutorial, you’ll close the game loop by introducing win and lose conditions, and set up the scene to reload when either occurs.
