In your game, the player can increase their PlayerCharacter’s health up to the maximum level, but there’s currently nothing that can negatively impact that health. In this tutorial, you’ll apply what you’ve previously learned to decrease the PlayerCharacter's health when they enter a damage zone (collide with a particular GameObject). Later in the course, you’ll build on this work to create moving enemies too.

Note: For the purposes of this tutorial, we chose to use the Ruby’s Adventure asset set, and the images used in instructions will reflect this. If you chose another asset set, the file names will be the same, but in your corresponding theme folder.

When you set up the health collectibles, you set the PlayerCharacter's currentHealth value to 1 at game launch. To update your script so the PlayerCharacter GameObject starts the game with full health, follow these instructions:

1. Open the PlayerController script in your IDE.

2. At the top of the script, find the variable declaration for currentHealth, and update the declaration so it no longer sets the variable to 1:

int currentHealth;

3. In the Start function, remove the double slashes from the instruction to set currentHealth to the maxHealth value when the game launches:

currentHealth = maxHealth;

The Start function will now execute this instruction when it runs.

4. Save your changes.

You’ve encountered a challenge!

Throughout this course, you’ll find a few challenges where you’re encouraged to try writing the code on your own. But don’t worry – if you want to make sure you did it correctly, you can review the script later in the step.

• You’ve already set up HealthCollectible GameObjects to increase the PlayerCharacter’s health on collision – now you’ll do the opposite and decrease the PlayerCharacter’s health.

Apply what you’ve learned so far to set up a functioning DamageZone prefab. The damage zone should decrease the player character’s health value by one when the character collides with it.

Check your DamageZone GameObject configuration

Review these high-level instructions to confirm that you’ve set up the damage zone correctly:

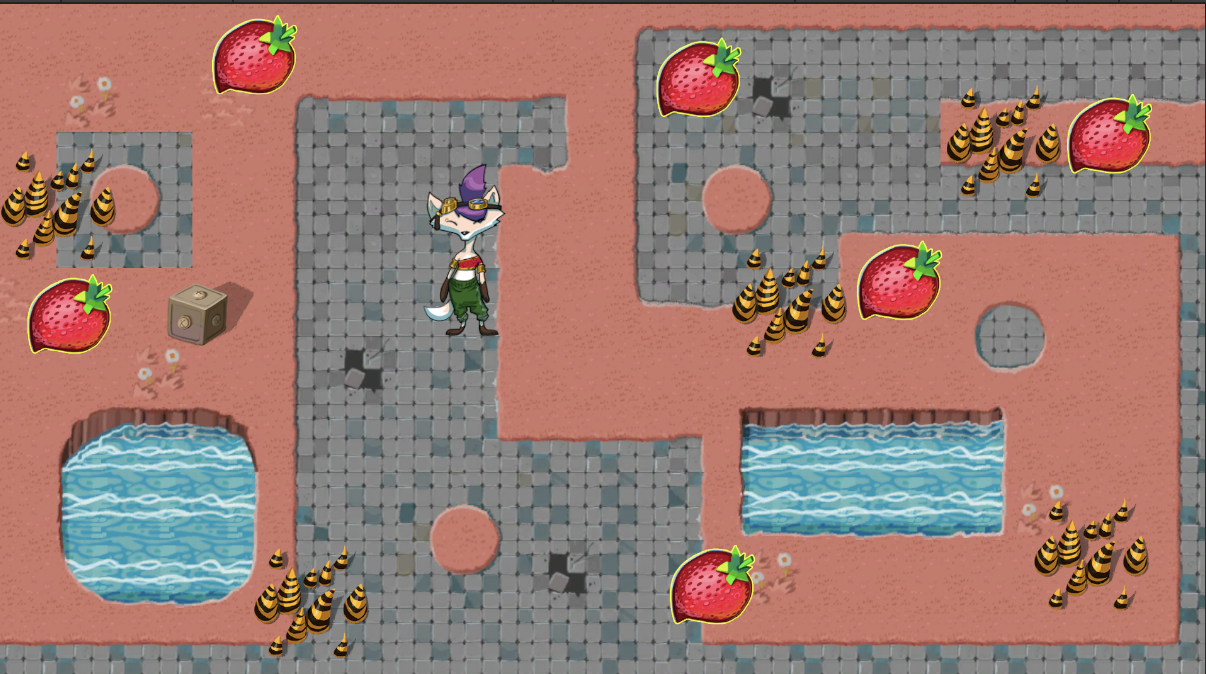

1. Place some instances of the DamageZone prefab you created around your scene.

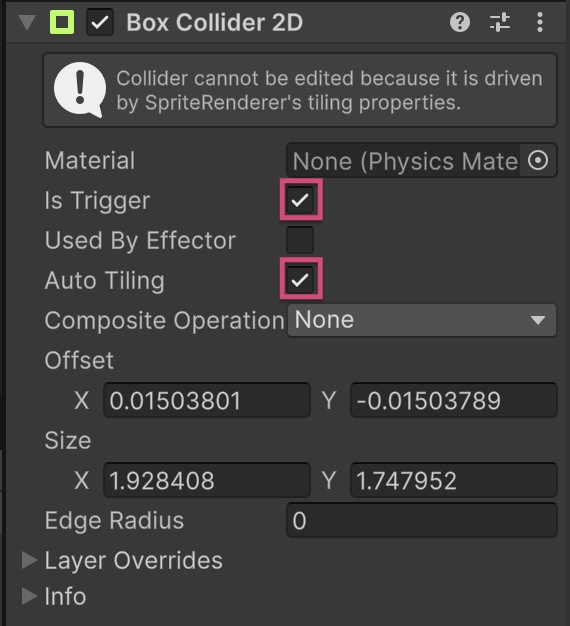

2. In prefab editing mode, make sure you’ve added a Box Collider 2D component to the DamageZone prefab. Then enable the Is Trigger and Auto Tiling properties.

The Auto Tiling property automatically updates the size of the collider to fit the area of the GameObject.

3. Create a new script called “DamageZone” and attach it to the DamageZone GameObject.

4. Copy the HealthCollectible script code and adapt it to decrease the player character’s health instead of increasing it:

using UnityEngine;

public class DamageZone : MonoBehaviour
{
   	void OnTriggerEnter2D(Collider2D other)
   	{
       	PlayerController controller = other.GetComponent<PlayerController>();

       	if (controller != null)
       	{
           		controller.ChangeHealth(-1);
       	}
   	}
}

Here’s an explanation of this code:

• The only condition for the health to decrease is whether the colliding GameObject has a PlayerController script on it.
• Damage zones that disappear immediately wouldn’t be very powerful, so the instruction to destroy the GameObject after collision has been removed.

5. Save your changes and return to the Unity Editor. Test the damage zone to confirm that it decreases the player character’s health on collision.

At the moment, the player character’s health decreases by one when they enter the damage zone (hit its collider), but that’s the only damage the zone does. That approach isn’t very challenging for players – the zone should cause ongoing damage for as long as the player character is within its collider.

To adjust the damage zone functionality, follow these instructions:

1. In your DamageZone script, change the function name from OnTriggerEnter2D to “OnTriggerStay2D”:

void OnTriggerStay2D(Collider2D other)

OnTriggerStay2D is called every frame that the GameObject with the Rigidbody 2D component is inside the collider, not just when it enters. This change means that the damage zone won’t have a one-time impact – the function will continue to be called as long as the player character is in the damage zone.

2. Save your changes, return to the Unity Editor, and test the updated functionality.

You should notice that when the player character enters the DamageZone, its currentHealth gets to zero in less than a second (in five frames, to be precise, unless you have adjusted the maxHealth value in your own project).

Important: Remember to exit Play mode when you’ve finished testing.

3. Open the PlayerCharacter prefab in prefab editing mode.

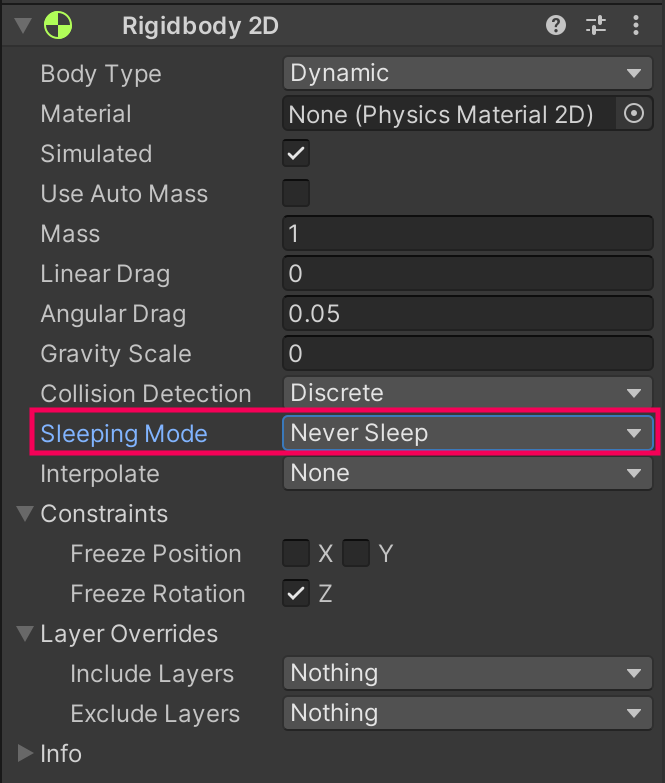

4. In the Rigidbody 2D component, open the Sleeping Mode property dropdown and select Never Sleep.

By default, the physics system stops computing collisions for a GameObject with a Rigidbody component when that GameObject stops moving: the Rigidbody component sleeps. This approach optimizes resources and avoids wasted calculations. However, for the damage zone to work properly, you need that computation to happen even when the PlayerCharacter GameObject is stationary.

5. Exit prefab editing mode.

Your adjustment to make the damage zone more dangerous also means that the player character loses all their health almost immediately. Even if you want to make your game challenging, the current configuration is impossible for a player to overcome.

There are different ways that you can address this issue. In this case, you’ll make the player character invincible after they receive damage for a brief cooldown period to avoid complete loss of health immediately.

To add a damage cooldown period after the player character takes damage, follow these instructions:

1. Open the PlayerController script in your IDE.

2. At the top of the PlayerController class, with the other variable declarations, add the following lines of code:

// Variables related to temporary invincibility
public float timeInvincible = 2.0f;
bool isInvincible;
float damageCooldown;

Here’s an explanation of this code:

• The public float variable timeInvincible controls how long the player character remains invincible after taking damage, measured in seconds. This variable is public, so you can adjust it in the Inspector window.
• The private bool variable isInvincible stores whether the player character is currently invincible.
• The private float variable damageCooldown stores how much time is remaining until the player character is no longer invincible and can take more damage.

3. At the top of the ChangeHealth function, add an if statement that will execute if the player character’s health is currently being decreased:

if (amount < 0)
{
   	if (isInvincible)
   	{
     		return;
   	}
   	isInvincible = true;
   	damageCooldown = timeInvincible;
}

Here’s an explanation of this code:

• The condition for this statement is the amount parameter having a value below zero. The value will be below zero if a health decrease has been made through the ChangeHealth function.
• The nested if statement exits the ChangeHealth function if the player character is already invincible using the return statement. You can use the return statement to end a function early if a particular condition is met.
• The second instruction sets isInvincible to true to avoid further damage during the cooldown period.
• The third instruction sets damageCooldown (the cooldown timer) to the current value for the public timeInvincible variable.

4. At the bottom of the Update function, add the following if statement that will be executed if the player character is currently invincible:

if (isInvincible)
{
    damageCooldown -= Time.deltaTime;
    if (damageCooldown < 0)
    {
       isInvincible = false;
    }
}

Important: Make sure that the if statement and code block are enclosed within the closing brace of the Update function.

Here’s an explanation of this code:

• The condition for this if statement is isInvincible being true – that is, the player character has taken damage since the last time that Update was called (the previous frame).
• The first instruction in the block subtracts (-=) Time.deltaTime from the damageCooldown timer. Time.deltaTime is the interval in seconds from the previous frame to the current one, so the instruction reduces the damageCooldown timer value every frame.
• An if statement follows, with the condition that any instructions in the block after the if statement will only be executed when damageCooldown is less than zero – that is, when the timer countdown has finished.
• The final instruction in the block sets isInvincible to false, meaning that the player character is once again vulnerable to damage after the countdown finishes.

5. Save your changes and return to Unity Editor.

Now that you’ve written the cooldown functionality, test it and adjust the cooldown duration:

1. Enter Play mode and test that the damage cooldown functionality works.

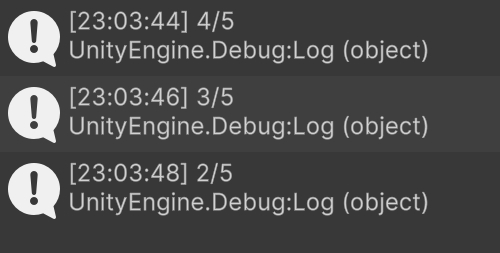

The damage will now reduce the PlayerCharacter’s health at two second intervals while the PlayerCharacter is within the damage zone collider – you can find the notifications of this in the Console window.

2. With your PlayerCharacter GameObject selected, in the Inspector window, locate the PlayerController (script) component and find the exposed Time Invincible property.

3. Adjust the Time Invincible value and test the player experience until you are happy with the damage cooldown time.

4. Exit Play mode and save your changes when you’ve finished testing.

Note: You can always adjust the cooldown again later as you continue to develop your game. You might also find it helpful to get specific user feedback on the damage cooldown period when you’ve created the full 2D Beginner game.

If you want to further develop your skills, explore new concepts, or improve your project, check out some of the optional activities below. Each one is tagged as either Easy, Medium, or Difficult, so you can choose the level of challenge.

These activities are entirely optional, so if you’re not interested, no problem – just skip this step. We do recommend attempting at least one of them in order to get the most out of this learning experience. Good luck!

Easy: Position damage zones to challenge the player

Take some time to experiment with your placement of damage zones and health collectibles within the environment, and consider the fact that you’ll soon add moving enemies too. It’s important to give your players sufficient challenge, but that needs to be balanced – an almost-impossible game probably isn’t your goal here!

Easy: Create an ultra damage zone

In the previous tutorial, we mentioned you could create health collectible variants that increased the PlayerCharacter’s health by different values. You can take a similar approach here by creating prefab variants of the DamageZone and changing the value that the DamageZone script passes to the ChangeHealth function.

Medium: Create a slow healing zone

If you want to practice applying what you’ve learned in this unit, you can configure slow healing zones that increase the PlayerCharacter’s health using the same principle as the damage zones. You know everything that you need to implement this functionality.

Take a moment to check that your scripts are correct before continuing.

PlayerController.cs

Important: If you completed any extension work in your script, this will not be reflected in the reference script below.

using UnityEngine;
using UnityEngine.InputSystem;

public class PlayerController : MonoBehaviour
{
    // Variables related to player character movement
    public InputAction MoveAction;
    Rigidbody2D rigidbody2d;
    Vector2 move;
    public float speed = 3.0f;

    // Variables related to the health system
    public int maxHealth = 5;
    public int health { get { return currentHealth; } }
    int currentHealth;

    // Variables related to temporary invincibility
    public float timeInvincible = 2.0f;
    bool isInvincible;
    float damageCooldown;

    // Start is called once before the first execution of Update after the MonoBehaviour is created

    void Start()
    {
        MoveAction.Enable();
        rigidbody2d = GetComponent<Rigidbody2D>();
        currentHealth = maxHealth;
    }

    // Update is called once per frame
    void Update()
    {
        move = MoveAction.ReadValue<Vector2>();
        //Debug.Log(move);
        if (isInvincible)
        {
            damageCooldown -= Time.deltaTime;
            if (damageCooldown < 0)
            {
                isInvincible = false;
            }
        }
    }

    // FixedUpdate has the same call rate as the physics system
    void FixedUpdate()
    {
        Vector2 position = (Vector2)rigidbody2d.position + move * speed * Time.deltaTime;
        rigidbody2d.MovePosition(position);
    }

    public void ChangeHealth(int amount)
    {
        if (amount < 0)
        {
            if (isInvincible)
            {
                return;
            }
            isInvincible = true;
            damageCooldown = timeInvincible;
        }

        currentHealth = Mathf.Clamp(currentHealth + amount, 0, maxHealth);
        Debug.Log(currentHealth + "/" + maxHealth);
    }
}

DamageZone.cs

using UnityEngine;

public class DamageZone : MonoBehaviour
{
   	void OnTriggerStay2D(Collider2D other)
   	{
       	PlayerController controller = other.GetComponent<PlayerController>();

       	if (controller != null)
       	{
           		controller.ChangeHealth(-1);
       	}
   	}
}

HealthCollectible.cs

using UnityEngine;

public class HealthCollectible : MonoBehaviour
{
void OnTriggerEnter2D(Collider2D other)
    	{
       	PlayerController controller = other.GetComponent<PlayerController>();

        	if (controller != null && controller.health < controller.maxHealth)
        	{
            		controller.ChangeHealth(1);
            		Destroy(gameObject);
        	}
    	}
}

The player character has a fully-functional health system, and can both take and heal damage. However, at the moment, the player has no way of knowing what their health level is – you’ve been using the Console window as you test, but that won’t help your player. In the next unit, you’ll create a heads-up display (HUD) and configure it to show the player character’s health level.
