Your game is still missing an important feature: audio. For creators working on a game, audio is a critical design element: it can help players connect with your game and create a more immersive and engaging experience. We’ve included different audio clips for you to implement in your 2D adventure game, but don’t be afraid to find your own assets and customize the experience even further!

Note: For the purposes of this tutorial, we chose to use the Ruby’s Adventure asset set, and the images used in instructions will reflect this. If you chose another asset set, the file names will be the same, but in your corresponding theme folder.

The first type of audio you’ll add is background music that will play on loop while the game is running. We’ve provided one single audio clip for you to use, but you can replace this with audio assets that you’ve sourced yourself if you like!

Important: If you find your own audio assets in the Unity Asset Store or elsewhere, make sure that you follow the terms of the license, you can learn more about licenses in the Copyright for creators tutorial.

Important: This tutorial will guide you through setting up basic audio in your 2D project. However, if you haven’t done any audio work before and want a more detailed course, we recommend taking the Creative Core Pathway: Audio course.

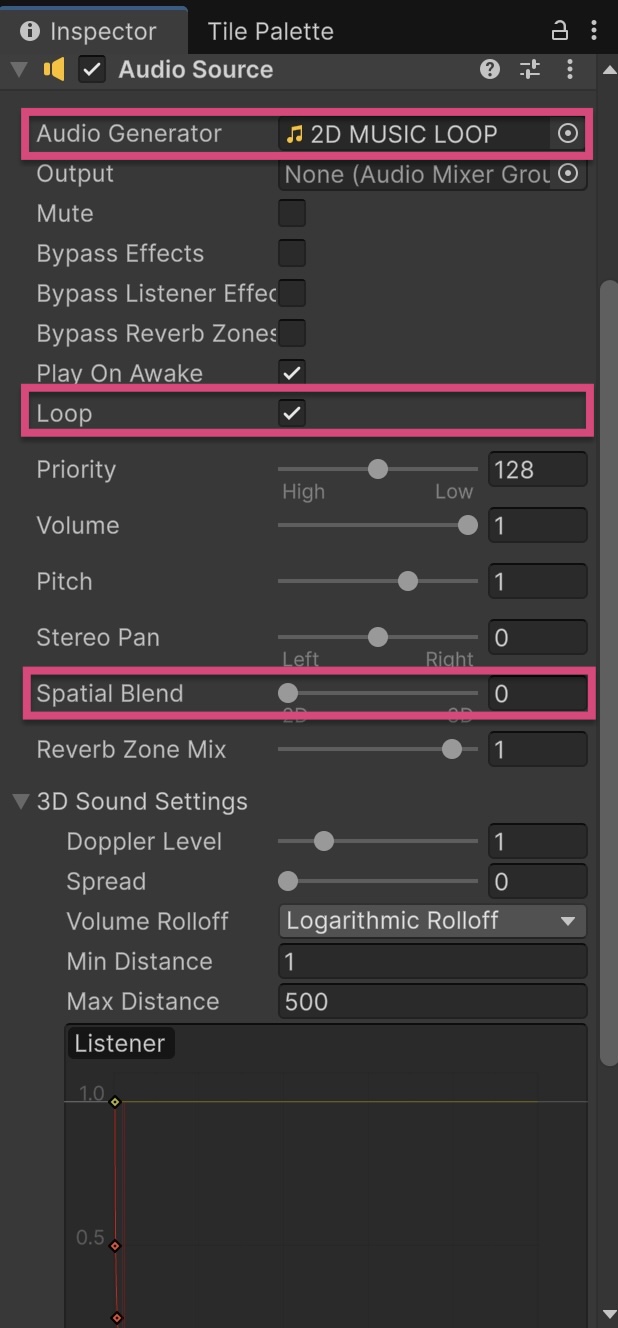

To set up the background audio for your game, follow these instructions:

1. Right-click in the Hierarchy window and select Audio > Audio Source to create a new Audio Source GameObject, and rename it “BackgroundMusic”.

2. In the Project window, navigate to Assets > _2D AdventureGame > Audio and locate the 2D MUSIC LOOP asset.

3. Click and drag the 2D MUSIC LOOP asset from the Project window in the Audio Source component’s Audio Generator property box.

4. Enable the Loop property.

5. Check that the Spatial Blend property is set to 2D (0).

The Spatial Blend property defines whether the audio clip is spatialized: whether it plays at different volumes or from different speakers based on the listener’s location, giving a realistic sense of sound in space. The Main Camera GameObject in your project already has an Audio Listener component, which will pick up the sounds in the scene. When the Spatial Blend property of an Audio Source component is set to 2D, the sound isn’t spatialized and will play at the same volume no matter where the Audio Listener component is in relation to the Audio Source component.

6. Save your changes and test the game.

The audio will start to play as soon as the game launches.

Important: If you don’t hear any audio when you test and your hardware is switched on, check the Game view tools to confirm that audio is enabled.

There are other elements and events in your game that you could add sound effects to; for example, the player character’s walking sound while moving or an audio feedback when picking up a health collectable. The easiest way to play a sound once is to use a PlayOneShot function.

The PlayOneShot function is applied to an Audio Source component and uses an audio clip as its parameter. Then, it will play the clip once.

To set up the PlayOneShot function to play a certain audio clip once, follow these instructions:

1. Add an Audio Source component to the PlayerCharacter GameObject.

Important: Because the PlayerCharacter GameObject is a prefab, make sure to add this component in prefab editing mode.

2. Open the PlayerController script in your IDE.

3. At the top of the class, declare a new private variable to contain a reference to the Audio Source component:

AudioSource audioSource;

4. In the Start function, store the Audio Source component reference in the variable:

audioSource = GetComponent<AudioSource>();

5. Create a new public function called PlaySound, with an AudioClip parameter and the following instruction inside:

public void PlaySound(AudioClip clip)
{
audioSource.PlayOneShot(clip);
}

When this function is called, it executes the PlayOneShot method to play the audio clip that was provided as its parameter.

6. Save your changes.

You’ve created a function to call PlayOneShot, but at the moment there are no sound effects implemented for it to play.

To add a sound effect when the player picks up a collectible, follow these instructions:

1. Open the HealthCollectible script in your IDE.

2. At the top of the class, declare a new public AudioClip variable:

public AudioClip collectedClip;

3. Inside the OnTriggerEnter2D function, find the if statement and, within that code block, call the PlaySound function on the PlayerController to play the sound:

controller.PlaySound(collectedClip);

You might wonder why you’re using the PlayerCharacter GameObject’s Audio Source component instead of the one of the Collectible GameObject.The Collectible GameObject is destroyed when the PlayerCharacter GameObject meets the conditions for collecting it, thus the Audio Source component would also be destroyed, which would stop the sound from being played.

4. Save your changes.

5. In the Unity Editor, open the Collectible GameObject in prefab editing mode.

6. In the Project window, navigate to the Assets > _2DAdventureGame > Audio folder.

7. Assign the Collectible audio asset to the Collected Clip property in the Health Collectible (Script) component.

8. Save your changes and test your game.

Now each time the player character picks up a collectible, a sound effect will play.

Note: If you find the sounds too loud, you can reduce the volume in the PlayerCharacter GameObject’s and/or BackgroundMusic GameObject’s Audio Source component.

So far you’ve used 2D sound because the background audio and collectible pickup sound are not spatialized. However, next you’ll implement audio for the Enemy’s movement. This sound is very much part of the game world because the player character would be able to hear it get louder or quieter as they move around the environment.

To implement audio for the enemy character’s movement, follow these instructions:

1. Open the Enemy GameObject in prefab editing mode and add an Audio Source component to it.

2. Assign the EnemyWalk asset to its Audio Generator property box.

3. Enable the Loop property.

4. Set Spatial Blend property to 3D (1). In the Scene view, a blue circle will now surround the speaker icon of the Enemy GameObject.

This circle represents the minimum distance of the spatial blend. If the GameObject with the Audio Listener component is inside that circle, it will hear the Audio Source’s sound at the maximum volume. Once the GameObject with the Audio Listener component is outside of the circle, the volume will slowly attenuate (reduce) until the Audio Listener component reaches the maximum distance, where it will be silent.

5. In the Scene view, zoom out until the circle that represents the maximum distance is displayed.

You’ll need to zoom out a lot!

This distance is larger than your entire game world, so you’ll need to adjust it to a more reasonable size. You can drag the dot in the center of the circle, but it’s easier to make the adjustment directly in the values of the Inspector window.

6. In the Inspector window, if the 3D Sound Settings section is collapsed, use the foldout (triangle) to expand it.

You can use the Volume Rolloff property to choose between three different methods of audio attenuation:

• Logarithmic Rolloff: The default, which mimics the way that sound behaves in the real world. A visualization of this audio reduction curve is currently displayed in the Listener preview pane.
• Linear: The sound is reduced in a straight line rather than a curved rolloff.
• Custom: Used for different custom rolloff curves to achieve specific effects.

7. Open the Volume Rolloff property dropdown and select either Logarithmic Rolloff or Linear.

Because you’re working at a very small distance, either Logarithmic Rolloff or Linear Rolloff will give similar results.

8. Set the Max Distance property to 10.

9. Save your changes and exit prefab editing mode.

If you test the game now, the attenuations won’t work just yet because the Spacial Blend setting is made for 3D. The circles that represent the distances are actually spheres, which are displayed if you turn the Scene view back to 3D mode.

The camera sits slightly above your whole game. This means that even if an Enemy GameObject is in the center of the screen and the camera is directly above, the Audio Listener component on the camera is still located over the Max Distance from the Audio Source component and the volume is totally muted.

You need to place the Audio Listener component at the same depth as the rest of the GameObjects (Z = 0) to address the attenuation issue, but if you set the Main Camera GameObject to that position, you’ll break the rendering for your game. Instead, you’ll create a child GameObject for the Main Camera GameObject; this child GameObject will move with the Main Camera GameObject and be in the center of the screen, but will be located higher in the Z-axis.

To fix the attenuation for your game, follow these instructions:

1. In the Hierarchy window, right-click the Main Camera GameObject, select Create Empty, and name the new child GameObject “Listener”.

2. Select the Listener GameObject.

3. In the Inspector window, add an Audio Listener component.

4. In the Transform component, set the Position property values to the following values:

• X = 0
• Y = 0
• Z = 10

The position of a child GameObject is relative to the parent GameObject; these position values place the Listener GameObject 10 units in front of the Main Camera GameObject. As the camera is 10 units back from the plane for your game, this places the Listener GameObject at Z = 0, just what you needed.

5. In the Hierarchy window, select the Main Camera GameObject.

6. In the Inspector window, right-click the Audio Listener component and select Remove Component.

7. Save your changes.

Now, when you test your game, the walking sounds for the enemy will be spatialized through your speakers and attenuated depending on the player character’s location.

If you want to further develop your skills, explore new concepts, or improve your project, check out some of the optional activities below. Each one is tagged as either Easy, Medium, or Difficult, so you can choose the level of challenge.

These activities are entirely optional, so if you’re not interested, no problem – just skip this step. We do recommend attempting at least one of them in order to get the most out of this learning experience. Good luck!

Easy: Stop enemy audio when its state changes

The enemy audio only makes sense when the enemy is walking around; when the player fixes it and the enemy stops moving, this audio is no longer needed.

To stop the audio, you’ll need to do the following things in the EnemyController script:

• Create a new variable of type AudioSource to store a reference to the component.
• In the Start function, use GetComponent to retrieve the reference and store it in your variable.
• In the Fix function, call the audioSource.Stop() function.

Medium: Additional one-shot sound effects

We’ve provided a range of sound effects that you can implement for the following things:

• When the PlayerCharacter walks (PlayerWalk.wav).
• When the PlayerCharacter throws a projectile (Projectile.wav).
• When the PlayerCharacter takes damage (PlayerHit.wav).
• When the PlayerCharacter fixes an enemy with a cog (EnemyFix.wav, EnemyHit1.wav or EnemyHit2.wav).

Adding all of these sounds to your game would make it sound very busy, so take some time to consider which ones are the best for the specific experience you’re crafting. You can also find your own sound assets to achieve this!

For each one-shot sound effect that you implement, remember to do the following:

• Add an Audio Clip variable to the script for the GameObject that is the in-game source of the sound. For example, effects for when the player character is hit or throws a projectile should be added to the PlayerController script.

Call PlayOneShot on the Audio Source component at the relevant code for the action with which you are associating the sound effect.

PlayerController.cs

Important: If you completed any extension work in your script beyond exposing the variable that controls movement speed, this will not be reflected in the reference script below.

using UnityEngine;
using UnityEngine.InputSystem;

public class PlayerController : MonoBehaviour
{

    	// Variables related to player character movement
    	public InputAction MoveAction;
    	Rigidbody2D rigidbody2d;
    	Vector2 move;
    	public float speed = 3.0f;

    	// Variables related to the health system
    	public int maxHealth = 5;
    	public int health { get { return currentHealth; } }
    	int currentHealth;

    	// Variables related to temporary invincibility
    	public float timeInvincible = 2.0f;
    	bool isInvincible;
    	float damageCooldown;

    	// Variables related to Animation
    	Animator animator;
    	Vector2 moveDirection = new Vector2(1, 0);
    	public InputAction TalkAction;

    	// Variables related to Projectile
    	public GameObject projectilePrefab;
    	public InputAction LaunchAction;

// Variables related to NPC
private NonPlayerCharacter lastNonPlayerCharacter;

    	// Variables related to audio
    	AudioSource audioSource;

    	// Start is called before the first frame update
    	void Start()
    	{
        	MoveAction.Enable();
	 	LaunchAction.Enable();
	 	TalkAction.Enable();
        	rigidbody2d = GetComponent<Rigidbody2D>();
        	currentHealth = maxHealth;
        	animator = GetComponent<Animator>();
        	audioSource = GetComponent<AudioSource>();

    	}

    	// Update is called once per frame
    	void Update()
    	{
        	move = MoveAction.ReadValue<Vector2>();

        	if (!Mathf.Approximately(move.x, 0.0f) || !Mathf.Approximately(move.y, 0.0f))
        	{
            		moveDirection.Set(move.x, move.y);
            		moveDirection.Normalize();
        	}

        	animator.SetFloat("Look X", moveDirection.x);
        	animator.SetFloat("Look Y", moveDirection.y);
        	animator.SetFloat("Speed", move.magnitude);


        	if (isInvincible)
        	{
            		damageCooldown -= Time.deltaTime;
            		if (damageCooldown < 0)
            		{
                		isInvincible = false;
            		}
        	}

        	if (LaunchAction.WasPressedThisFrame())
       	{
           		Launch();
       	}


       	// NPC raycast detection
       	RaycastHit2D hit = Physics2D.Raycast(rigidbody2d.position + Vector2.up * 0.2f, moveDirection, 1.5f, LayerMask.GetMask("NPC"));
       	if (hit.collider != null)
       	{
			NonPlayerCharacter npc = hit.collider.GetComponent<NonPlayerCharacter>();
npc.dialogueBubble.SetActive(true);
lastNonPlayerCharacter = npc;
           		FindFriend(hit);
       	}
else
{
if (lastNonPlayerCharacter != null)
{
         			lastNonPlayerCharacter.dialogueBubble.SetActive(false);
             			lastNonPlayerCharacter = null;
}
}

    	}


    	// FixedUpdate has the same call rate as the physics system
    	void FixedUpdate()
    	{
        	Vector2 position = (Vector2)rigidbody2d.position + move * speed * Time.deltaTime;
        	rigidbody2d.MovePosition(position);
    	}


    	public void ChangeHealth(int amount)
    	{
        	if (amount < 0)
        	{
            		if (isInvincible)
            		{
                		return;
            		}
            		isInvincible = true;
            		damageCooldown = timeInvincible;
            		animator.SetTrigger("Hit");
        	}
        	currentHealth = Mathf.Clamp(currentHealth + amount, 0, maxHealth);
        	UIHandler.instance.SetHealthValue(currentHealth / (float)maxHealth);
    	}

    	void Launch()
    	{
        	GameObject projectileObject = Instantiate(projectilePrefab, rigidbody2d.position + Vector2.up * 0.5f, Quaternion.identity);
        	Projectile projectile = projectileObject.GetComponent<Projectile>();
        	projectile.Launch(moveDirection, 300);
        	animator.SetTrigger("Launch");
    	}

    	void FindFriend(RaycastHit2D hit)
   	{
       	if (TalkAction.WasPressedThisFrame())
       	{
           	UIHandler.instance.DisplayDialogue();
       	}
   	}


    	public void PlaySound(AudioClip clip)
    	{
        	audioSource.PlayOneShot(clip);
    	}
}

HealthCollectible.cs

using UnityEngine;

public class HealthCollectible : MonoBehaviour
{
   	public AudioClip collectedClip;
   	void OnTriggerEnter2D(Collider2D other)
   	{
       	PlayerController controller = other.GetComponent<PlayerController>();

       	if (controller != null && controller.health< controller.maxHealth)
       	{
           		controller.PlaySound(collectedClip);
           		controller.ChangeHealth(1);
           		Destroy(gameObject);
       	}
   	}
}

Audio makes a significant contribution to the player’s experience of your game. In this tutorial, you’ve enhanced the world that you created. In the next tutorial, you’ll continue to polish your game by improving the game visuals with 2D particle effects.
